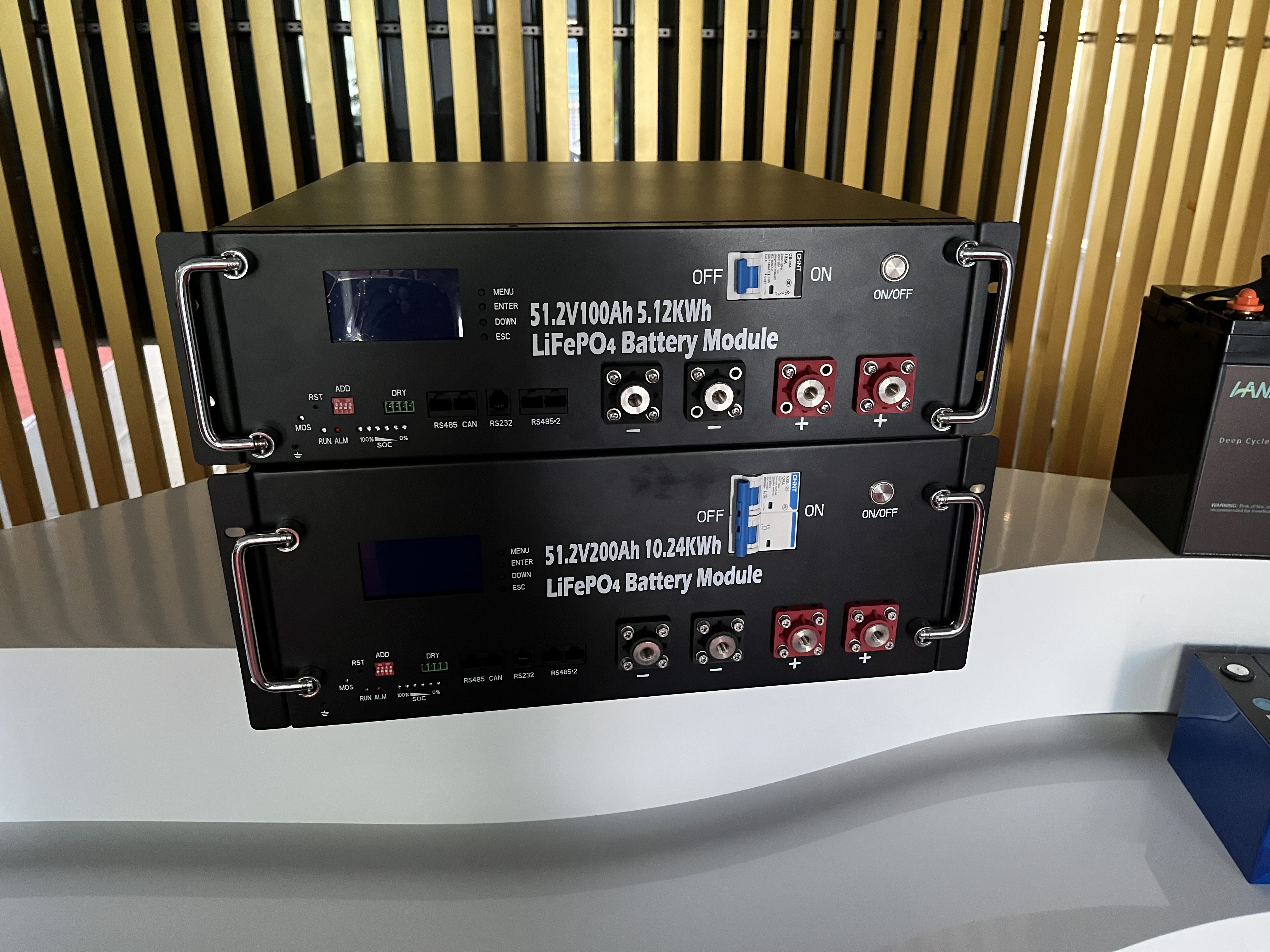

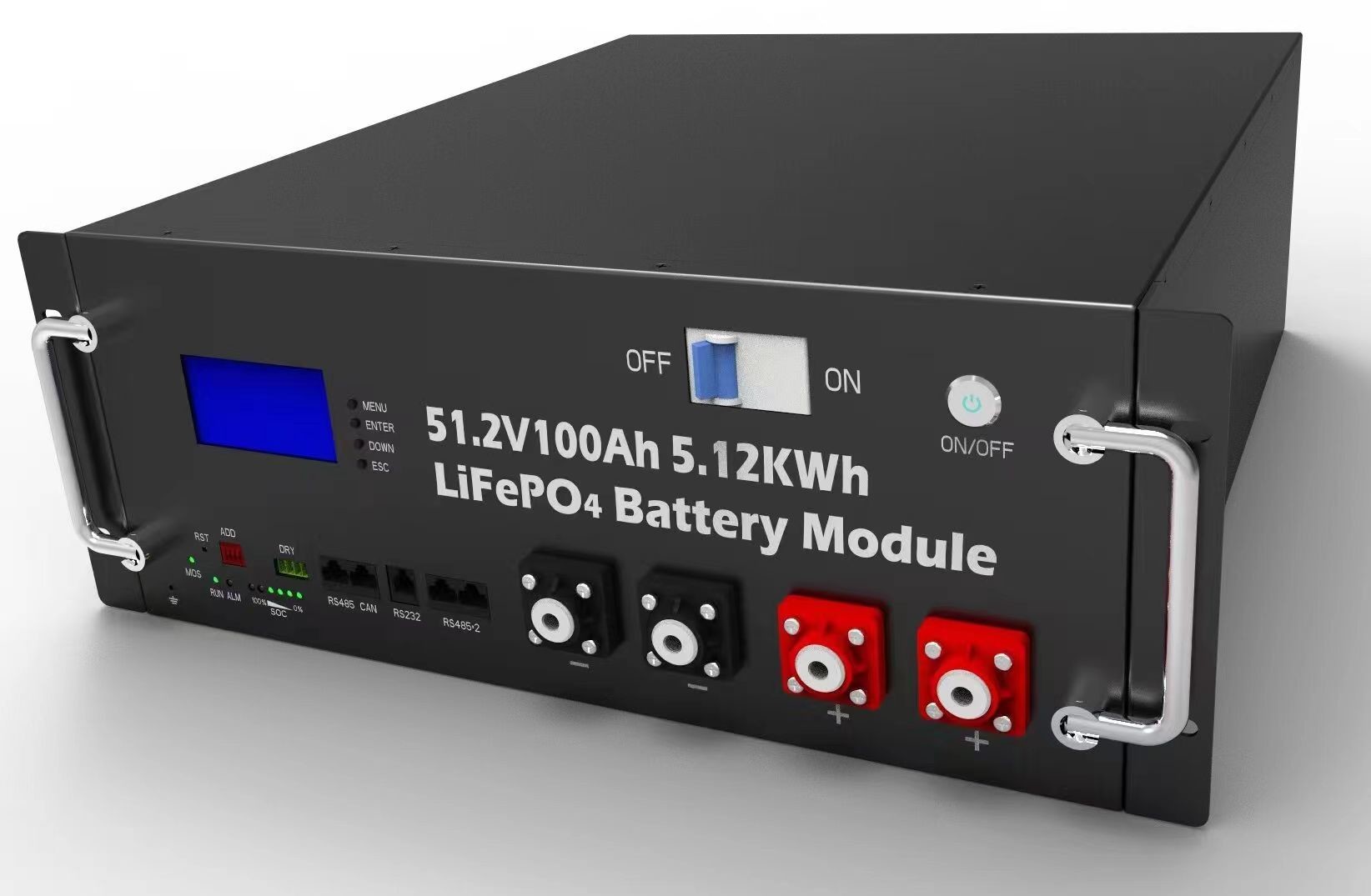

Durable 48v Lifepo4 Battery Pack Reliable Lightweight 100Ah

Durable 48v Lifepo4 Battery Pack Reliable Lightweight 100Ah

48v lifepo4 battery pack Lightweight

100Ah 48v lifepo4 battery pack

Lightweight 48v lifepo4 battery

Place of Origin:

China

Brand Name:

OEM

Certification:

CE, UN38.3, MSDS

Model Number:

LFP24-100

Contact Us
Request A Quote
Product Details
Battery Type:
LiFePO4
Max Discharge Current:
100A
Cycle Life:
5000 Times
Capacity:
100Ah
Warranty:
5 Year
Max Charge Current:
100A
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, pallet
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000pcs per month
Product Description

Product Description:

Solar Energy Storage System 48V 100Ah Telecom Base Station Backup LiFePO4 Battery

Lithium LiFePO4 Battery Pack 100Ah 150Ah 200Ah



At our manufacturing facilities in China, we specialize in producing top-of-the-range solar batteries that are designed to meet the power needs of industrial, commercial, and residential applications. We are a leading manufacturer of high-tech, high-performance LiFePO4 batteries based in China. We are proud to present our latest product, 48V 100Ah LiFePO4 Battery, which is perfect for use in a wide range of applications. This product is a perfect blend of cutting-edge technology and superior quality, making it an excellent choice for merchants looking to stock the latest and greatest products.



Features:



1. Cells cycle times 5000 cycles(+25%C 0.5C 85% DOD)

2. Long lifespan: 5 years warranty, 10 years life design
3. 4U rack-mount chassis design is easy for parallel expansion and maintenance
4. Smart BMS system to optimize the performance
5. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
6. All around protection: such as SOC/SOH/ Anti-theft function etc
7. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
8. Maximum of 16 battery packs can be connected in parallel
9. With front display to know effectively the status of the batteries

10.Communicate with mainstream inverter: Growatt/Voltronic/GOODWE/Pylontech/Kstar/MUST etc.



Technical Parameters:

Product Specification:



Model LR25.6-100 LR48-100 LR51.2-100 LR48-200 LR51.2-200
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
Battery Model 25.6V100AH 48V100AH 51.2V 100AH 48V200AH 51.2V200AH
Nominal Capacity(25 ,0.2C)WH 2560Wh 4800Wh 5120Wh 9600Wh 10240Wh
Adjustable Working Volltage(Vdc) 22.429.2V 37.5-53.25V 40-56.8V 37.553.25V 4056.8V
Max Charge Voltage(Vdc) 28V 54.75V 58.4V 54.75V 58.4V
Max Continuous Discharge Current(A) 100A 100A 100A 200A 200A
Max Pulse Dischange Curent(A) 150A 150A 150A 250A 250A
Max Continuous Charge Curent(A) 100A 100A 100A 200A 200A
Cycle Life(25C 0.2C 80%DOD) >5000 Cycles >5000 Cycles >5000 Cycles >5000 Cycles >5000 Cycles
Terminal M8
Storage Duration 6 months at 25
Safety Standard UN38.3/MSDS/CE
Communication Function RS485/CAN(Standard)
Communication with Mainstream Inverter Growatt/Victron/GOODWE/Pylontech/MUST etc.
Protection Overcharge protection/Over discharge protection/Over current protection/ Short circuit protection/ Over temperature protection
W*H*D(Product Size)mm L444*W482*H178 L516*W482*H132.5 L516*W482*H132.5 L551*W482*H132.5 L846*W482*H177
Net Weight(Kg) 27.1 42.8 44.8 84.3 88.3





Applications:

◆ UPS
◆ Solar & Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw
◆ Lighting



High Capacity 12V LiFePO4 Battery for Lead Acid Replacement 0

Support and Services:

We offer technical support and services for LiFePO4 Battery Pack, including:

  • Assist with product selection and application
  • Product installation and troubleshooting
  • Product testing and evaluation
  • Product customization
  • Product repair and maintenance



  FAQ:

1). Are the batteries GRADE-A,Brand NEW?

Yes, GRADE A + quality. the QR code is intact, Brand new.



2). Are the batteries come with busbars+bolts?

The price come with Bus bars and Bolts , One Battery will come with one set bus bar and bolt ( e.g.,lf buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts ) If need more please contact us online.



3).Can you test each battery PRIOR to shipping?

We will test all the battery Voltage and Internal resistance before shipping.



4.) What kind of the package of the cells?

Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.



Why choose us?

  • Our team of experts can help you choose the best LiFePO4 batteries for your needs.
  • The scale of the company ranks in the forefront of the industry and has become the preferred manufacturer in the Lifepo4 Battery 48v200ah industry, providing high-quality products and services and advanced system solutions.
  • As a supplier and manufacturer, our prices are very competitive.
  • After years of unremitting efforts and the love and support of the majority of users, our company has become the most competitive manufacturer with high-quality products, honest service and quick work efficiency.
  • Our LiFePO4 batteries are designed to deliver high performance in demanding applications.
  • We combine the world's most advanced innovative technology with customer-centric products and services.
  • Our LiFePO4 batteries are interchangeable with many other LiFePO4 batteries on the market.
  • "Bold innovation, originality and excellence" is our unremitting goal.
  • We offer competitive pricing without compromising on quality.
  • The company takes the standardized quality management system as the standard and introduces the international advanced experience.
