Name: Transfer Time ≤10ms Pure Sine Wave Inverter with Over Temperature Protection
Brand: G-TECH
SKU: SL Series
Rating: 4.7 (107 reviews)

Home > products > Pure Sine Wave Line Interactive UPS >

Transfer Time ≤10ms Pure Sine Wave Inverter with Over Temperature Protection

10ms Pure Sine Wave Inverter

Waterproof Pure Sine Wave Inverter

Place of Origin:

China

Brand Name:

G-TECH

Certification:

CE, ISO，SGS

Model Number:

SL Series

Request A Quote

Transfer Time ≤10ms Pure Sine Wave Inverter with Over Temperature Protection

Product Details

Color:

Black

Battery Capacity:

7Ah/ 9Ah/ 12Ah/ 14Ah/ 18Ah/ 24Ah/ 36Ah/ 48Ah

Transfer Time:

≤10ms

Frequency:

50/60Hz

Recharge Time:

≤8h

Waterproof:

GSM

Interface:

USB/RS232/RJ45

Output Voltage:

220V/230V/240V

Payment & Shipping Terms

Minimum Order Quantity

100

Price

negotiation

Packaging Details

carton

Delivery Time

20~25days

Payment Terms

L/C, T/T, Western Union

Supply Ability

200000 pcs per month

Power Factor 0.8 Line Interactive Pure Sine Wave UPS 1KVA~5KVA Tower Type

Get Best Price

Transfer Time ≤10ms Pure Sine Wave Inverter with Over Temperature Protection

Get Best Price

RJ45 Pure Sine Wave Line Interactive Ups For Pc / Atm / Bank Terminal

Get Best Price

High Performance Line Interactive Sine Wave Ups 600va / 800va / 1200va

Get Best Price

Contact Now

Product Description

Product Description:

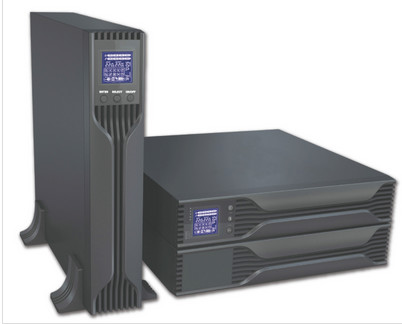

Rack Mount Line-interactive UPS RTL series
Applicable to household PC, office equipment in enterprise and institution; small communication switchboard and server; LAN device; commercial POS machine; small workstation and its peripheral equipment; banking terminal,ATM system and so on.

Capacity: 1kva/ 1.5kva/ 2kva/ 3kva/ 5kva

Battery: customized

Input voltage : 145-275Vac

Output voltage: 200-240Vac

Product ID : RTL-1K

Features:

Product Name: Pure Sine Wave Line Interactive UPS
Battery Capacity: 7Ah/ 9Ah/ 12Ah/ 14Ah/ 18Ah/ 24Ah/ 36Ah/ 48Ah
Input Voltage: 220V/230V/240V
Frequency: 50/60Hz
Transfer Time: ≤10ms
Waveform: Pure Sine Wave
Sine Wave UPS, Line Interactive UPS, Line Interactive Uninterruptible Power Supply

Applicable to household PC, office equipment in enterprise and institution; small communication switchboard and server; LAN device; commercial POS machine; small workstation and its peripheral equipment; banking terminal,ATM system and so on.

Technical Parameters:

MODEL#	RTL-1K	RTL-1KL	RTL-1.5K	RTL-1.5KL	RTL-2K	RTL-2KL	RTL-3K	RTL-3KL	RTL-5K	RTL-5KL
Capacity	1000VA/700W		1500VA/1050W		2000VA/1400W		3000VA/2100W		5000VA/3500W
DISPLAY	G-Sensor automation LCD display
AC MODE
Input voltage	145-275Vac
Input frequency	45-65Hz
Output voltage	200-240Vac
INVERTER MODE
Output voltage	220V±5%
Output frequency	50±1% Hz / 60±1%Hz(Auto sensing)
Power factor	>0.6
Output wave form	Pure Sine Wave
Transfer time	Typical 2-6ms, 10ms max
Overload capability	110% shut down within 60secs. 120% shut down within 5secs.
Overcurrent protection	System shuts down automatically within 20ms
BATTERY
Battery type	Sealed maintenance-free lead-acid batteries
DC voltage	DC 24V				DC 48V				DC 48V
QTY. & capacity of battery	12V/7AHx2	----	12V/9AHx2	----	12V/7AHx4	----	12V/9AHx4	----	12V/9AHx4	----
External DC voltage	----	24VDC	----	24VDC	----	48VDC	----	48VDC	----	48VDC
Charging current	Long back up time models: 5A or 10A(Adjustable)
Charging period	Standard type models:6-8 hours recover to 90% capacity;Long backup time models:Depends on the batteries connected.
PHYSICAL
Net weight(kg)	16.2	13.5	19.2	16	26.6	18.6	28.5	20.5	39	30.8
Dimension(mm)	44144588								441445132
ENVIRONMENT
Environment	Temperature 0℃-40℃, Humidity 20%-90%
Noise level	≤40dB(1m)
Altitude	≤1000 m (Altitude exceeds 1000m, full power cannot reach)
MANAGEMENT
USB & RS232	Optional
BATTERY PACK	12V/7AH×8			12V/9AH×8			12V/9AH×12
Dimension(mm)	441 * 445 * 88						441 * 445 * 132
Net weight(kg)	24.5			27.4			42.6

Applications:

1. Wide range of input voltage

The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)

In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).

Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function

In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection

In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection

When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch

This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging

There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output

Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.

Customization:

G-TECH SL Series Pure Sine Wave Line Interactive Uninterruptible Power Supply is made in China and has a transfer time of ≤10ms. It is waterproof and provides overload protection, short circuit protection, over voltage protection, under voltage protection, and over temperature protection. It also uses lead acid battery for power storage.
