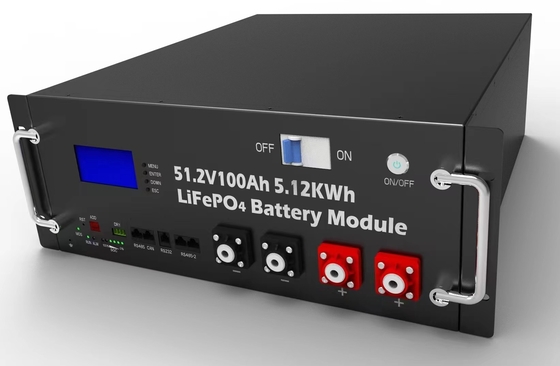

Standard 3U 51.2 V 100Ah Lithium Battery For Power Backup And Inverter

Standard 3U 51.2 V 100Ah Lithium Battery For Power Backup And Inverter

Power Backup 51.2 V 100Ah Lithium Battery

Inverter 51.2 V 100Ah Lithium Battery

Place of Origin:

China

Brand Name:

Gtech

Certification:

CE/UN38.3

Model Number:

LR 51.2-100

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
5 PCS
Price
Negotiation
Packaging Details
Standard Export Battery Package
Delivery Time
Sample: 7 days; Qty order: 20 days
Payment Terms
L/C, T/T
Supply Ability
300 PCS per day
Product Description

Gtech LR 51.2 series Energy Storage Lithium Batteries with the characteristics of long lifespan, high safety, easy maintenance and eco-friendly.





Description:



The LR51.2 series energy storage battery is a smart investment for house, community and commercial purpose. Not only will it provide reliable backup power during times of outages, but it will also help you save money on your energy bills by storing and using energy when it's cheaper. With the characteristics of long lifespan, high safety, and easy maintenance, our 51.2V lithium batteries are widely used for house and community energy storage applications. So, make the switch to the LR series energy storage batteries and start enjoying the benefits of sustainable and reliable power for your energy storage applications!





Features:



Standard 3U compact design

Grade A cell from the top lithium battery manufacturers

Smart BMS with automatic cell equalization and all protections

Humanized visual appearance from APP function

CAN/RS485/Dry contact multi-communication interface

Support Max 32 PCS cascade for large capacity application
Max discharge current 150A for large load purpose
Compatible with multi-brands known inverter
Self-owned factory with no-compromise quality and natural cost advantages
Ideal choice for home energy storage and commercial power back-up.
25.6V/48V/51.2V Available
Flexible OEM/ODM policy





Specification:



Model LR51.2-100
Battery Type LiFePO4
Battery Model 51.2V 100AH
Nominal Capacity(25 ℃,0.2C)WH 5120Wh
Adjustable Working Volltage(Vdc) 40-58.4V
Max Charge Voltage(Vdc) 58.4V
Standard Charge Current(A) 20A
Max Continuous Charge Curent(A) 100A
Standard Discharge Current(A) 20A
Max Continuous Discharge Current(A) 100A
Max Pulse Dischange Curent(A) 150A
Cycle Life >5000 Cycles (25C 0.2C 80%DOD)
Terminal M8
Storage Duration 6 months at 25 ℃
Safety Standard UN38.3/MSDS/CE
Communication Function RS485/CAN/Dry Contact(Standard)
Communication with Mainstream Inverter Growatt/Victron/Goodwe/SMA/Deye/SRNE/Must/Voltronics etc.
Protection Overcharge protection/Over discharge protection/Over current protection/ Short circuit protection/ Over temperature protection
W*H*D(Product Size)mm L516*W482*H132.5
Net Weight(Kg) 44.8







Why Choose Us:



ISO9001, ISO 14001, ISO45001 accredited factory

Automatic lithium battery production line

Professional sales, R&D team and qualified workers

Fast response, timely delivery, reliable products and Factory direct price

Strict quality control from IQC, assembly, process and electric performance tests

Certified with UN 38.3, UL, CE, IEC, CTL, ROHS, Golden Sun authentication





System Topology:







Standard 3U 51.2 V 100Ah Lithium Battery For Power Backup And Inverter 0





Battery for Delivery:





Standard 3U 51.2 V 100Ah Lithium Battery For Power Backup And Inverter 1
