Place of Origin:
China
Brand Name:
Gtech
Certification:
CE/UN38.3
Model Number:
LR 51.2-200

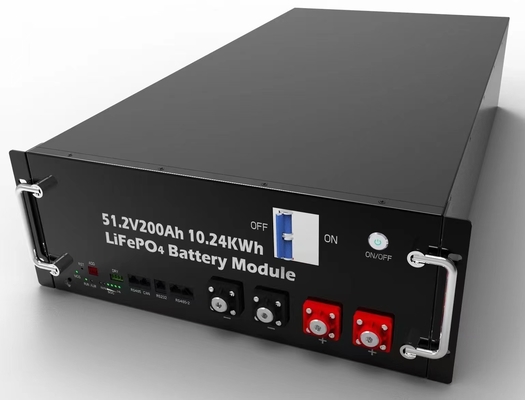

Gtech 51.2V200Ah Rack Type Lithium Batteries with the characteristics of long lifespan, high safety, big power, easy maintenance and eco-friendly.
Description:
The LR51.2 series energy storage battery is a smart investment for house, community and commercial purpose. Not only will it provide reliable backup power during times of outages, but it will also help you save money on your energy bills by storing and using energy when it's cheaper. With the characteristics of long lifespan, high safety, and easy maintenance, our 51.2V200Ah lithium batteries are widely used for house and community energy storage applications which need strong power back-up. So, make the switch to the LR series energy storage batteries and start enjoying the benefits of sustainable and reliable power for your green energy storage journey !
Features:
Standard 4U compact design
Grade A cell from the top lithium battery manufacturers
Smart BMS with automatic cell equalization and all protections
Strong power output for big loads applications
Humanized visual appearance from APP function
CAN/RS485/Dry contact multi-communication interface
Support Max 16 PCS cascade for larger capacity application
Max discharge current 300A for large load purpose
Compatible with multi-brands known inverter and charger
Self-owned factory with no-compromise quality and natural cost advantages
Ideal choice for community and commercial power back-up.
25.6V/48V/51.2V Available
Flexible OEM/ODM policy
Specification:
| Model | LR51.2-200 |
| Battery Type | LiFePO4 |
| Battery Model | 51.2V 200AH |
| Nominal Capacity(25 ℃,0.2C)WH | 10240Wh |
| Adjustable Working Volltage(Vdc) | 40-58.4V |
| Max Charge Voltage(Vdc) | 58.4V |
| Standard Charge Current(A) | 200A |
| Max Continuous Charge Curent(A) | 200A |
| Standard Discharge Current(A) | 40A |
| Max Continuous Discharge Current(A) | 200A |
| Max Pulse Dischange Curent(A) | 300A |
| Cycle Life | >5000 Cycles (25C 0.2C 80%DOD) |
| Terminal | M8 |
| Storage Duration | 6 months at 25 ℃ |
| Safety Standard | UN38.3/MSDS/CE |
| Communication Function | RS485/CAN/Dry Contact(Standard) |
| Communication with Mainstream Inverter | Growatt/Victron/Goodwe/SMA/Deye/SRNE/Must/Voltronics etc. |
| Protection | Overcharge protection/Over discharge protection/Over current protection/ Short circuit protection/ Over temperature protection |
| W*H*D(Product Size)mm | L846*W482*H177 |
| Net Weight(Kg) | 88.3 |
Why Choose Us:
ISO9001, ISO 14001, ISO45001 accredited factory
Automatic lithium battery production line
Professional sales, R&D team and qualified workers
Fast response, timely delivery, reliable products and Factory direct price
Strict quality control from IQC, assembly, process and electric performance tests
Certified with UN 38.3, UL, CE, IEC, CTL, ROHS, Golden Sun authentication
System Topology:
Battery for Delivery:
