True Double Version Rack Type 6KVA/10KVA Online UPS with Lithium Battery

Place of Origin China
Brand Name Gtech
Certification CE/ROHS
Model Number PT6-10K Li
Minimum Order Quantity 10 PCS
Price Negotiation
Packaging Details Standard Export Package
Delivery Time Sample: 7 days; Qty order: 20 days
Payment Terms L/C, T/T
Supply Ability 300 PCS per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

6KVA/10KVA Online UPS

,

Lithium Battery Online UPS

,

Rack Type Online UPS

Leave a Message
Product Description

Description:



GTECH lithium powered Rack Type 6KVA/10KVA Online UPS, featuring DSP and true doube version cotrol technology, widely used for server, network, data room and IT purpose, also well applicable to laser printer and ultrasonic cleaner etc.





Features:



Zero Transfer time

DSP Digital Control

Three Level Inverter

Li-ion Battery and exclusive charger

ModBUS(RS485) interface with BMS

Ultra Wide Input Mains range from 90V~300V

Best Loading Capability, Output Power Factor 0.9

Genset Compatible

High Input power factor 0.99

Reliable design and open to customization





Specifications:



Model item 6KS-LI 10KS-LI
Rated power 6kVA/4.5kW 10kVA/9kW
AC Input Input system Single phase (L/N+PE)
  Nominal voltage 208/220/230/240VAC
  Frequency 50/60Hz
  Voltage range 90~300VAC
  Frequency range (40~70)±0.5Hz
  Input power factor >0.99





Battery

Input

Charging Voltage 216V(default for 60cell of LiFePO4 ) / Customerized according to battery request
  Battery Capacity External


Charger Behavior &

Protection

CC. CV. Floating. Turn-Off 4 states

3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface

  Charging Current Long Backup Time Model :4A / 8A (Optional)







AC Output

Output wiring system Single phase (L/N+PE)
  Inverter Output voltage 208/220/230/240VAC±1%
  Waveform Sine Wave
  Harmonic Distortion THD<2% (linear load) THD<7% (nonlinear load)
  Output frequency

50/60±4Hz (Sync mode)

50/60Hz±0.1% (Fix Freq. mode)

  Overload capability

100%~105% continuous.

60Sec.@105%~130% Rated Load

10Sec.@130%~150% Rated Load

0.3Sec.@>150%Rated Load

  Transfer time Battery <-> Line Mode :0ms
Efficiency Line Mode >92% >93%
  Battery Mode >90%
Physical Chassis Style Rack-Mounted


Rack Dimension

W x H x D (mm)

6KS-Li/10KS-Li: 438mm(W) x 88mm(2U)(H) x 500mm(D)
  Weight (kg) 11.5 13.5

Standards

COMMUNICATION

1. RS232 PORT

2. Network Card: Support SNMP,TCP/IP Protocol , for remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown

3. Dry Contact Interface for BMS control

4. ModBUS For BMS interface

Alarm Function AC/DC input under abnormal, overload condition and Inverter problems
Protection Function AC input or output above or below the range of voltage, overload, over temperature and short circuit protection

Operating Environment

Endurance



Temperature range -10~50oC
  Relative Humidity 0-98%(Non-condensing)
  Acoustics Noise <55dB @ 1 meters





UPS Outlook:

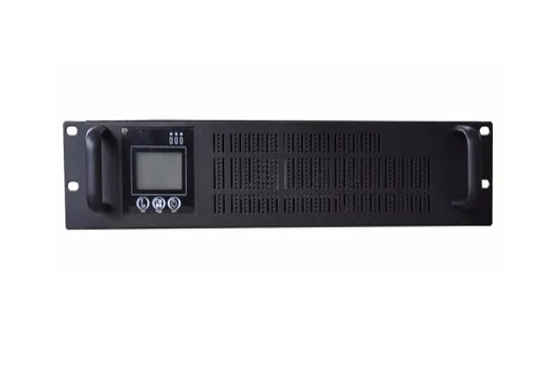

True Double Version Rack Type 6KVA/10KVA Online UPS with Lithium Battery 0

Front view



True Double Version Rack Type 6KVA/10KVA Online UPS with Lithium Battery 1

Rear view







Wiring between UPS and Li-ion Battery Pack



True Double Version Rack Type 6KVA/10KVA Online UPS with Lithium Battery 2





Applications:



True Double Version Rack Type 6KVA/10KVA Online UPS with Lithium Battery 3
