Place of Origin:
China
Brand Name:
Gtech
Certification:
CE/ROHS
Model Number:
LS-20

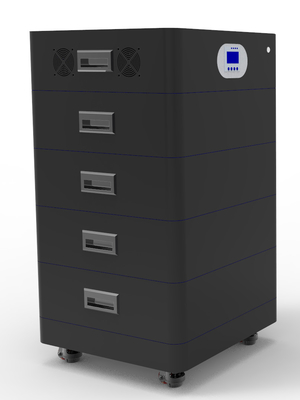

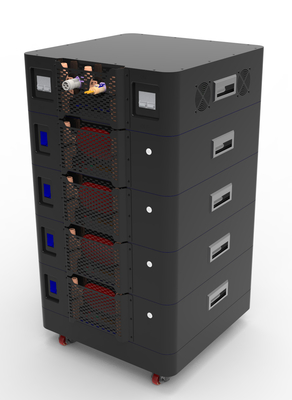

20.48KWh All-in-one Stackable Home ESS
Description:
Gtech 20.48KWh home ESS is a fantastic all-in-one type of battery system that's becoming increasingly popular. With its stackable design and powerful energy capacity, it's the perfect solution for anyone who wants to take control of their home energy usage.
Features:
All-in-one stackable ESS
5KW pure sine wave power output
High safe standard 3U top LFP battery module
4 PCS 51.2V100Ah batteries in one cluster
Long service life more than 5000 cycles
Charging current from 20A~100A configurable
Smart BMS ensuring each cells balance and all protections
Max support 16 battery modules cascade connection(4 stacks)
CAN/RS485/RS232/Dry contact multi-communication interface
Compatible with main inverter brands in the market
Integrated DC switch to enhance safe and no-worry operation
Widely used for home, community and office energy storage
Bottom moveable wheels easily for portable purpose
Specifications:
| Battery energy | 20.48kwh | |
| Battery module | 51.2V-100 | |
| Number of battery modules | 4 | |
| Battery Type | Lithium Iron Phosphate | |
| Rated voltage | 51.2V | |
| Battery voltage range | 40V~58.4V | |
| Battery capacity | 100Ah | |
| Maximum continuous charging current | 100A | |
| Maximum continuous discharge current | 100A | |
| Net weight | 52kg | |
| Overall dimensions (L*W*H)mm | 550*572*191 | |
| Range of working temperature | Charging: 0~45℃ Discharging -20~50℃ | |
| Cycles | Room temperature @ 0.5C, 5000 charge and discharge cycles, SOC≥80% initial capacity | |
| Communication method | CAN/RS485/RS232 | |
| Inverter (optional) | ||
|
AC output |
Output rated power | 5000W |
| Output waveform | pure sine wave | |
| The output voltage | 208/220/230/240Vac±5% | |
| Output frequency | 50Hz ~ 60Hz | |
| Peak efficiency (battery mode) | >94% | |
| Overload capacity |
60S@102%~110% load; 10S@110%~130% load; 3S@130%~150% load; 200ms@≥150% load; |
|
| Solar charging@AC charging | PV maximum open circuit voltage | 450V/DC |
| Photovoltaic array MPPT tracking voltage | 120~430V/DC | |
| Photovoltaic maximum charging current | 60~80A | |
| AC maximum charging current | 60~80A | |
| Mains charging voltage range | 90~280VAC (APP mode); 170~280VAC (UPS mode) | |
| Charging mode | Two-stage/three-stage charging mode,/lithium battery | |
| Total charging current of mains and controller | 80A | |
| net weight | 13kg | |
| Inverter dimensions (L*W*H) mm | 550*572*191 | |
Applications:
