Place of Origin:
China
Brand Name:
Gtech
Certification:
CE/ROHS
Model Number:
GTECH-PT
Description:
Gtech single phase online UPS, featuring microprccessor technology and wide voltage input, widely used for Office and business equipment
IT and network equipment,embedded and automatic control system etc.
Features:
1. True double-conversion
2. Microprocessor control technology
3. Input power factor correction
4. Output power factor 1.0
5. Wide input voltage(110/120/220/230/240/300V )
6. Converter mode available
7. Generator compatible
8. Smart SNMP with either USB or RS-232 port
Spcifications:
Model # | PT-1KS | PT-1KL | PT-2KS | PT-2KL | PT-3KS | PT-3KL | ||
Capacity | 1KVA/1000W | 2KVA/2000W | 3KVA/3000W | |||||
Display | LCD | |||||||
INPUT | ||||||||
Input voltage range | 110~300VAC,110~176VAC,276~300VAC(power limited) | |||||||
Input frequency range | 50/60Hz±6Hz,± 10Hz (setable) | |||||||
OUTPUT | ||||||||
Output voltage range | 208/220/230/240VAC | |||||||
Output frequency | AC mode: same as AC ,Battery mode:50/60Hz±1% | |||||||
Wave form | Pure Sinewave | |||||||
Transfer time | 0ms | |||||||
BATTERY | ||||||||
QTY & capacity of battery | 2pc*12V7Ah | -------------- | 4pc*12V7Ah | ------------- | 6pc*12V7Ah | ---------- | ||
Charging period | 4~6 hours recover to 90% capacity | |||||||
PROTECTION & FUNCTION | ||||||||
Protection | 1. Battery low voltage protection | |||||||
2. Overload protection | ||||||||
3. Short circuit protection | ||||||||
MANAGEMENT | ||||||||
RS232 & USB | Optional | |||||||
PHYSICAL | ||||||||
Unit dimension (mm) | 350*145*230 | 410*190*325 | 410*190*325 | |||||
Master box dimension (mm) | 485*455*355 | 610*330*490 | ||||||
Pcs in one master carton | 2 | 1 | 1 | |||||
Gross weight (1pc, kg) | 21.5 | 11 | 22.2 | 12 | 25.7 | 13 | ||
Net weight (1pc, kg) | 9.5 | 4.5 | 19 | 10 | 23.5 | 11 |

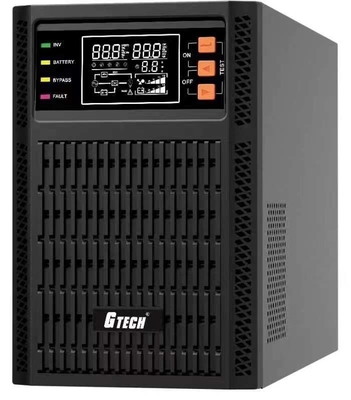

Product Outlook:
Applications:
