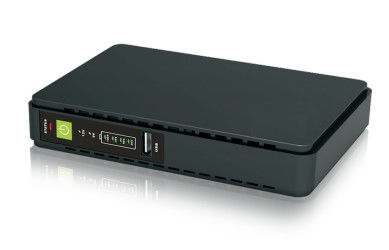

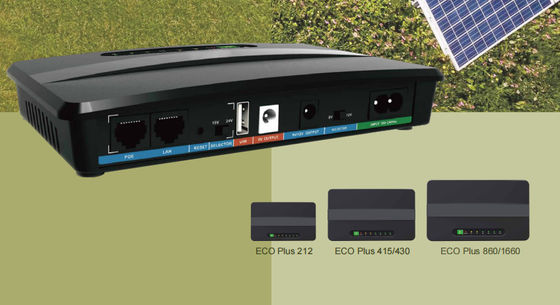

Mini UPS with DC, USB and POE Output Interfaces, Built-in adapter allows wide AC Voltage

  • Mini UPS with DC, USB and POE Output Interfaces, Built-in adapter allows wide AC Voltage
  • Mini UPS with DC, USB and POE Output Interfaces, Built-in adapter allows wide AC Voltage
Place of Origin China
Brand Name G-tech
Certification CE, ROHS, IEC, UN38.3, MSDS
Model Number Mini DC UPS
Minimum Order Quantity 50
Delivery Time 30 days
Payment Terms L/C,Western Union,D/P,T/T,Western Union
Product Details
Transfer Time 0ms Wide Input Voltage 100-240Vac
Displaytype LED Indicators Charging Time 2-3 Hours
Mount Rack Battery Lithium Battery
Highlight

Versatility And Reliability UPS system

,

DC UPS system

,

Uninterrupted Power Supply UPS system
Leave a Message
Product Description

Power up your devices with confidence using the cutting-edge DC UPS solutions from G-Tech Brand.

Designed for versatility and reliability, our DC UPS systems ensure uninterrupted power supply in various settings.

Here's what sets our G-Tech Brand DC UPS apart:

Main Features:

  • High capacity lithium batteries, providing longer backup to loads.
  • High compatibility, suitable for most digital products in the markets.
  • With POE Interface, this mini UPS can transmit power and simplify wiring.
  • Intelligent circuit design with over-charging, over-discharging and short circuit protections.
  • Built-in adapter, allowing wide  AC voltage.(85-265Vac)
Techinical Specification:
Model ECO-1830 ECO-1860 ECO-3660 ECO-6060
INPUT
Input Voltage 100-240Vac /50Hz-60Hz
OUTPUT
Power(Max.) 18W 36W 60W
Output Interface USB C/DC1 DC2 DC3-4 POE USB A/USB C/DC1 DC2 DC3 POE USB A+USB C+DC1 DC2 DC3-4 POE USB A+USB C+DC1 DC2 DC3-4 POE
Voltage 5V 9V 12V 24V/48V 5V 9V 12V 24V/48V 5V 9V 12V 24V/48V 5V 9V 12V 24V/48V
Output current and power 2A 10W 1A 9W 1A 12W 0.4A/0.2A 9.6W 2A 10W 1A 9W 1A 12W 0.4A 0.2A 12W 2.4A 12W 2A 18W 3A 36W 1A/0.4A 24W 2.4A 12W 2A 18W 5A 60W
1A/0.4W 24W
QTY & Capacity of battery 8700mAh 16000mAh 16000mAh 20000mAh
CHARGE
Charging period Typical: 2-3 hours
ENVIRONMENT
Environment of performance Temp. 0~40℃; Humidity 20%-90%
Noise Level ＜40db
