Place of Origin:
China
Brand Name:
GTECH/OEM
Certification:
CE, ROHS, IEC, UN38.3, MSDS
Model Number:
LW-5K

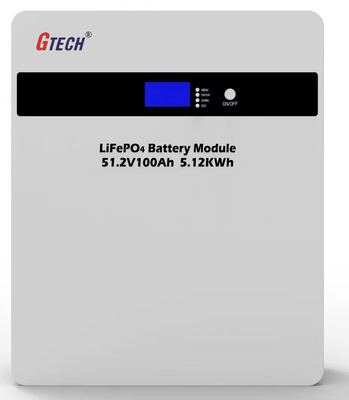

GTECH LW Series Home Lithium Batteries with the characteristics of long lifespan, high safety, easy maintenance and eco-friendly.
Description:
The LW series energy storage battery (solar battery) is a smart investment for your home. Not only will it provide reliable backup power during times of outages, but it will also help you save money on your energy bills by storing and using energy when it's cheaper. With the characteristics of long lifespan, high safety, and easy maintenance, our solar batteries are widely used for house and community energy storage applications. So, make the switch to the LW series home energy storage batteries and start enjoying the benefits of sustainable and reliable power for your home!
Features:
Grade A cell from the top lithium battery manufacturers
Smart BMS with automatic cell equalization and all protections
Compact and simplified cabinet design
Humanized visual appearance from APP function
CAN/RS485/RS232/Dry contact multi-communication interface
Support Max 16 PCS in parallel for large capacity application
Max discharge current 150A for tough off-grid solution
Compatible with multi-brands known inverter
Ideal choice for home energy storage and power back-up.
Specification:
| Model | LW-5K | LW-10K |
| Battery Type | LFP | LFP |
| Battery Model | 51.2V100AH | 51.2V200AH |
| Nominal Capacity(25c,0.2C)Wh | 5120Wh | 10.24KWh |
| Adjustable Working Voltage(Vdc) | 40~56.8V | 40~56.8V |
| Max Charge Cut-off Voltage(Vdc) | 58.4V | 58.4V |
| Max.Continuous Discharge Current(A) | 100 | 200 |
| Max.Pulse Discharge Current(A) | 150A(1 sec)configurable | 300A(1 sec)configurable |
| Max.Continuous Charge Current(A) | 100 | 200 |
| Cycle Life(25C 0.2C 80%DOD) | >5000 Cycles | >5000 Cycles |
| Cell Equalizer Current(A) | 0.1~5AMax.(Optional) | 0.1~10AMax.(Optional) |
| Terminal | EES-6mm quick plug terminal | EES-6mm quick plug terminal |
| Storage Duration | 6 months at 25 ℃ | 6 months at 25 ℃ |
| Safety Standard | UN38.3.MSDS.CE | UN38.3.MSDS.CE |
| Communication Function | RS485/CAN(Standard) | RS485/CAN(Standard) |
| Protection | Over charge protection/ Over discharge protection/Ove rcurrent protection/ Short circuit protection/ Over temperature protection |
|
| W*H*D(product size)mm | W500*H600*D165 W415*H715*D250 | |
| Net Weight(Kg) | 46.6 | 90 |
About G-TECH Group:
G-Tech power Group was established in 2002. After more than 10 years of development, it has become a high-quality professional manufacturer that also can provide complete power supply system solution. We specialize in developing, manufacturing and operating the most reliable and safe UPS, Inverter and battery products. Our products have been exported to more than 100 countries around the world, winning a high reputation in domestic and overseas markets. With the continuous development of new energy technology, we invested a new factory named Guangdong Lanke New Energy Co., Ltd., which adopted the completely automatic product line, focusing on the R&D, manufacturing and sales of lithium iron phosphate (LiFePO4) pack, providing safer, smarter and simpler batteries energy storage system, and adhering to the management philosophy of safety first, product quality and environmental protection as the center. Our factory (Lanke New Energy) is located in Dongguan City, Guangdong Province, China, known as the "World Factory" with convenient transportation and developed supporting industries, covering an area of 10,000 square meters. There are more than 500 employees, including more than 50 intermediate and senior technical Engineers. We have advanced automated module production lines for manufacturing batteries and assembling all-in-one ESS for residential and commercial energy storage solutions. In order to provide more efficient and cost-effective lithium energy storage products to meet customers' expanding power needs and high-quality requirements,
Our factory has passed ISO 14001, ISO 9001, ISO45001 and other certifications, and has obtained multiple product invention practical patents. With fully automatic equipment and excellent quality control, we guarantee customer satisfaction in all stages of production. We warmly welcome friends from all over the world to discuss and negotiate with us and establish mutually beneficial and win-win friendly cooperative relations!
Our Certificates
FAQ
Q1: Can I have a sample order? is it free or extra ?
A: Thank you for your interest in our products. We welcome you to purchase samples for testing to understand the quality. Due to the high value of our products, the sample cost and shipping fee will need to be covered by you.
Q2: How long is your delivery time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How about the warranty?
A3: Normally we offer 5 years warranty, depends on products, contact us for more details.
