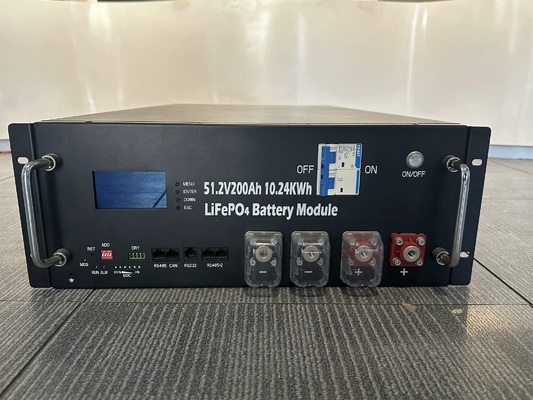

LiFePO4 Battery Pack LR51.2-200 The Ultimate Solution for Large Capacity and Extended Cycle Life Energy Storage
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Product Specification:
| Model | LR25.6-100 | LR48-100 | LR51.2-100 | LR48-200 | LR51.2-200 |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Model | 25.6V100AH | 48V100AH | 51.2V 100AH | 48V200AH | 51.2V200AH |
| Nominal Capacity(25℃,0.2C)WH | 2560Wh | 4800Wh | 5120Wh | 9600Wh | 10240Wh |
| Adjustable Working Volltage(Vdc) | 22.4～29.2V | 37.5-53.25V | 40-56.8V | 37.5～53.25V | 40～56.8V |
| Max Charge Voltage(Vdc) | 28V | 54.75V | 58.4V | 54.75V | 58.4V |
| Max Continuous Discharge Current(A) | 100A | 100A | 100A | 200A | 200A |
| Max Pulse Dischange Curent(A) | 150A | 150A | 150A | 250A | 250A |
| Max Continuous Charge Curent(A) | 100A | 100A | 100A | 200A | 200A |
| Cycle Life(25C 0.2C 80%DOD) | >5000 Cycles | >5000 Cycles | >5000 Cycles | >5000 Cycles | >5000 Cycles |
| Terminal | M8 | ||||
| Storage Duration | 6 months at 25℃ | ||||
| Safety Standard | UN38.3/MSDS/CE | ||||
| Communication Function | RS485/CAN(Standard) | ||||
| Communication with Mainstream Inverter | Growatt/Victron/GOODWE/Pylontech/MUST etc. | ||||
| Protection | Overcharge protection/Over discharge protection/Over current protection/ Short circuit protection/ Overtemperature protection | ||||
| W*H*D(Product Size)mm | L444*W482*H178 | L516*W482*H132.5 | L516*W482*H132.5 | L551*W482*H132.5 | L846*W482*H177 |
| Net Weight(Kg) | 27.1 | 42.8 | 44.8 | 84.3 | 88.3 |
