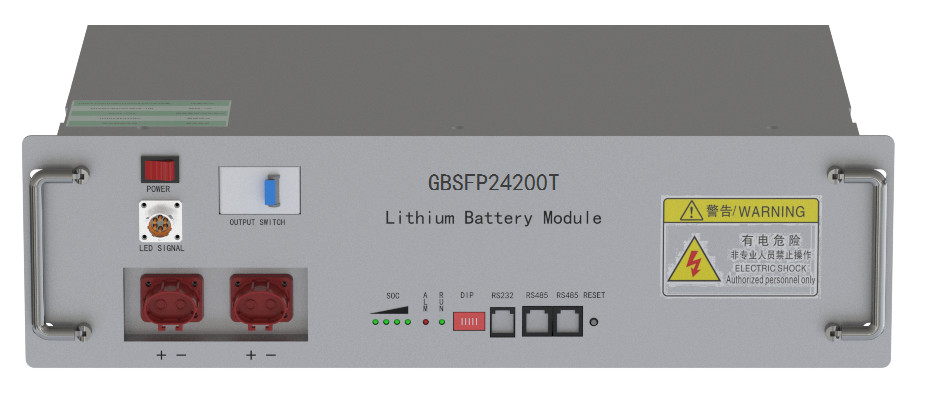

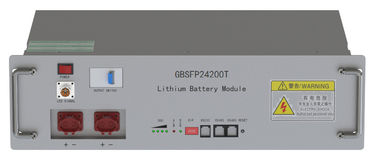

25.6V LiFePO4 battery for solar energy storage

  • 25.6V LiFePO4 battery for solar energy storage
  • 25.6V LiFePO4 battery for solar energy storage
  • 25.6V LiFePO4 battery for solar energy storage
Place of Origin China
Brand Name Gtech or OEM
Certification UN38.3,CE
Model Number 25.6V 5Ah-500Ah
Minimum Order Quantity 1pcs
Price RMB300-USD1000
Packaging Details carton and wooden box
Delivery Time 5-10 days
Payment Terms T/T
Supply Ability 500pcs per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

25.6V LiFePO4 solar battery

,

LiFePO4 battery for solar storage

,

25.6V solar energy storage battery
You can tick the products you need and communicate with us in the message board.
Standard Discharge
Leave a Message
Product Description
Electrical
Characteristics		 Nominal voltage 25.6V
Nominal Capacity 200Ah (C5,25℃)
Energy 5120Wh
Internal Resistance ≤200mΩ
Cycle Life >5000 cycles @1C 100%DOD
Months Self Discharge <3%
Efficiency of charge 100% @0.2C
Efficiency of Discharge 96~99% @1C
Standard Charge 25.6V LiFePO4 battery for solar energy storage 0 29.2±0.2V
  0.2C to 29.2V, then 29.2,charge current 0.02C(CC/CV)
  40A
  150A
25.6V LiFePO4 battery for solar energy storage 1 29.6V±0.2V
Standard Discharge Continuous Current 150A
Max. Pulse Current 450A(<3s)
Discharge cut-off voltage 25.6V LiFePO4 battery for solar energy storage 220V
Environmental Charge Temperature 0 ℃ to 45 ℃ (32F to 113F) @60?25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4F to 140F) @60?25% Relative Humidity
25.6V LiFePO4 battery for solar energy storage 3 0 ℃ to 40 ℃ (32F to 104F) @60?25% Relative Humidity
25.6V LiFePO4 battery for solar energy storage 4
25.6V LiFePO4 battery for solar energy storage 5 Mechanical Cell & Method 3.2V50AH-8S4P
Plastic Case ABS
Dimensions (in./mm.) 522*268*218 mm
Weight (lbs./kg.) 36Kg
Terminal M8
Protocol (optional) NO
BMS 8S150A
