1000va 600w Portable PWM UPS
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | China | Brand Name | G-Tech |
|---|---|---|---|
| Display | LED/LCD Optional | Charge Period | 8 Hours To Be Full |
| Charge Current | 1A | Warrenty | 2 Years |
| Weight | 3~12kg | Output Voltage | 110V/220V |
| Highlight | 1000va ups computer power supply,1000va PWM UPS,1000va 600w PWM UPS |
||
Product Description

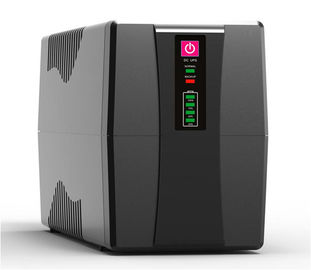

1000va 600w Portable PWM UPS
Portable Mini Off Line Standby UPS For Laptop Power Backup 1000va 600w UPS
• Excellent microprocessor control guarantees high reliability
• Boost and buck AVR for voltage stabilization
• Auto restart while AC is recovering
• Simulated sine wave
• Off-mode charging
• Cold start function
• Generator compatible
Specification
| MODEL | V-525 | V-625 | |
| Capacity | 500VA/300W | 600VA/360W | |
| INPUT | |||
| Input Voltage | 110/120Vac or 220/230/240Vac | ||
| Intput Voltage Range | 90~132Vac/175~265Vac | 85~150Vac/145~290Vac | |
| Frequency Range | 45~65Hz | ||
| OUTPUT | |||
| Output Voltage | 110/120Vac or 220/230/240Vac | ||
| Output Voltage Range | 90~132Vac/175~265Vac | 102-132Vac/200~255Vac | |
| Output Frequency | 60±0.5Hz or 50±0.5Hz(Batt.Mode) | ||
| Output Wave Form | PWM(Batt.Mode) | ||
| Transfer Time | Typical(2-6ms),10ms max | ||
| BATTETRY | |||
| Qty.& Capacity of Battery | 12V/4AH*1pc | 12V/7AH*1pc | |
| Charging Period | 4-6hours recover to 90% capacity | ||
| PROTECTION | |||
| Full Protection | Low Voltage &overload&short circuit protection | ||
| PHYSICAL | |||
| Net Weight(kg) | 4.4 | 5 | |
| Unit Dimensions(mm) | 255*98*140 | 300*95*140 | |
| ENVIRONMENT | |||
| Environment of Performance | Tempreture 0℃-40℃,Humidity 20%-90% | ||
| Noise level | ≤40dB(1m) | ||
| MANAGEMENT | |||
| LCD or LED,RJ45/11&USB | Optional | ||
