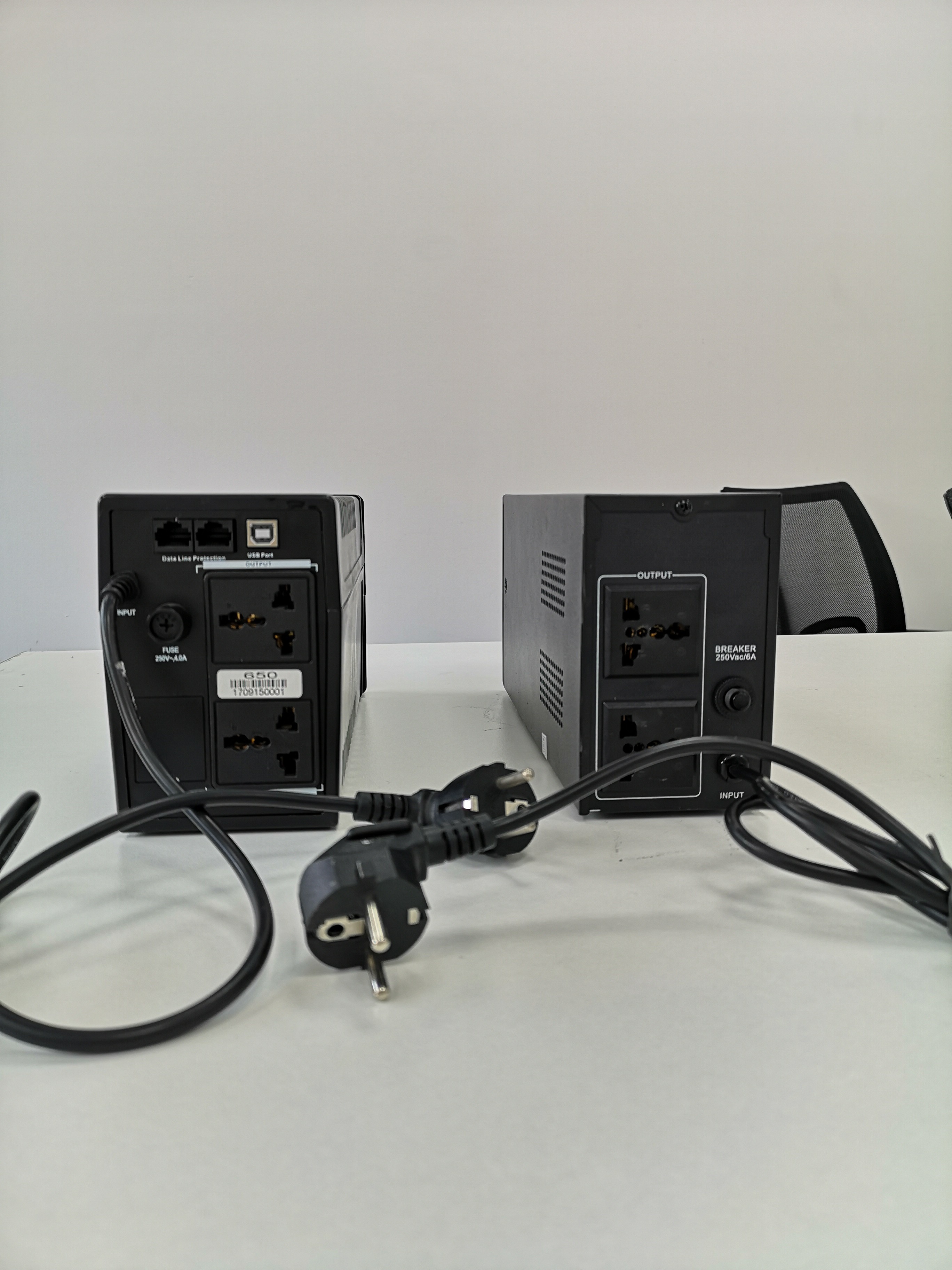

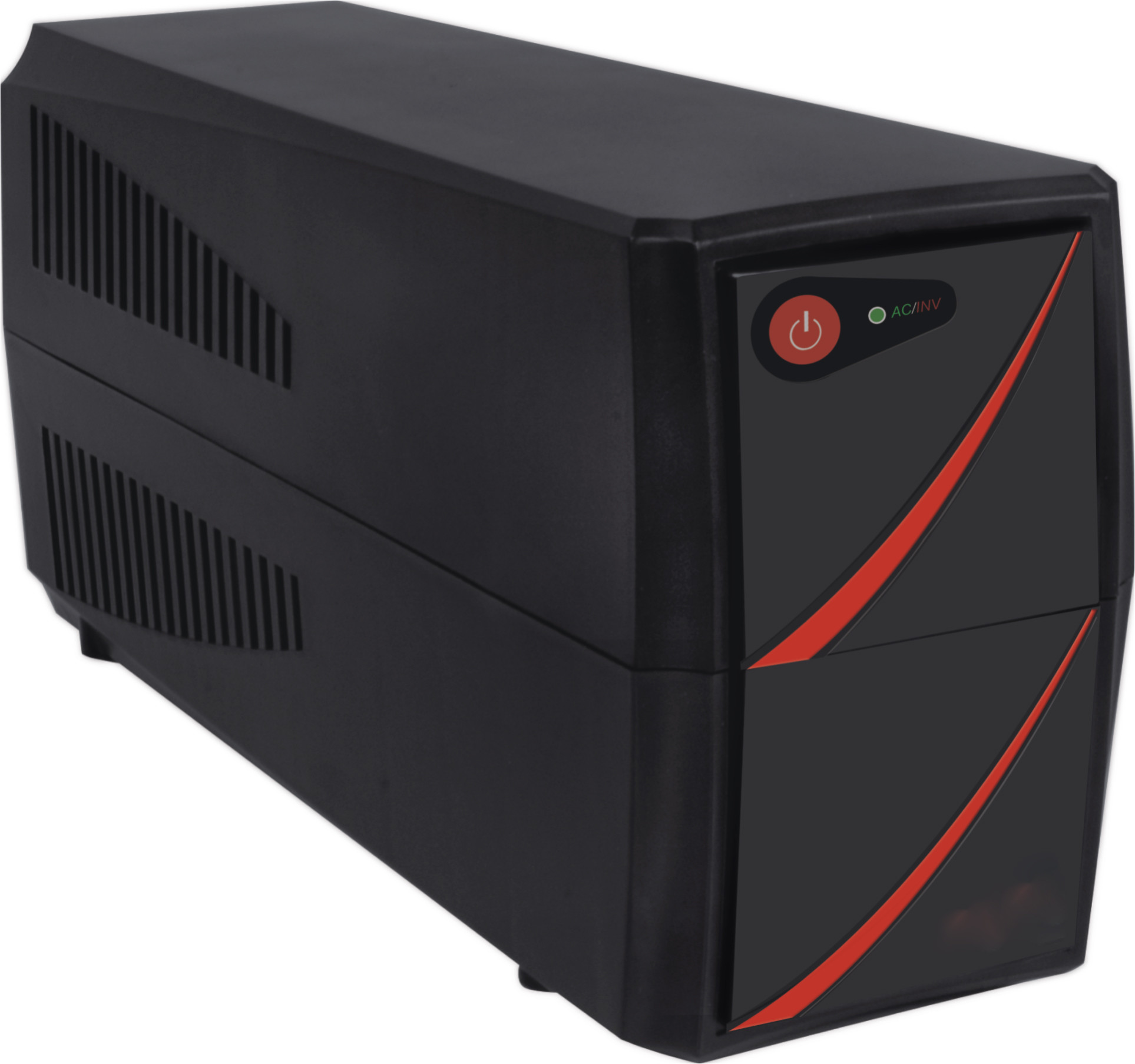

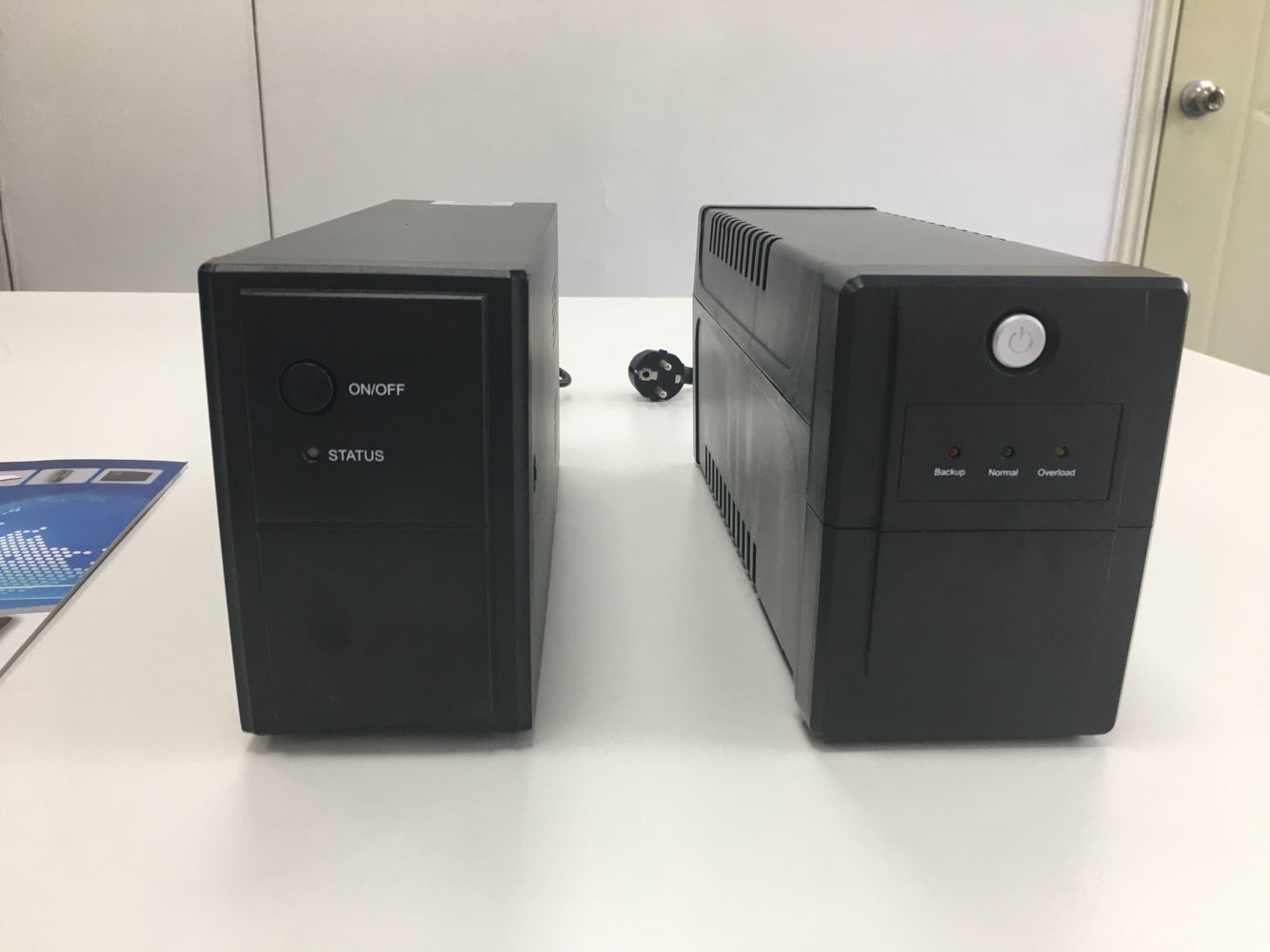

2KVA Modified Sine Wave PWM UPS

Place of Origin	China
Brand Name	G-Tech
Certification	CE ROHS
Model Number	V-
Minimum Order Quantity	500pcs
Price	Negotiation
Packaging Details	Carton packing
Delivery Time	7-25workdays
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Protection	Overvoltage	Output Voltage	110V/220V
Application	Computer	Capacity	60% Of Rated Power
Charge Period	8 Hours To Be Full	Phase	Single Phase
Display	LED/LCD Optional	Warrenty	24 Months
Highlight	Modified Sine Wave PWM UPS , 2KVA PWM UPS , 2KVA ups pwm

Leave a Message

Product Description

2KVA Modified Sine Wave PWM UPS

Computer Offline UPS 650va 850va 1000va 1500va High Quality Modified Sine Wave with AVR CE

MODEL	V-600	V-800	V-1000	V-1500	V-2000	V-3000
Capacity	600VA/360W	800VA/480W	1000VA/600W	1500VA/900W	2KVA/1200W	3KVA/1800W
INPUT
Input Voltage	220/230/240VAC
Intput Voltage Range	145-290Va				175-275Vac
Frequency Range	45-65Hz
Output Voltage	220/230/240Vac
Output Voltage Range	200-255Vac
Output Frequency	60±0.5Hz or 50±0.5Hz(Auto Sensing)
Output Wave Form	PWM(Batt.Mode)
Transfer Time	Typical(2-6ms),10ms max
BATTETRY
Qty.& Capacity of Battery	12V/7AH*1pc	12V/9AH*1pc	12V/7AH*2pcs	12V/9AH*2pcs	12V/7AH*4pcs	12V/9AH*4pcs
Charging Period	4-6hours recover to 90% capacity
PROTECTION
Full Protection	Low Voltage &overload&short circuit protection
PHYSICAL
Net Weight(kg)	4.6	5.5	9.5	11.5	18	20
Unit Dimensions(mm)	30585140		350120188		340110265
ENVIRONMENT
Environment of Performance	Tempreture 0℃-40℃,Humidity 20%-90%
Noise level	≤40dB(1m)
MANAGEMENT
LCD or LED,RJ45/11&USB	Option
