2KVA Sine Wave Ups Battery Backup With Overload Short Circuit Protection

2KVA Sine Wave Ups Battery Backup With Overload Short Circuit Protection

pure sine wave ups

true sine wave ups

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE,Rohs,ISO

Model Number:

SL

Contact Us
Request A Quote
Product Details
Application:
Power Backup For Computer,Laptop...
Mount Way:
Tower Type
Protection:
Overvoltage
Type:
Line Interactive
Color:
Black
Output Wave Form:
Sine Wave
Material:
ABS/Metal
Battery:
12V/7AH*4
Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiation
Packaging Details
Carton
Delivery Time
25 days
Payment Terms
L/C, T/T
Supply Ability
200000pcs/Month
Product Description

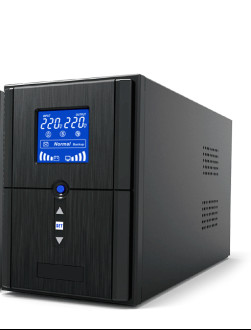

SL Series 2KVA Line-interactive UPS Pure Sine Wave Tower Type

  • Product Introduction
  • SL series UPS applies CPU intergrated control technology with pure sine wave output. Its input voltage range is wide and its
  • transfer speed is fast. It possesses automatic voltage regulation function and different charging current is optional. Long backup
  • time models are available, which can be connected to external batteries as per user's actual need, so back up time will be unlimited.



Field of application

Applicable to household PC, office euquipment in enterprise and institution, small communication switchborad and server, LAN device,

commerical POS machines, small workstation and its peripheral equipment, banking terminal, ATM system and so on.

  •
  • Line-interactive UPS
  • LCD or LED display optional
  • 145-275V AC input
  • 200-240V AC output
  • Product description: 1KVA~5KVA Line-interactive Pure Sine Wave No Break Power Systems OEM/ODM Supply
  •
  • Feature

    2 CPU Controlled

    Pure Sine Wave output

    Compatible with generator

    Automatically transferred to Batt.Mode when input over/low voltage

    Connect to external battery for long power supply

    RJ11/45, RS232/USB (Optional)

  • Tower/Rank Mountable type(Optional)

  • Slience Running

  • output Overload and short circut protection

  •

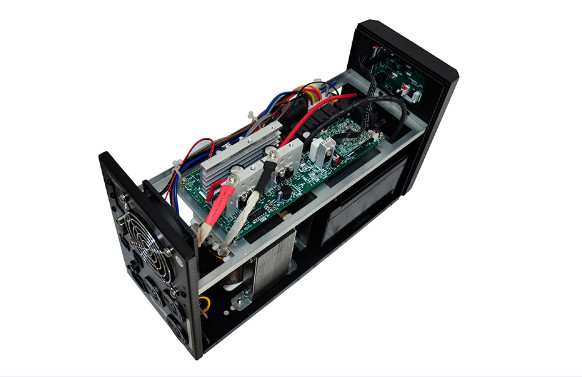

  • 2KVA Sine Wave Ups Battery Backup With Overload Short Circuit Protection 0





Specifications

Model

SL-2K

Capacity 2000VA/1400W

Display

LCD/LED(Optional)

AC Mode

Input

Voltage

145-275VAC

Frequency

45-65Hz

Output voltage

200-240VAC

Inverter Mode

Output voltage

220V±5%

Output Frequency

50±0.5Hz

Power Factor

0.7

Output wave form

Pure Sine Wave

Transfer Time

Typical 2-6ms, 10ms Max

Overload capacity

if 110%, then shut down within 60sec; if 120%, then shut down within 5 sec.

Battery

Sealed maintenance-free lead-acid batteries

DC Voltage

48VA

Qty & capacity of Battery

12V/7AH*4

Physical
Net Weight(kg) 30.2
Dimension(mm) 455*195*330
USB&RS232 Optional























































2KVA Sine Wave Ups Battery Backup With Overload Short Circuit Protection 1



Founded In the early 2005, as an UPS/Inverter/VRLA Battery Manufacturer on the market, G-Tech has worked closely with his customers and helped them boost their business for more than 14 years.

Now, we are looking forward to exploring and discovering more opportunities with our customers, and move on to the next 30 years of successful business.
