2100W 3500A Power Inverter Home Depot PIV Series With Extending Service Life

2100W 3500A Power Inverter Home Depot PIV Series With Extending Service Life

pure sine wave inverter home depot

pure sine wave inverter for home

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS/ISO

Model Number:

PIV series

Contact Us
Request A Quote
Product Details
Material:
Metal/ABS
Warranty:
2 Years
Output:
AC 220V
Colour:
Customized
Display:
LCD/LED Optional
Wave Form:
Modified Sine Wave
Protection::
Overload And Short Circuit Protections
Capacity:
1500W-3000W
Payment & Shipping Terms
Minimum Order Quantity
30PCS
Price
Negotiation
Packaging Details
Carton
Delivery Time
21-25 work days
Payment Terms
L/C, T/T
Supply Ability
10,000PCS
Product Description

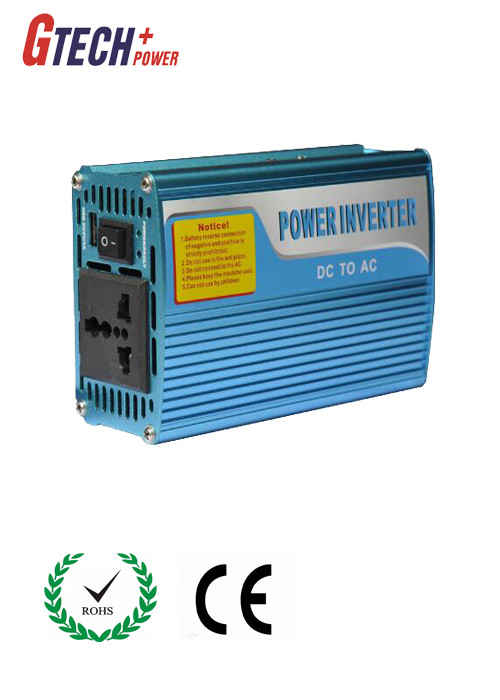

Car power inverter, 2100W 3500A PIV series,Modified Sine Wave,AC220V,50/60Hz



PIV series power inverter, have superior load capacity and are particularly for start up inductive load. Also, Various functions can be customized according to the needs of different markets. Based on the basic inverter function, the piv series power inverter can expand other additional functions according to customer requirement or customize the solution for customer specific application environment. Such as LCD display/LED display or AC charger.

Features:

1.Excellent start-up performance, perfect for high-power appliances such as air conditioners, refrigerators, washing machines, etc.

2.High efficiency conversion, negligible no-load current, more energy saving.

3.Optional LCD or LED indicators, showing the working state of inverters directly.

4.Multistage automatic temperature control fan, better ventilation, less noise.

5.It has perfect protection over situable like, input overvoltage and undervoltage, output overload, short circuit, and over temperature.

6.5V/1A USB port.


Specification:

Model PIV3500A
Output voltage AC220V
Rated power 2100w
Peak power 3500w
Output wave Form



Modified Sine Wave

Frequency 50/60Hz
USB DC 5V 1A
No-load current <0.4A( input 12.5V)
Working Voltage



DC 12V

Voltage range 15.5-15V
Battery low Voltage alarm



10.5V

Battery low Voltage protection



10V



Battery Overvoltage Protection



15.5V



Maximum Efficiency



>85%

NW.(kg) 3

Dimension

(mm)

360*180*85
Size/CTN(mm) 425*440*320
GW(kg) 16.2
Quantity/CTN 4PCS

Product specifications are subject to change without notice.
