Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
V-600VA-3000VA

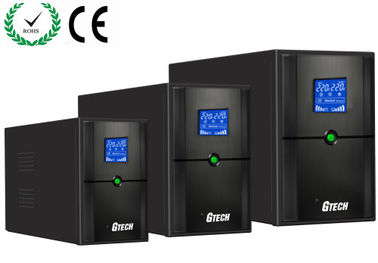

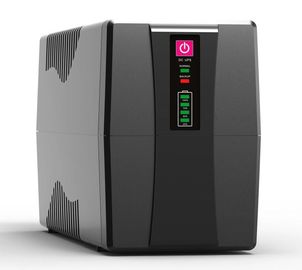

850va 750w 700va 650 Home Storage Power System 110vac 220v Supply Ups 900w
110vac 220vac Pure Sine Wave Line Interactive UPS For Computer uninterruptible power supply
| MODEL | V-400 | V-600 | V-800 | V-1000 | V-1500 | V-2000 |
| CAPACITY | 240W | 360W | 480W | 600W | 900W | 1200W |
| INPUT | ||||||
| Voltage | 110/120 VAC or 220/230/240 VAC | |||||
| Voltage Range | 81-145 VAC / 162-280 VAC | |||||
| Frequency Range | 60/50 Hz (auto sensing) | |||||
| OUTPUT | ||||||
| AC Voltage Regulation (Batt. Mode) |
110/220 VAC±10% | |||||
| Frequency Range (Batt. Mode) |
60 Hz or 50 Hz ±1 Hz | |||||
| Transfer Time | Typical 2-6 ms | |||||
| Waveform (Batt. Mode) | Simulated Sine Wave | |||||
| BATTERY | ||||||
| Battery Type & Number | 12v4.5ah*1 | 12v7ah*1 | 12v8ah*1 | 12v7ah*2 | 12v9ah*2 | 12v9ah*2 |
| Typical Recharge Time | 4-6 hours up to 90% capacity | |||||
| INDICATORS | ||||||
| AC Mode | The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level |
|||||
| Battery Mode | The right green LED flashing & the 2nd to 5th green gradually lighting indicating battery capacity |
|||||
| Fault | NO | Red lighting | Red LED lighting | |||
| ALARM | ||||||
| Battery Mode | Sounding every 10 seconds | |||||
| Low Battery | Sounding every second | |||||
| Overload | Sounding every 0.5 second | |||||
| Fault | Continuously sounding | |||||
| PROTECTION | ||||||
| Full Protection | Overload, discharge, and overcharge protection | |||||
| PHYSICAL | ||||||
| Dimension | 279 x 101 x 142 | 350 x 146 x 160 | 397 x 146 x 205 | |||
| Net Weight (kgs) | 3.55 | v | 4.9 | 8.0 | 11.1 | 11.5 |
| ENVIRONMENT | ||||||
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) | |||||
| Noise Level | Less than 40dB | |||||
| * Product specifications are subject to change without further notice | ||||||
