Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
V-400VA-3000VA

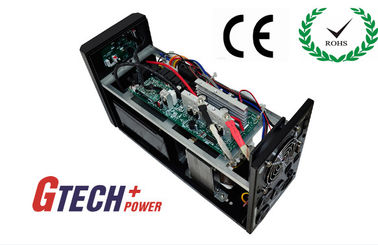

Pure Sine Wave Line Interactive UPS For Computer Uninterruptible Power Supply Wide input voltage range
Feature
1.Auto re-starts when AC recovers
2.Silence setup
3.Automatic charging (offline charging)
4.Battery low voltage protection
5.Overload & short circuit protection
6.CPU controlled
7.Optional RJ45/11 & USB port
8.Wide input voltage range
Field of application
Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.
| MODEL | V-400 | V-600 | V-800 | V-1000 | V-1500 | V-2000 |
| CAPACITY | 240W | 360W | 480W | 600W | 900W | 1200W |
| INPUT | ||||||
| Voltage | 110/120 VAC or 220/230/240 VAC | |||||
| Voltage Range | 81-145 VAC / 162-280 VAC | |||||
| Frequency Range | 60/50 Hz (auto sensing) | |||||
| OUTPUT | ||||||
| AC Voltage Regulation (Batt. Mode) |
110/220 VAC±10% | |||||
| Frequency Range (Batt. Mode) |
60 Hz or 50 Hz ±1 Hz | |||||
| Transfer Time | Typical 2-6 ms | |||||
| Waveform (Batt. Mode) | Simulated Sine Wave | |||||
| BATTERY | ||||||
| Battery Type & Number | 12v4.5ah*1 | 12v7ah*1 | 12v8ah*1 | 12v7ah*2 | 12v9ah*2 | 12v9ah*2 |
| Typical Recharge Time | 4-6 hours up to 90% capacity | |||||
| INDICATORS | ||||||
| AC Mode | The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level |
|||||
| Battery Mode | The right green LED flashing & the 2nd to 5th green gradually lighting indicating battery capacity |
|||||
| Fault | NO | Red lighting | Red LED lighting | |||
| ALARM | ||||||
| Battery Mode | Sounding every 10 seconds | |||||
| Low Battery | Sounding every second | |||||
| Overload | Sounding every 0.5 second | |||||
| Fault | Continuously sounding | |||||
| PROTECTION | ||||||
| Full Protection | Overload, discharge, and overcharge protection | |||||
| PHYSICAL | ||||||
| Dimension | 279 x 101 x 142 | 350 x 146 x 160 | 397 x 146 x 205 | |||
| Net Weight (kgs) | 3.55 | v | 4.9 | 8.0 | 11.1 | 11.5 |
| ENVIRONMENT | ||||||
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) | |||||
| Noise Level | Less than 40dB | |||||
| * Product specifications are subject to change without further notice | ||||||
