Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
V-

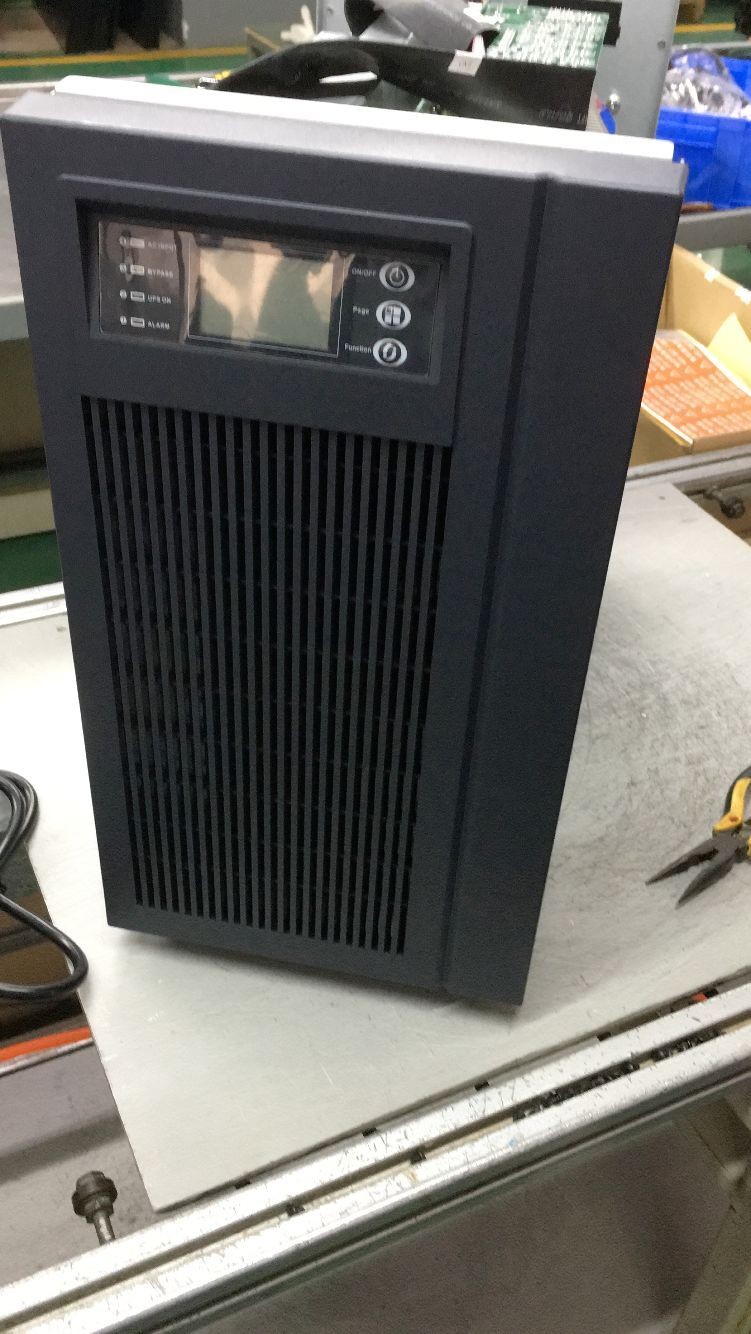

In Stock Single Phase Pure Sine Wave 10KVA UPS without battery
Specification
| MODEL | PT-6K | PK-6KL | PT-10K | PT-10KL | PT-3C10KL | ||||||||||
| Capacity | 6000VA/6000W | 10KVA/10000W | |||||||||||||
| INPUT | |||||||||||||||
| Wires | Single phase dual wires +earth wire | Three phases four wires +earth wire | |||||||||||||
| Power factor | 1.0 | ||||||||||||||
| Frequency range | 46-54Hz same as AC(AC mode) | ||||||||||||||
| Voltage | 220V:176~276Vac | 220V:304~478Vac | |||||||||||||
| OUTPUT | |||||||||||||||
| Output voltage | 220V:220v±2%Vac | ||||||||||||||
| Frequency | 50~60Hz Automatic sensing(AC mode) | ||||||||||||||
| 220V:50±0.2Hz(DC mode) | |||||||||||||||
| Current crest factor | 3:1 | ||||||||||||||
| Wave form | Sine Wave | ||||||||||||||
| BATTERY | |||||||||||||||
| QTY&capacity of battery | 12V/7.5AH*16pcs | ------ | 12V*7.5AH*16pcs | ------ | -------- | ||||||||||
| External battery | 192VDC | ------- | 192DC | ||||||||||||
| Transfer time | 0ms | ||||||||||||||
| Overload capability | 105%-130% for 10 minutes,130% above for 1 minute | ||||||||||||||
| ENVIRONMENT | |||||||||||||||
| Environment of performance | Temperature 0℃-40℃ | Humidity 20%-90% | |||||||||||||
| PHYSICAL | |||||||||||||||
| Unit dimension(mm) | 500*248*616 | 500*240*460 | 500*248*616 | 500*240*616 | 500*248*616 | ||||||||||
| Net weight(kg) | 57 | 18 | 67.5 | 20 | 27 | ||||||||||
| MANEGEMET | |||||||||||||||
| Interface | RS232,Intelling slot selectable | ||||||||||||||
FAQ:
Q1. MOQ & Samples.
A: MOQ is 1 pcs. Welcome sample order to test and check quality. Customized is available.
Q2. What about the lead time?
A: Samples within 1-5 days, big order within 2-3 weeks.
Q3. How do you ship the goods?
A: By express, air cargo and sea. We have MSDS, test report for safe transport as non-danger-ous products.
Q4. Is it OK to print my logo on product?
A: Yes. Free logo print.
Q5:Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q6:How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.01%. Secondly, during the warranty period, we will repair or replace defected products. 24 hours alling support!
Q7:If we could accept OEM & ODM Service?
Accept customized, such as the brand, Logo, Container color etc.
