Place of Origin:
China
Brand Name:
GTECH OR OEM
Certification:
CE, ROHS
Model Number:
500VA~3000VA
650VA 850VA 1000VA 1200VA 1500VA 2KVA 3KVA 5KVA

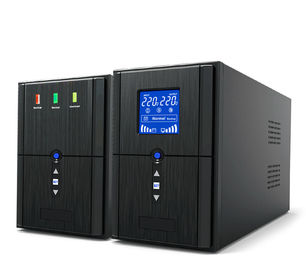

Pure Sine Wave Line Interactive UPS with Wide input voltage range
Feature:
1. Double CPU controlled
2.Silence setup
3. Pure sine wave putput
4.Compatible with generator
5. Automatically transferred to battery mode when input over voltage or under voltage
6. Output overload and short circuit protection
7. can be connected to external battery for longer power supply
8. Powerful charging current 1A, 3A. 5A, 10A, 20A optional
Application:
Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.
Specification:
| Model # | SL-1K | SL-1.5K | SL-2K | SL-3K | SL-5K | SL-1KL | SL-1.5KL | SL-2KL | SL-3KL | SL-5KL | ||
| Capacity | 1000VA/700W | 1500VA/1050W | 2000VA/1400W | 3000VA/2100W | 5000VA/3500W | 1000VA/700W | 1500VA/1050W | 2000VA/1400W | 3000VA/2100W | 5000VA/3500W | ||
| Display | LCD | |||||||||||
| AC Mode | ||||||||||||
| Input voltage range | 145~275Vac | |||||||||||
| Input frequency | 50Hz (48Hz-54Hz) | |||||||||||
| Output voltage range | 200~240Vac | |||||||||||
| Efficiency | ≥ 96% (AC mode) | |||||||||||
| Inverter Mode | ||||||||||||
| Output voltage range | 220Vac±5% | |||||||||||
| Output frequency | 50±0.5Hz | |||||||||||
| Output wave form | Pure sine wave | |||||||||||
| Transfer time | Typical 2~6ms, Max.10ms. | |||||||||||
| Overload capability | Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load | |||||||||||
| BATTERY | ||||||||||||
| QTY & capacity of battery | 2 pc*12V7Ah | 2 pc*12V9Ah | 4pcs*12V9Ah | 4pcs*12V9Ah | 4pcs*12V17Ah | External batteries(24V), capacity depends on user's choice. | External batteries(48V), capacity depends on user's choice. | |||||
| Charging period | 6~8 hours recover to 90% capacity | Depends on the batteries connected. | ||||||||||
| Charging current | 2-5A | 3-20A | ||||||||||
| MANAGEMENT | ||||||||||||
| USB | Optional | |||||||||||
| PROTECTION | ||||||||||||
| PROTECTIONS | 1. Auto re-starts when AC recovers 2. Automatic charging (offline charging) 3. Battery low voltage protection 4. Overload & Short circuit protection 4.Over current protection (Breaker for AC mode; System automaticlly shut down wihin 20ms in Inverter mode). |
|||||||||||
Factory Profile:
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
