Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
SL-

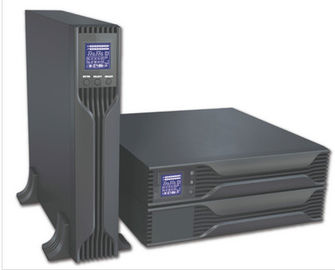

1.5KVA 24VDC Online Interactive UPS Power Supply for Computer Network
| Model | SL-600 | SL-1K | SL-1.5K | SL-2K | SL-3K | SL-5K | ||||
| Capacity | 600VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | ||||
| 420W | 700W | 1050W | 1400W | 2100W | 3500W | |||||
| Display | ||||||||||
| Indicator panel | LCD display/LED display(Optional) | |||||||||
| Input voltage | ||||||||||
| Input frequency | 145-275Vac | |||||||||
| Output voltage | 45-65Hz | |||||||||
| Output voltage | 200-240Vac | |||||||||
| INVERTER MODE | ||||||||||
| Output voltage | 220V±5% | |||||||||
| Output frequency | 50±0.5Hz | |||||||||
| Power factor | 0.7 | |||||||||
| Output wave form | Pure Sine Wave | |||||||||
| Transfer time | Typical 2-6ms,10ms max | |||||||||
| Overload capacity | 110% shut down within 60secs.120% shut down within 5secs | |||||||||
| Overcurrent protection | System shuts down automatically within 20ms | |||||||||
| BATTERY | ||||||||||
| Battery Type | Sealed maintenance-free lead -acid batteries | |||||||||
| DC voltage | DC12V | DC24V | DC48V | |||||||
| QTY.&Capacity of battery | 12V/7AH*1 | 12V/7AH*2 | 12V/7AH*2 | 12V*7AH*4 | 12V*7AH*4 | 12V*7AH*4 | ||||
| Charging current | ||||||||||
| Charging period | 6-8hours recover to 90% capacity Depends on the batteries connected | |||||||||
| Battery protection point | Adjustable | |||||||||
| PHYSICAL | ||||||||||
| Net weight(kg) | 4.8 | 9 | 12.1 | 22.5 | 24.5 | 3 | ||||
| Dimension(mm) | 305*85*141 |
384*122*192
|
585*192*330 | 585*192*330 | ||||||
| ENVIRONMENT | ||||||||||
| Environment | Temperature 0℃-40℃,Humidity 20-90% | |||||||||
| Noise level | ≤40dB(1m) | |||||||||
| Altitude | ≤1000m(Altitude exceeds 1000m,full power cannot reach) | |||||||||
| MANAGEMENT | ||||||||||
| USB&RS232 | Optional | |||||||||
Feature:
1,Double CPU controlled
2,Silence function
3,Pure sine wave output
4,Compatible with generator
5,Automatically transferred to battery mode when input over voltage or under voltage
6,Output overload and short circuit protection
7,Can be connected to external battery for longer power supply
8,Powerful charging current for high-capacity battery
9,RJ/RJ45,communication line protection function
10,RS232/USB port(optional),intelligent monitoring function
FAQ:
Q:How about the delivery time?
A:7days for samples,25 days for bulk order.
Q:What is the warrenty of inverter?
A:One year warrenty.
Q:How about the technical problem?
A:24 hours after service consultancy sands by for you.
Q:Can I get the sample?
A:Yes ,we accept sample order or trial order for testing first.
Q:What's the price and MOQ?
A:It depends on different models,please leave your contact.We will send the detail to you wthin 24 hours.
