Mini DC G Tech UPS 15W 30W 60W Lithium Li - ion Battery For CCTV Router VOIP POE

Mini DC G Tech UPS 15W 30W 60W Lithium Li - ion Battery For CCTV Router VOIP POE

ups backup power supply

ups unit power supply

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS

Model Number:

ECO Mini DC UPS

Contact Us
Request A Quote
Product Details
Wide Input Voltage:
100-240Vac
Transfer Time:
<10 Ms
Noise Level:
Less Than 40dB (1m)
Battery:
Lithium Battery, Li-ion Battery
Protection:
Overvoltage, Overload, Short Circuit
Color:
Black, Grey, White
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiation
Packaging Details
export deigned packing
Delivery Time
15-20 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability
100000 per month
Product Description

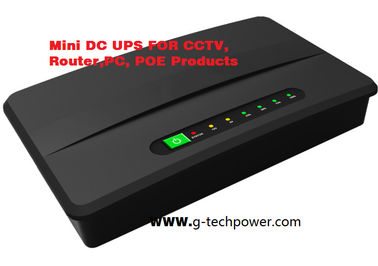

Mini DC UPS for CCTV, Router, VOIP POE, POE webcam, etc. Built-in adapter with wide AC input 100~240VAC.

with high performance lithium li-ion battery, can be used to uninterruptible power to net work equipment like modem, router, CCTV, but also can be used to charge smart phones, other digital devicesm, etc.

Features:

1. ECO Series Mini DC UPS 100-240Vac With Overload,Overvoltage, Short Circuit Protection,

high capacity lithium battery UPS Long Backup to the loads

2. High compatibiliity, suitable for most digital products in the market.

3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set.

4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.

5. Built-in adapter allows wide AC voltage range(100-240Vac).



Specification:



Model

ECO
212 312 412 412P 1248P
Input Voltage 100-240Vac
Output

DC output Volatge

(optional )

5V/7.5V/9V/12V

5V/7.5V/9V/12V

5V/7.5V/9V/12V

9V/12V &

15V/24V (POE)





12V&48V(POE)

Voltage Select Choosing through the slide switch
Output Power(max) 12W 12W 12W&24W (total 36W) 12W&48W (total 60W)

Transfer

Time

0 ms
Battery
Type Lithium battery                                          Lead Acid battery

Qty &

Capacity

4400mAh 6600mAh         8800mAh 1.2V/2.3AH*1pc

Charging

Period

     Typical: 2-3 hours
Physical

Dimension

(mm)

                     165*105*26 108*183*29 268*144*51
Environment
Performance Temperature 0℃~40℃ ; Humanity20%~90%
Noise level Less than 40dB

Product specifications are subject to change without notice.

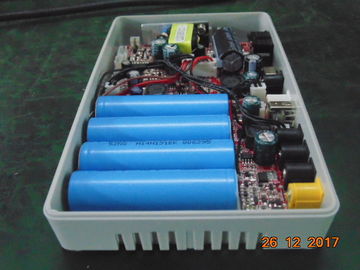

Mini DC G Tech UPS 15W 30W 60W Lithium Li - ion Battery For CCTV Router VOIP POE 0

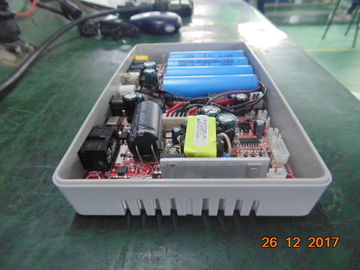

Mini DC G Tech UPS 15W 30W 60W Lithium Li - ion Battery For CCTV Router VOIP POE 1

Factory Profile:

G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.



The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.



OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

Mini DC G Tech UPS 15W 30W 60W Lithium Li - ion Battery For CCTV Router VOIP POE 2Mini DC G Tech UPS 15W 30W 60W Lithium Li - ion Battery For CCTV Router VOIP POE 3
