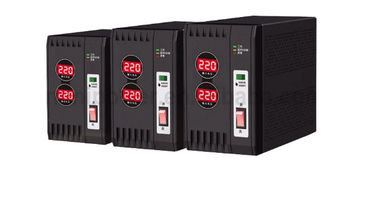

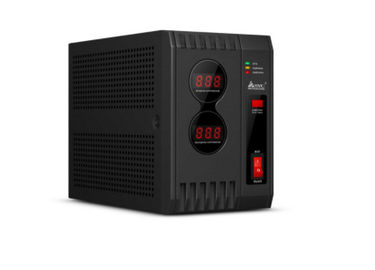

LED/LCD Display 1000VA Single Phase Voltage Regulator

LED/LCD Display 1000VA Single Phase Voltage Regulator

1000VA Automatic Voltage Regulator

LCD Display AVR Device

Place of Origin:

China

Brand Name:

Gtech

Certification:

CE Rohs

Model Number:

AVR

Contact Us
Request A Quote
Product Details
Product Name:
Single Phase High Precision AVR Series With Advantages Of High Precision Of Voltage Regulator
Display:
LED/LCD
Warranty:
2yeas
Output Voltage:
220Vac±10%
Input Voltage:
140V-280Vac
Rated Power:
1000VA-5000VA
Efficiency:
>95%
Power Range:
0.5-3KVA/5-10KVA/15-40KVA
Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

High Precision Automatic Voltage Regulator AVR Series Measuring and Test Equipment

Single Phase High Precision AVR Series with advantages of high precision of voltage regulator



This series is single phase high precision automatic voltage regulator(AVR)with advantages of high precision of voltage regulator, no waveform distortion and convenient operation and maintenance, reliable performance, etc. It has delay function and protections of over&low voltage, overload, high temperature, short circuit.

Feature:
*Advanced microcomputer digital control which can guarantee stable AC output in an instant of high or low voltage.
*Effectively suppress and purify short high-voltage spike and high frequency noise.
*With reliable protections of over&low voltage, overload, high temperature and short circuit.
*According to user’s requirement and situation of the electric equipment, long or short delay function is selectable while AVR is turning on.
Model AVR-600VA AVR-1000VA AVR-1500VA
Rated Power 600VA 1000VA 1500VA
INPUT
Input Voltage Range 140-280Vac
Frequnecy 45-65Hz
OUTPUT
Output Voltage Range 220Vac±10%
DISPLAY
LED Digital Display Status Input voltage ,output voltage
LED display Status Normal,delay,Fault
PROTECTION
ProtectionsOvert& low voltage,over load ,high temperature,short circult protection
PHYSICAL
Unit Dimensions(mm) 205*108*157.5
Net Weight(kg) 2.3 2.9 3.6
ENVIRONMENT
Enviroment of performance Temperature 0℃-40℃,Humidity 20%-90%
Noise  Less than 40dB



Production Instruction

This Series is single phase high precision automatic voltage regulator (AVR) with advantages of high precision of

voltage regulator,no waveform distortion and convenient operation and maitenance,reliable performance,etc. It

has Delay function and protections of over& low voltage,overload,high temperature,short circuit.



Field of application

Applicable for equipment of computer network,household electrical appliances,measuring and test equipment,calibration stand in factory,etc.
