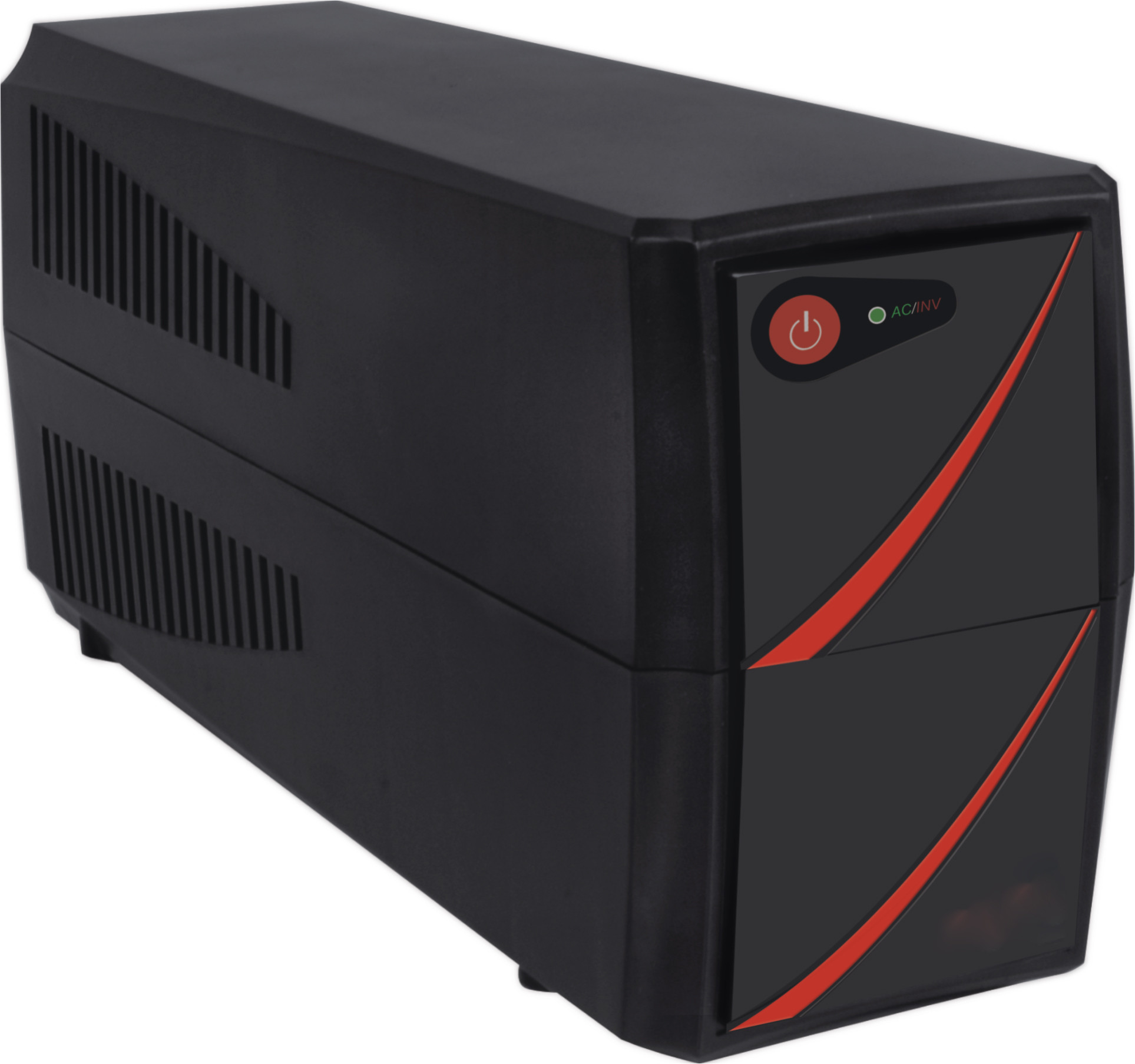

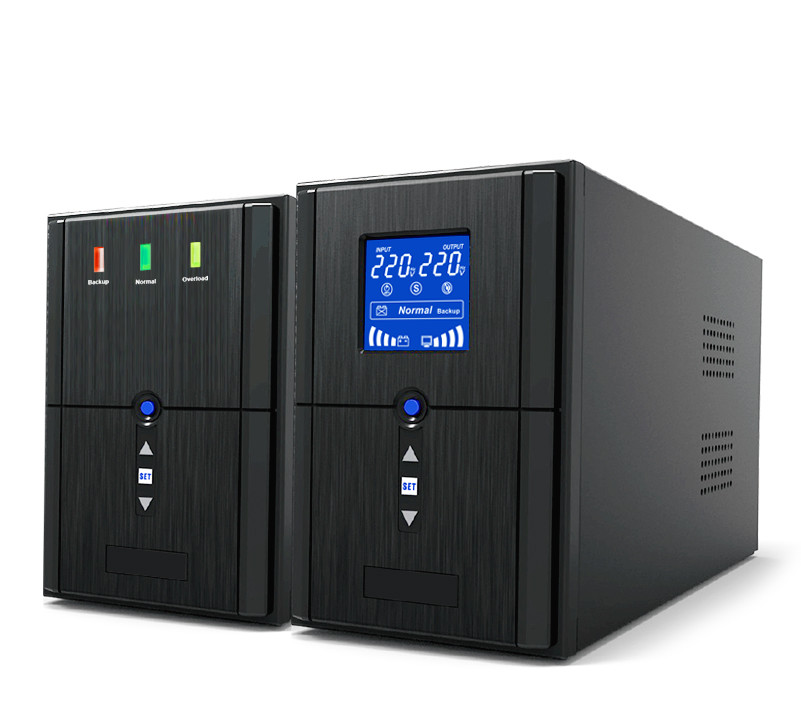

PWM Output Pure Sine Wave Line Interactive UPS

  • PWM Output Pure Sine Wave Line Interactive UPS
  • PWM Output Pure Sine Wave Line Interactive UPS
  • PWM Output Pure Sine Wave Line Interactive UPS
  • PWM Output Pure Sine Wave Line Interactive UPS
Place of Origin China
Brand Name G-Tech
Certification CE ROHS
Model Number V-400VA-3000VA
Minimum Order Quantity 500pcs
Price Negotiation
Packaging Details Carton packing
Delivery Time 7-25workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Voltage 220/230/240Vac Application PC, Router, POS Machine Communication Processor, Industrial Products
Display LED Or LCD Phase Single Phase
Input Voltage 220/230/240Vac Battery Type LiFePO4 Battery
Highlight

LiFePO4 Battery Line Interactive UPS

,

Single Phase Sine Wave UPS
Leave a Message
Product Description

Pure Sine Wave Line Interactive UPS LiFePO4 battery UPS For Computer Uninterruptible Power Supply Wide input voltage range



Feature

1.Auto re-starts when AC recovers

2.Silence setup

3.Automatic charging (offline charging)

4.Battery low voltage protection

5.Overload & short circuit protection

6.CPU controlled

7.Optional RJ45/11 & USB port

8.Wide input voltage range



Field of application

Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.



MODEL V-400 V-600 V-800 V-1000 V-1500 V-2000
CAPACITY 240W 360W 480W 600W 900W 1200W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC / 162-280 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation
(Batt. Mode)		 110/220 VAC±10%
Frequency Range
(Batt. Mode)		 60 Hz or 50 Hz ±1 Hz
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode) Simulated Sine Wave
BATTERY
Battery Type & Number 12v4.5ah*1 12v7ah*1 12v8ah*1 12v7ah*2 12v9ah*2 12v9ah*2
Typical Recharge Time 4-6 hours up to 90% capacity
INDICATORS
AC Mode The right green LED lighting & the 2nd to 5th
green LEDs gradually lighting indicating load level
Battery Mode The right green LED flashing & the 2nd to 5th
green gradually lighting indicating battery capacity
Fault NO Red lighting Red LED lighting
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
PROTECTION
Full Protection Overload, discharge, and overcharge protection
PHYSICAL
Dimension 279 x 101 x 142 350 x 146 x 160 397 x 146 x 205
Net Weight (kgs) 3.55 v 4.9 8.0 11.1 11.5
ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
* Product specifications are subject to change without further notice



PWM Output Pure Sine Wave Line Interactive UPS 0

PWM Output Pure Sine Wave Line Interactive UPS 1
