1U 500W Line Interactive Ups System With LiFePO4 Battery Pack

1U 500W Line Interactive Ups System With LiFePO4 Battery Pack

1U Line Interactive UPS System

LiFePO4 Battery Line Interactive Ups

500W Line Interactive Ups System

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Output Voltage::
220/230/240Vac Or 110/120Vac
PC, Router, POS Machine Communication Processor, Industrial Products
UPS Case:
Metal Case
Input Voltage:
220/230/240Vac Or 110/120Vac
Product Name:
1U Line Interactive UPS, 500W Line Interactive Ups System With LiFePO4 Battery Pack
Wave Form:
Pure Sine Wave
2 Years
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
export designed Carton
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000PCS per month
Product Description

1U Line Interactive UPS, 500W line interactive ups system with LiFePO4 battery Pack

Pure Sine Wave Line Interactive UPS 500W line interactive ups system
1. Double CPU controlled
2.Silence setup
3. Pure sine wave putput
4.Compatible with generator
5. Automatically transferred to battery mode when input over voltage or under voltage
6. Output overload and short circuit protection
7. can be connected to external battery for longer power supply
8. Powerful charging current 1A, 3A. 5A, 10A, 20A optional
Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.

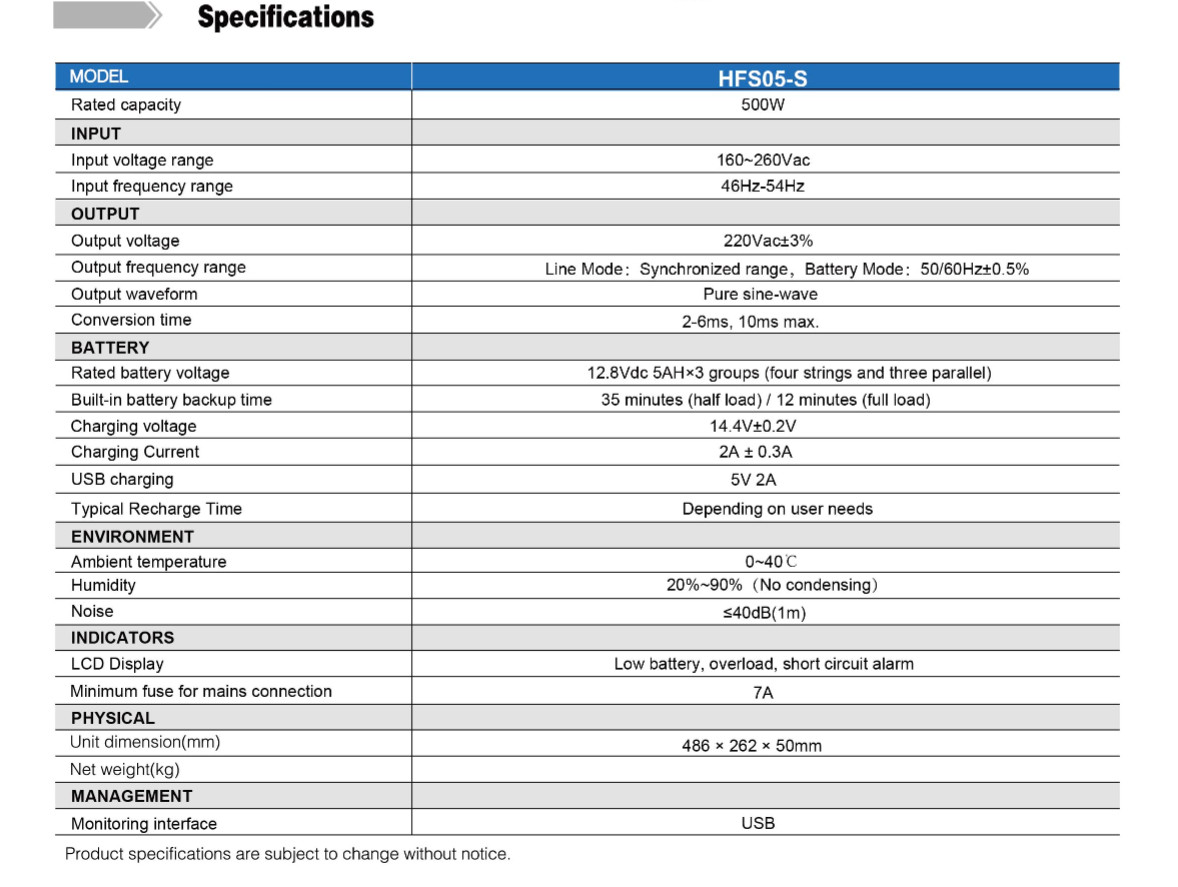

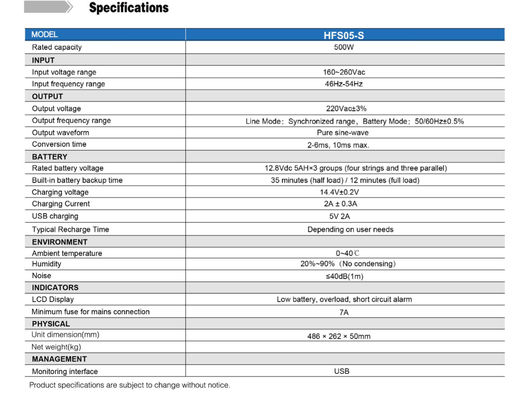

Model # HFS05-S
Capacity 500W
Display LCD
AC Mode
Input voltage range 160~260Vac
Input frequency 50Hz (48Hz-54Hz)
Output voltage range 200~240Vac
Efficiency ≥ 96% (AC mode)
Inverter Mode
Output voltage range 220Vac±5%
Output frequency 50±0.5Hz
Output wave form Pure sine wave
Transfer time Typical 2~6ms, Max.10ms.
Overload capability Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load
QTY & capacity of battery 3 pc*12V5Ah LiFePO4 Battery
Charging period 6~8 hours recover to 90% capacity
Charging current 2-5A
USB Optional
PROTECTIONS 1. Auto re-starts when AC recovers
2. Automatic charging (offline charging)
3. Battery low voltage protection
4. Overload & Short circuit protection
4. Over current protection (Breaker for AC mode; System automaticlly shut down wihin 20ms in Inverter mode).


Factory Profile:

G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.


The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.


OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

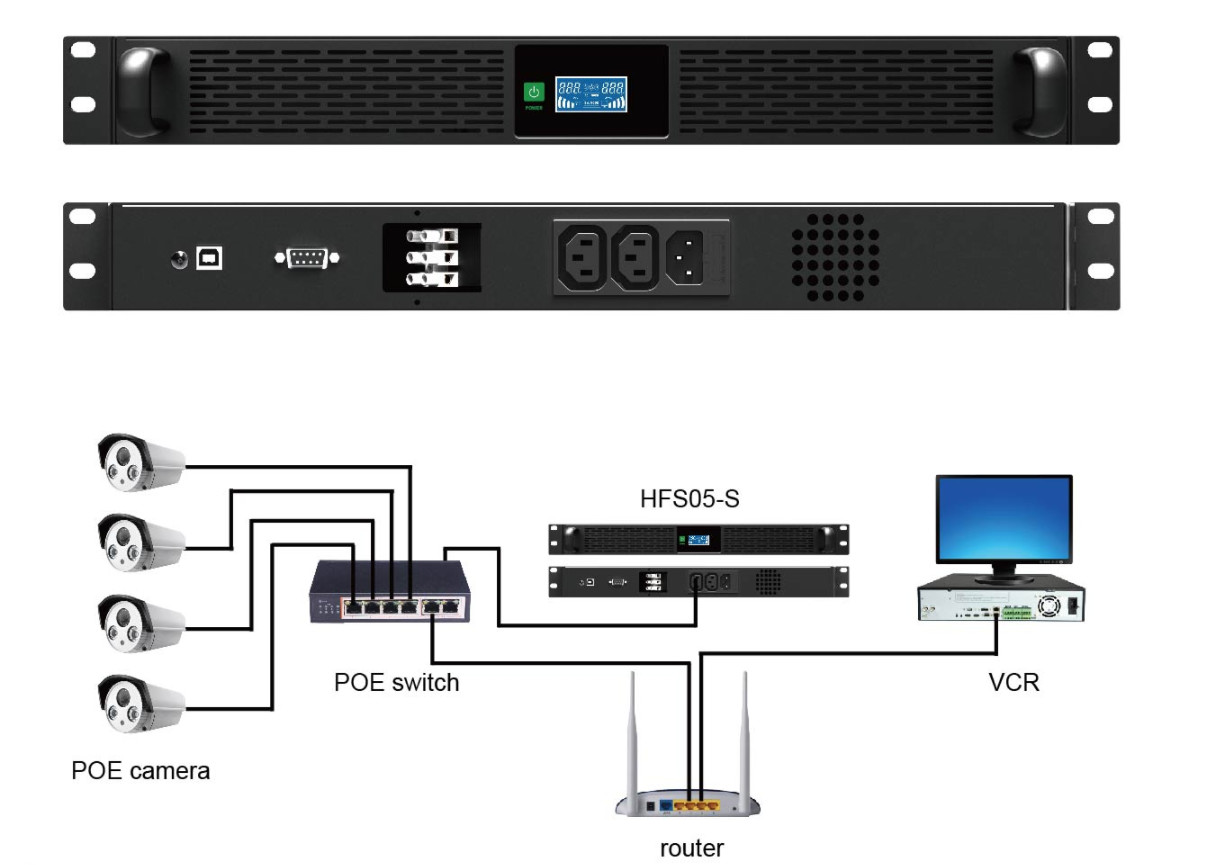

1U 500W Line Interactive Ups System With LiFePO4 Battery Pack 0

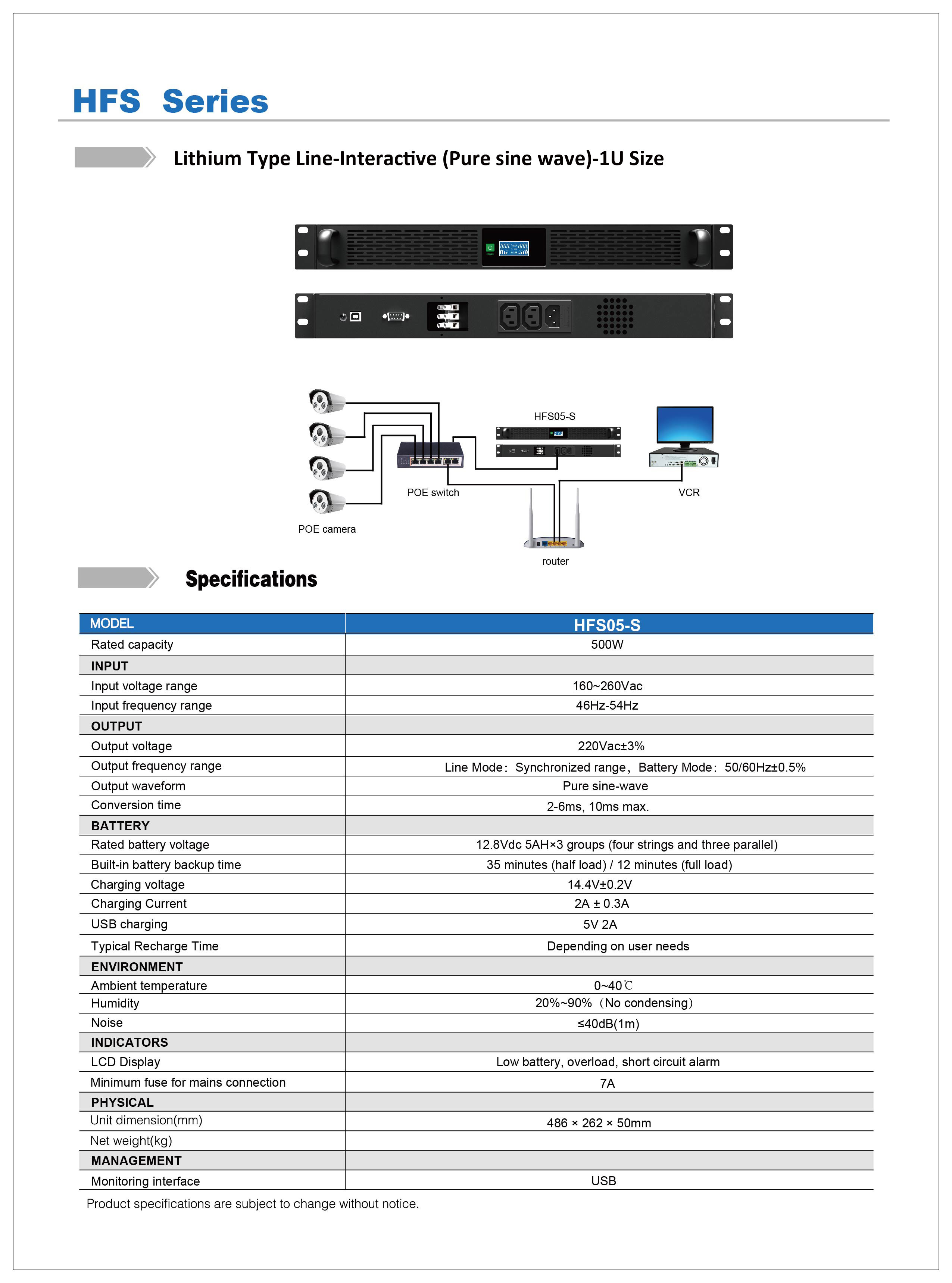

1U 500W Line Interactive Ups System With LiFePO4 Battery Pack 1
1U 500W Line Interactive Ups System With LiFePO4 Battery Pack 2
