xProduct Details
| Application | Transportation, Office, Medical Computer Room, Data Center. | Type | 3 Phase Online Rack Type Modular UPS |
|---|---|---|---|
| Phase | Three Phase In Three Phase Out | Product Name | RACK MODULAR UPS 20KVA-150KVA 3 PHASE ONLINE UPS |
| Battery | External Battery Cabinet | Capacity | 20kva-150kva UPS |
| Highlight | 20kva Modular Online UPS,150kva Modular Online UPS,150kva modular type ups |
||
Product Description
3 Phase Online Rack Modular Online UPS 20kva 150kva For Office
MQ-MR SERIES (RACK MODULAR UPS 20KVA-150KVA)
Capacity: 20-150KVA UPS
Features: 19' rack-mounted, 20/25KVA module, Output PF=1 UPS
Battery: external
Color: Black

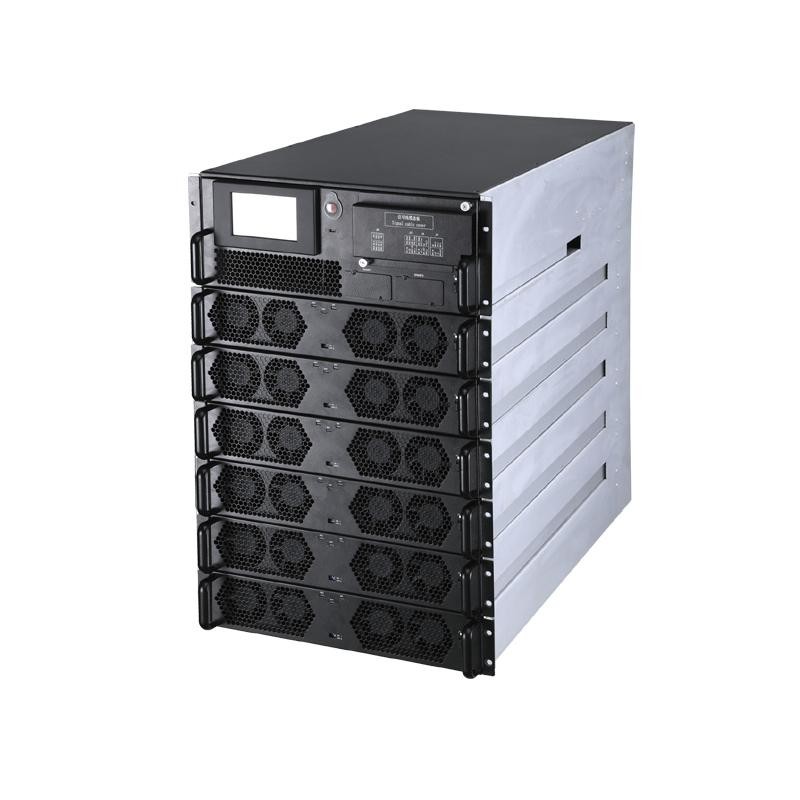

Description: MQ-MR SERIES is RACK MODULAR UPS 20KVA-150KVA and can parallel with 2/4/6 modules
Modular UPS Specification:
| Model | MQ-MR40/20 | ||||
| Rated Capacity | 40kVA | ||||
| Power Module Capacity | 20kVA | ||||
| Input | |||||
| Wiring Method | 3 Phase+N+PE | ||||
| Rated Voltage | 380/400/415VAC(line-line) | ||||
| Rated Frequency | 50/60Hz | ||||
| Voltage Range | 304VAC ～478VAC(line-line)full load； 304VAC ～228VAC (line-line) load derating linearly from 100% to 80% | ||||
| Frequency Range | 40Hz~70Hz | ||||
| Power Factor | >0.99 | ||||
| THD | THDi＜3％(linear full load)；THDi＜5％(non-linear full load) | ||||
| Bypass | |||||
| Rated Voltage | 380/400/415VAC(line voltage) | ||||
| Voltage Range | Factory setting -20%～+15%；settable, upper limit:+10%,+15%,+20%,+25%；lower limit:-10%,-15%, -20%, -30%,-40% | ||||
| Frequency Range | Rated frequency 50/60Hz；frequency range can be set ±1Hz,±3Hz,±5Hz | ||||
| Overload Capacity | 110% for long run ；>150% for 200ms | ||||
| Battery | |||||
| Battery Voltage | ±192VDC(360～528VDC；30～44 block settable,default is 32 blocks) | ||||
| Charging Capacity | 15%* total power capacity | ||||
| Voltage Accuracy | ±1% | ||||
| Output | |||||
| Rated Voltage | 380V/400V/415V(line-line) | ||||
| Rated Frequency | 50/60Hz | ||||
| Power Factor | 1 | ||||
| Voltage Accuracy | ≤±1.0%@ balanced load；≤±5.0%@ unbalanced load | ||||
| Frequency Accuracy | 50/60Hz±0.01% | ||||
| Frequency Tracking Range | Settable,±0.5Hz~±5Hz ;±3Hz | ||||
| THD | THDu≤2%(100% linear load),THDu≤4%( nonlinear load) | ||||
| Three-Phase Phase Accuracy | 120°±1° | ||||
| Crest Factor | 3:1 | ||||
| Overload | ＜105％,long run； ＜110％,60mins ； 110～125％,10mins； ＞125～150％,1mins； ＞150％,200ms | ||||
| System | |||||
| System Efficiency | 95%@ double conversion mode,≥98%@ECO mode | ||||
| Display | LCD touch screen | ||||
| Wiring | Support bottom in | ||||
| Language | Chinese, English; optional: Russian,Italian, Spanish, German, etc. | ||||
| Protection Class | IP20 | ||||
| Communication | RS232/RS485/SNMP card(optional)/ dry contact (optional) | ||||
| Working Condition | Temperature:0~40℃ ；humidity:0~95%( no condensation) | ||||
| Noise | <60dB@1 meter | ||||
| Altitude | <1000 meters, derating, ＞1000 meters, derating 1% if every 100 meters increased | ||||

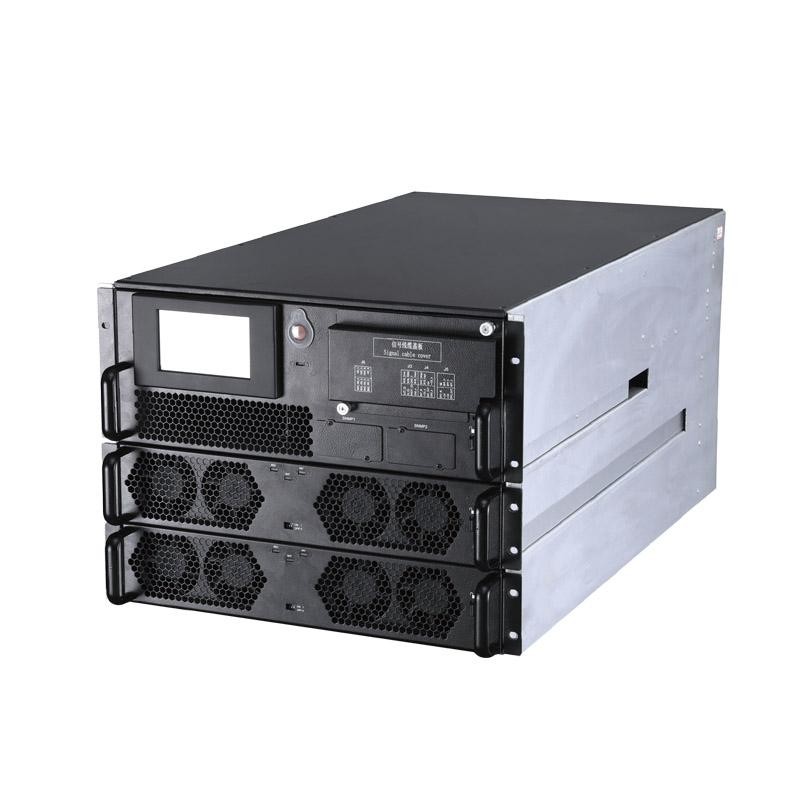

| Cabinet Type | 2 Modules | ||||
| Size | |||||
| System W x D x H (mm) | 482.6 x 800 x353.2(8U) | ||||
| Module W x D x H (mm) | 440 x 690 x 86(2U) | ||||
| Weight | |||||
| System(kg) | 37 | ||||
| Module(kg) | 25 | ||||
Application Field:
Finance, telecommunication, education, hospitals, transportation & other network devices, data centers.
Performance Characteristics
Intelligent Flexibility
1.Adjustable battery number: 30-44 units.
2.Easy installation,suitable for 19' cabinets.
3.Cold start function.
High Reliability
1.Self-load test function without loads.
2.Isolated air duct for key components.
3.Intelligent fan speed control.
4.Power module DSP 1+1 design.
