MQ-MR Series

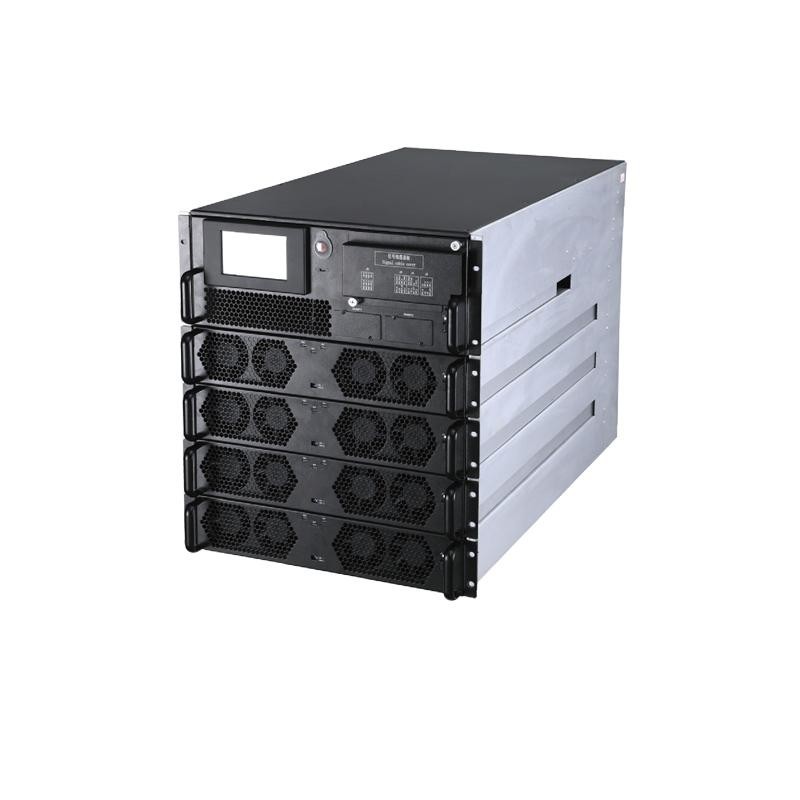

19 Inch Rack UPS Modular System 3 Phase 20kva To 150kva High Frequency
3 Phase UPS Modular UPS System UPS Power System 20KVA-150KVA
Features: 19' rack-mounted, 20/25KVA module, Output Power Factor: 1.0
Description: MQ-MR SERIES is RACK MODULAR UPS 20KVA-150KVA and can parallel with 2/4/6 modules
G-Tech Modular on line High Frequency UPS, Modular type UPS, uninterrupted power supply UPS
Specification:
|
Model |
MQ-MR40/20 |
MQ-MR80/20 |
MQ-MR100/25 |
MQ-MR125/25 |
MQ-MR150/25 |
|
Rated Capacity |
40kVA |
80kVA |
100kVA |
125kVA |
150kVA |
|
Power Module Capacity |
20kVA |
20kVA |
25kVA |
25kVA |
25kVA |
|
Input |
|||||
|
Wiring Method |
3 Phase+N+PE |
||||
|
Rated Voltage |
380/400/415VAC(line-line) |
||||
|
Rated Frequency |
50/60Hz |
||||
|
Voltage Range |
304VAC ～478VAC(line-line)full load； 304VAC ～228VAC (line-line) load derating linearly from 100% to 80% |
||||
|
Frequency Range |
40Hz~70Hz |
||||
|
Power Factor |
>0.99 |
||||
|
THD |
THDi＜3％(linear full load)；THDi＜5％(non-linear full load) |
||||
|
Bypass |
|||||
|
Rated Voltage |
380/400/415VAC(line voltage) |
||||
|
Voltage Range |
Factory setting -20%～+15%；settable, upper limit:+10%,+15%,+20%,+25%；lower limit:-10%,-15%, -20%, -30%,-40% |
||||
|
Frequency Range |
Rated frequency 50/60Hz；frequency range can be set ±1Hz,±3Hz,±5Hz |
||||
|
Overload Capacity |
110% for long run ；>150% for 200ms |
||||
|
Battery |
|||||
|
Battery Voltage |
±192VDC(360～528VDC；30～44 block settable,default is 32 blocks) |
||||
|
Charging Capacity |
15%* total power capacity |
||||
|
Voltage Accuracy |
±1% |
||||
|
Output |
|||||
|
Rated Voltage |
380V/400V/415V(line-line) |
||||
|
Rated Frequency |
50/60Hz |
||||
|
Power Factor |
1 |
||||
|
Voltage Accuracy |
≤±1.0%@ balanced load；≤±5.0%@ unbalanced load |
||||
|
Frequency Accuracy |
50/60Hz±0.01% |
||||
|
Frequency Tracking Range |
Settable,±0.5Hz~±5Hz ;±3Hz |
||||
|
THD |
THDu≤2%(100% linear load),THDu≤4%( nonlinear load) |
||||
|
Three-Phase Phase Accuracy |
120°±1° |
||||
|
Crest Factor |
3:1 |
||||
|
Overload |
＜105％,long run； ＜110％,60mins ； 110～125％,10mins； ＞125～150％,1mins； ＞150％,200ms |
||||
|
System |
|||||
|
System Efficiency |
95%@ double conversion mode,≥98%@ECO mode |
||||
|
Display |
LCD touch screen |
||||
|
Wiring |
Support bottom in |
||||
|
Language |
Chinese, English; optional: Russian,Italian, Spanish, German, etc. |
||||
|
Protection Class |
IP20 |
||||
|
Communication |
RS232/RS485/SNMP card(optional)/ dry contact (optional) |
||||
|
Working Condition |
Temperature:0~40℃ ；humidity:0~95%( no condensation) |
||||
|
Noise |
<60dB@1 meter |
||||
|
Altitude |
<1000 meters, derating, ＞1000 meters, derating 1% if every 100 meters increased |
||||
|
Cabinet Type |
2 Modules |
4 Modules |
6 Modules |
||
|
Size |
|||||
|
System W x D x H (mm) |
482.6 x 800 x353.2(8U) |
482.6 x 800 x 531(12U) |
482.6 x 900 x 800(18U) |
||
|
Module W x D x H (mm) |
440 x 690 x 86(2U) |
||||
|
Weight |
|||||
|
System(kg) |
37 |
47 |
72 |
||
|
Module(kg) |
25 |
||||
Description of Modular Online UPS
The intelligent integrated AC and DC modular power supply supports both AC and DC output and is provided with AC and AC isolation. Based on cutting-edge digital technologies, this new generation of intelligent environmental-friendly power supply system integrates DC current limiting, peak surge absorption, thorough automatic protection, unattended operation and smart remote monitoring, and meets the integrated AC and DC power supply requirements of distributed communication base station system.
This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.
Application Field:
Finance, telecommunication, education, hospitals, transportation & other network devices, data centers.
Green Performance:
1. Output Power Factor=1.
2. ECO mode for energy saving.
3. Low THDi and high input PF.
4. High efficiency.
