3000W 5000W High Frequency Pure Sine Wave Solar Inverter With MPPT

Basic Information
Place of Origin: China
Brand Name: G-tech
Certification: CE/RoHS/ISO
Model Number: VMH Series
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 21-25 days
Payment Terms: L/C, T/T
Supply Ability: 10,000PCS
Detail Information
Off-grid Control Applications: Back Up Power, Photovoltaic / Distributed Power Supply / Power System Split Control Display: LCD
Wave Form: Pure Sine Wave Protection: Overload 、Short Circuit And Temperature Protections
Capacity: 3000W-5000W Colour: Customized
Product Name: 3000W 5000W High Frequency Pure Sine Wave Solar Inverter With MPPT Charge Controller Type: Solar Inverter
Highlight:

3000W pure sine wave solar inverter

,

5000W pure sine wave solar inverter

,

MPPT pure sine wave inverter


Product Description

3000W 5000W High Frequency Pure Sine Wave Solar Inverter with MPPT charge controller

Inverter Features:



High frequency pure sine wave solar inverter for home usage
1. 450V wide PV circuit voltage can work for the load without battery connected (when the energy is sufficient)
2. Built in MPPT solar controller
3. Configurable AC/Solar input priority and output priority via LCD settings
4. Wide and selectable AC input voltage range
5. Multiple protections of battery over discharge, overload, over temperature, short circuit
6. Automatically turn on after the mains is restored
7. Cold start function
8. USB and RS232 monitoring functions

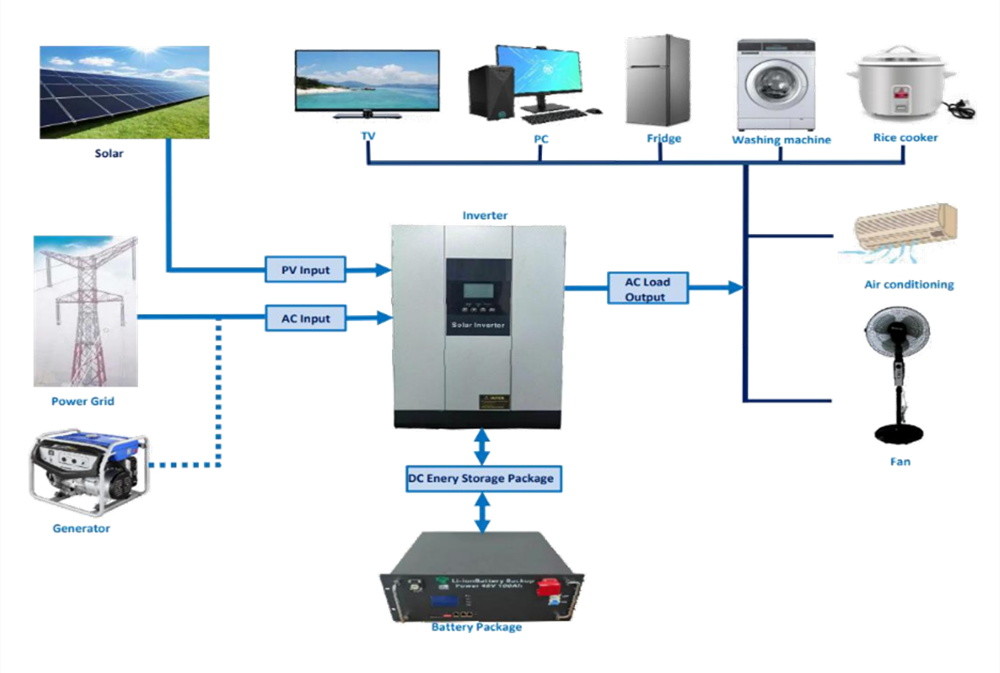

Inverter Applications:



- Household appliances: air conditioners, refrigerators, washing machines, LED light, Energy saving lamp, fluorescent lamp, Incandescent lamp, LCD TV, Electric fan, Electric kettle, Rice cooker, Soymilk machine, Induction cooker, Microwave oven, Electric oven, etc.....



- Power tool: jigsaws, sanders and buffers and drill



- Office Equipment: PC computers with monitors, Needle or inkjet printer, laser printer, facsimile machines



Specifications:

MODEL # VMH 3024 VMH 3048 VMH 5048
Rated Capacity 3000VA/3000W 5000VA/5000W
INPUT
Input Format L+N+PE
Rated Input Voltage 208/220/230/240VAC
Voltage Range 170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto Sensing)
OUTPUT
Output Format L+N+PE
Rated Output Voltage 208/220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Waveform Pure Sine Wave
Transfer Time 10ms(For Personal Computers),10ms(For Home Appliances)
Peak Power 6000VA 6000VA 10000VA
Overload Capacity Battery Mode: 1min@102%~110% Load 10s@110%~130%Load
3s@130%~150% Load 200ms@>150% Load
Peak Efficiency (Battery Mode) >93% >94% >94%
BATTERY
Rated Voltage 24 VDC 48 VDC 48 VDC
Constant Charging Voltage (Can Be Set) 28.2 VDC 56.4 VDC 56.4 VDC
Float Charging Voltage (Can Be Set) 27 VDC 54 VDC 54 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT MPPT MPPT
PV Maximum Input Power 4000W 4000W 5500W
MPPT Tracking Range 120~430 VDC 120~430 VDC 120~430 VDC
Maximum PV Input Voltage 450 VDC 450 VDC 450 VDC
Maximum PV Charge Current 80 A 80 A 80 A
Maximum Mains Charging Current 60 A 60 A 80 A
Maximum Charging Current 80 A 80 A 80 A

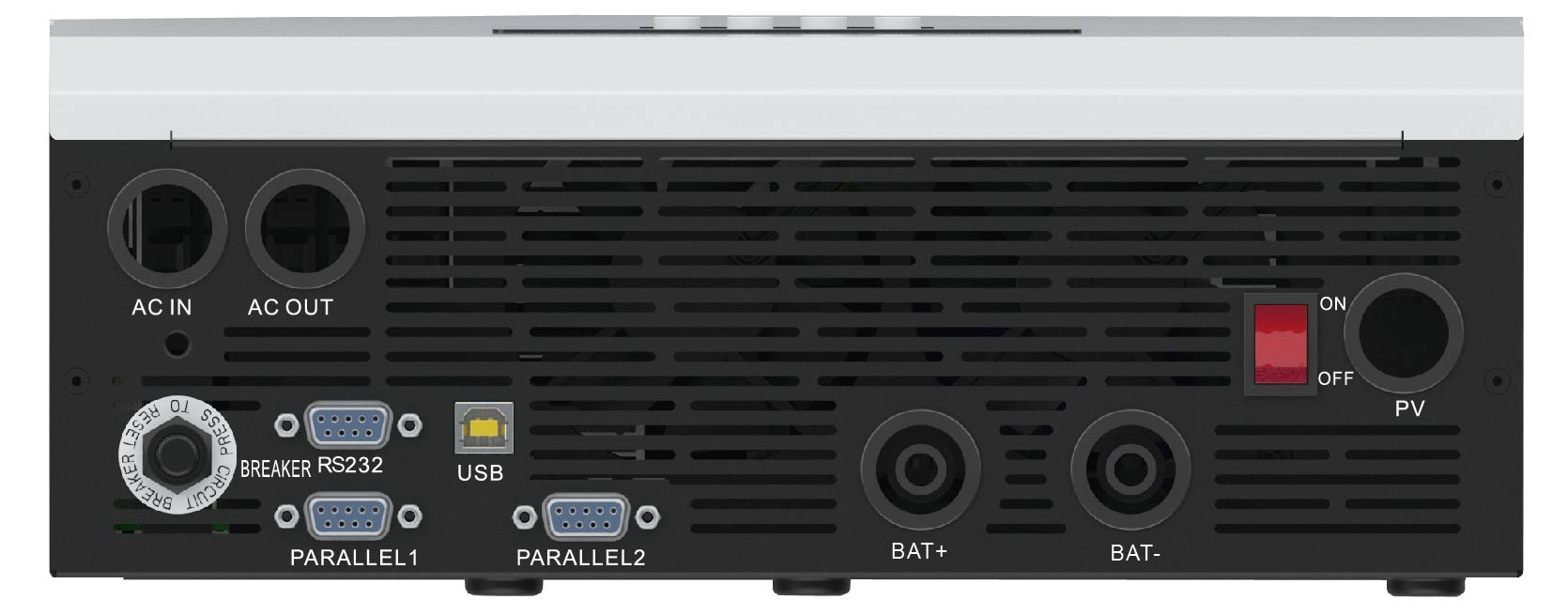

COMMUNICATION INTERFACE
RS232 5PIN/Pitch2.0mm,Baud Rate 2400
Expansion Slot Communication Interface 2×5PIN/Pitch2.54mm,Lithium Battery BMS Communication Card, WIFI Card, Dry Contact card, Etc.
Parallel Interface No Parallel With Parallel
Environmental Parameters
Operating Ambient Temperature 0~40℃
Operating Environment Humidity 20%~95%(Non-Condensing)
Storage Temperature -15~60℃
Altitude Altitude Should Not Exceed 1000m, Derating Above 1000m, Maximum 4000m, Refer to IEC62040
Noise ≤50db
PHYSICAL PARAMETERS
D×W×H(mm) 110×300×450
Weight (for Reference) 7kg 7kg 7.8kg
STANDARDS EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
  • Pure sine wave output
  • 450V wide PV circuit voltage can work for the load without battery connected (when the energy is sufficient)
  • Built in MPPT solar controller
  • Configurable AC/Solar input priority and output priority via LCD settings.
  • Wide and selectable AC input voltage range
  • Multiple protections of battery over discharge, overload, over temperature, short circuit
  • Automatically turn on after the mains is restored.
  • Cold start function
  • USB and RS232 monitoring functions
