Place of Origin:
China
Brand Name:
G-Tech
Certification:
ISO, CE, ROHS
Model Number:
Tower UPS

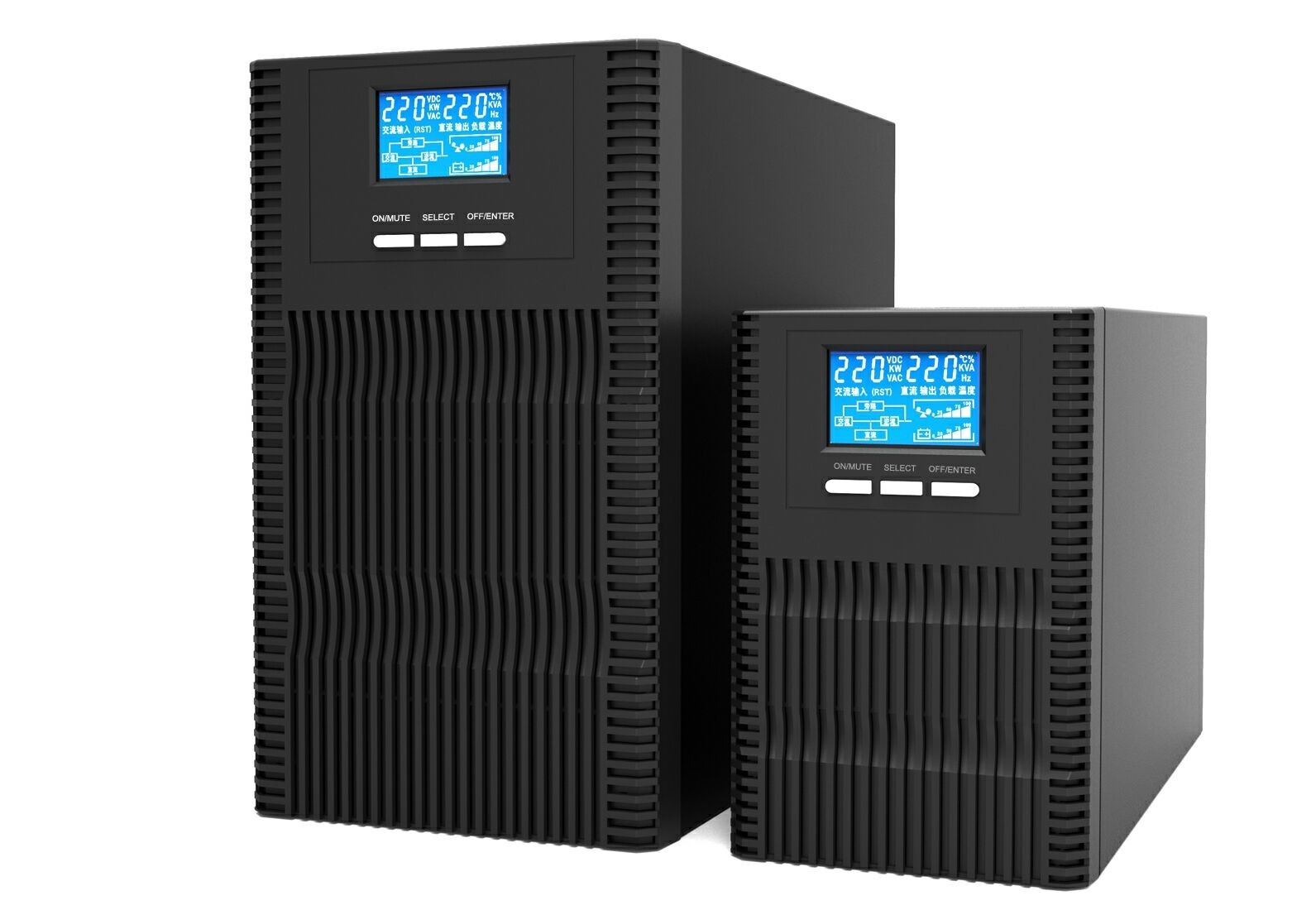

Pure Sine Wave High Frequency Online UPS Single Phase For Computer
Application
|
Model # |
PT-1KS |
PT-1KL |
PT-2KS |
PT-2KL |
PT-3KS |
PT-3KL |
|||
|
Capacity |
1KVA / 1KW |
2KVA / 2KW |
3KVA /3KW |
||||||
|
Display |
LCD |
||||||||
|
INPUT |
|||||||||
|
Voltage range |
Full load |
85~140 VAC or 160~280 VAC |
|||||||
|
half load |
55~150 VAC or 110~300 VAC |
||||||||
|
Frequency Range |
40Hz~70Hz |
||||||||
|
Phase |
Single phase with ground |
||||||||
|
Power factor |
≥ 0.99 @ 220-230 VAC (input voltage) |
||||||||
|
OUTPUT |
|||||||||
|
Output voltage range |
100/110/115/120/127VAC or 200/208/220/230/240VAC |
||||||||
|
AC Voltage Regulation |
± 1% (Batt. Mode) |
||||||||
|
Frequency Range |
Line Mode: (Synchronized Range) , Batt. Mode: 50/60Hz±0.1% |
||||||||
|
Overload |
Line Mode: 1min@105%~125%Load 30s@125~150% Load 0.5ms@>150%Load |
||||||||
|
Current Crest Ratio |
3:1 |
||||||||
|
Harmonic Distortion |
≤2% THD (Linear load); ≤5% THD (non-linear load) |
||||||||
|
Transfer time |
AC Mode to Batt. Mode: Zero |
||||||||
|
Inverter to Bypass: 4ms (Typical) |
|||||||||
|
Wave form (Batt. Mode) |
Pure Sine Wave |
||||||||
|
EFFICIENCY |
|||||||||
|
AC Mode |
Peak efficiency 93% |
Peak efficiency 94% |
Peak efficiency 94% |
||||||
|
Full load efficiency 90% |
Full load efficiency 91% |
Full load efficiency 91% |
|||||||
|
BATTERY |
|||||||||
|
Battery type ( standard model) |
12 / 7AH |
||||||||
|
Capacity & quantity of battery |
2pcs*12V7Ah |
------- |
6(4)pcs*12V7Ah |
------- |
6(8)*12V7Ah |
------- |
|||
|
External battery norminal DC voltage |
------- |
36VDC |
------- |
72VDC |
------- |
96VDC |
|||
|
Recharge Time |
4 hours recover to 90% capacity ( Typical) , depends on users' needs |
||||||||
|
Charging Current |
1.0 (default) 1~12A(settable) External battery pack |
1~12A(settable) |
1.0 (default) 1~12A(settable) External battery pack |
1~12A(settable) |
1.0 (default) 1~12A(settable) External battery pack |
1~12A(settable) |
|||
Protection of G Tech UPS
Low alarm voltage / comeback voltage
Shutdown voltage / comeback voltage
DC protection
Overcharge protection / comeback voltage
Leakage current
Over discharge protection
Company Introduction
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.
We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
