19 Inch Rack Mounted Modular Online UPS 40kva Three Phase For Telecommunication
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 19" Rack Mounted Modular UPS | Application | Telecommunication,education,hospitals |
|---|---|---|---|
| Phase | Three Phase In Three Phase Out | Product Name | MODULAR TYPE UPS RACK MODULAR UPS MQ-MR SERIES 20KVA-150KVA |
| Battery | External Battery Cabinet | Capacity | 40kva Modular Online UPS |
| Highlight | Rack Mounted Modular Online UPS,19 Inch Modular Online UPS,Telecommunication modular ups |
||
Product Description

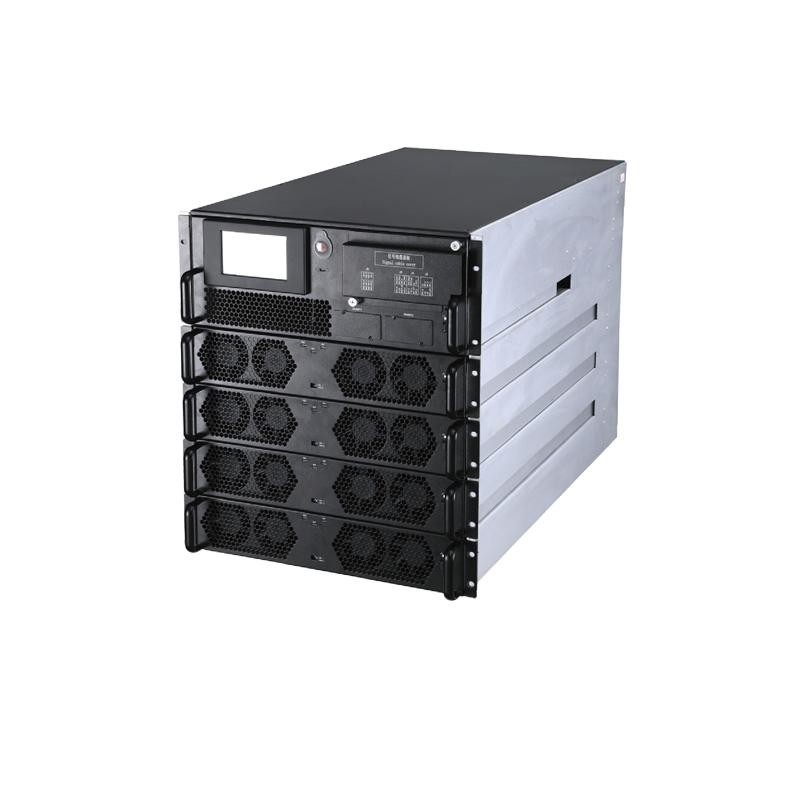

19" Rack Mounted 40kva Three Phase Modular Online UPS For Telecommunication
Capacity: 40 KVA UPS
Features: 19' rack-mounted, 20KVA module, Output PF=1 UPS
Description: MQ-MR SERIES is RACK MODULAR UPS 20KVA-150KVA and can parallel with 2/4/6 modules
40KVA Modular UPS Specification:
|
Rated Capacity |
40kVA |
||||
|
Power Module Capacity |
20kVA |
||||
|
Input |
|||||
|
Wiring Method |
3 Phase+N+PE |
||||
|
Rated Voltage |
380/400/415VAC(line-line) |
||||
|
Rated Frequency |
50/60Hz |
||||
|
Voltage Range |
304VAC ～478VAC(line-line)full load； 304VAC ～228VAC (line-line) load derating linearly from 100% to 80% |
||||
|
Frequency Range |
40Hz~70Hz |
||||
|
Power Factor |
>0.99 |
||||
|
THD |
THDi＜3％(linear full load)；THDi＜5％(non-linear full load) |
||||
|
Bypass |
|||||
|
Rated Voltage |
380/400/415VAC(line voltage) |
||||
|
Voltage Range |
Factory setting -20%～+15%；settable, upper limit:+10%,+15%,+20%,+25%；lower limit:-10%,-15%, -20%, -30%,-40% |
||||
|
Frequency Range |
Rated frequency 50/60Hz；frequency range can be set ±1Hz,±3Hz,±5Hz |
||||
|
Overload Capacity |
110% for long run ；>150% for 200ms |
||||
|
Battery |
|||||
|
Battery Voltage |
±192VDC(360～528VDC；30～44 block settable,default is 32 blocks) |
||||
|
Charging Capacity |
15%* total power capacity |
||||
|
Voltage Accuracy |
±1% |
||||
|
Output |
|||||
|
Rated Voltage |
380V/400V/415V(line-line) |
||||
|
Rated Frequency |
50/60Hz |
||||
|
Power Factor |
1 |
||||
|
Voltage Accuracy |
≤±1.0%@ balanced load；≤±5.0%@ unbalanced load |
||||
|
Frequency Accuracy |
50/60Hz±0.01% |
||||
|
Frequency Tracking Range |
Settable,±0.5Hz~±5Hz ;±3Hz |
||||
|
THD |
THDu≤2%(100% linear load),THDu≤4%( nonlinear load) |
||||
|
Three-Phase Phase Accuracy |
120°±1° |
||||
|
Crest Factor |
3:1 |
||||
|
Overload |
＜105％,long run； ＜110％,60mins ； 110～125％,10mins； ＞125～150％,1mins； ＞150％,200ms |
||||
|
System |
|||||
|
System Efficiency |
95%@ double conversion mode,≥98%@ECO mode |
||||
|
Display |
LCD touch screen |
||||
|
Wiring |
Support bottom in |
||||
|
Language |
Chinese, English; optional: Russian,Italian, Spanish, German, etc. |
||||
|
Protection Class |
IP20 |
||||
|
Communication |
RS232/RS485/SNMP card(optional)/ dry contact (optional) |
||||
|
Working Condition |
Temperature:0~40℃ ；humidity:0~95%( no condensation) |
||||
|
Noise |
<60dB@1 meter |
||||
|
Altitude |
<1000 meters, derating, ＞1000 meters, derating 1% if every 100 meters increased |
||||
|
Cabinet Type |
2 Modules |
||||
|
Size |
|||||
|
System W x D x H (mm) |
482.6 x 800 x353.2(8U) |
||||
|
Module W x D x H (mm) |
440 x 690 x 86(2U) |
||||
|
Weight |
|||||
|
System(kg) |
37 |
||||
|
Module(kg) |
25 |
||||
Green Performance:
1.Output PF=1.
2.ECO mode for energy saving.
3.Low THDi and high input PF.
4.High efficiency.
Protection of G Tech UPS
Low alarm voltage / comeback voltage
Shutdown voltage / comeback voltage
DC protection
Overcharge protection / comeback voltage
Leakage current
Over discharge protection
Our Service:
1% spares together with shipment for urgent issue.
All of the necessary documents such as drawing, manual etc.
We will provide the online service by mail.
You can get expert guides from us all the time.
One year warranty.
