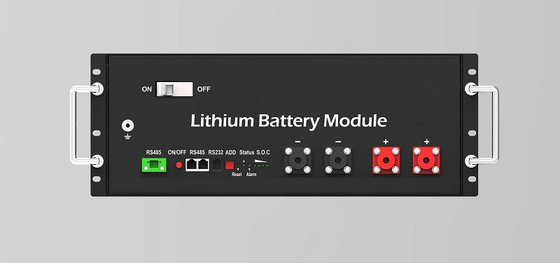

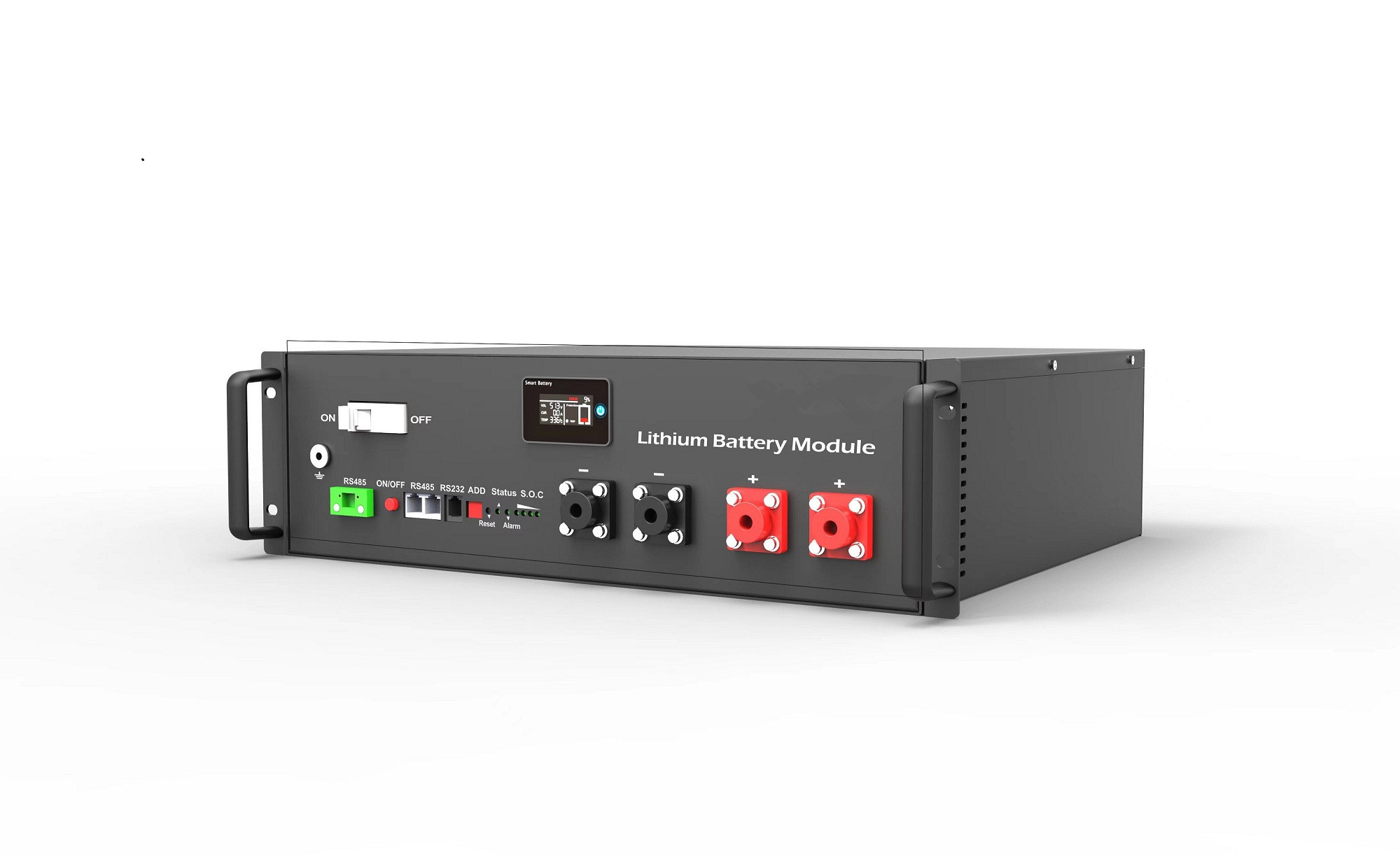

50AH 100AH Lithium LiFePO4 Rack Mount Battery Wholesale
48V 100AH Lifepo4 Battery Pack, lifepo4 battery pack suppliers
Battery Description:
Smart LFP series LiFePO4 battery is a high-tech product developed for the requirements of new backup power supply and household renewable energy storage. Built-in intelligent BMS to protect the battery pack at any time and prolong its service life, modular design enables parallel installation for larger power back up.
Features:
1. Long lifespan time with 5000 cycles and 5 years warranty, 10 years life design
2. 4U rack-mount chassis design is easy for parallel expansion and maintenance
3. Smart BMS system to optimize the performance
4. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
5. All around protection: such as SOC/SOH/ Anti-theft function etc
6. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
7. Maximum of 16 battery packs can be connected in parallel
8. With front display to know effectively the status of the batteries
| MODEL # | LFP 24-100 | LFP 48-50 | LFP 48-100 |
| SPECIFICATION | |||
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Model | 25.6V100AH | 51.2V50AH | 51.2V100AH |
| Nominal Capacity(25℃,0.2C)WH | 2560Wh | 2560Wh | 5120Wh |
| Adjustable working voltage(Vdc) | 22.4～29.2V | 44.8～58.4V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 28V | 56V | 56V |
| Max.Continuous discharge current(A) | 100 | 100 | 100 |
| Max.pulse discharge current(A) | 150A 1Sec. | 100A 1Sec. | 150A 1Sec. |
| Max.Continuous charge current(A) | 100 | 50 | 100 |
| Cycle life(+25℃ 0.2C 80% DOD) | ＞5000 Cycles | ＞5000 Cycles | ＞5000 Cycles |
| Cell Equalizer Current(A | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) |
| Terminal | M6 | ||
| Storage duration | 6 months at 25℃ | ||
| Safety standard | IEC62619,UN38.3,MSDS,CE | ||
| Communication function | RS484/UART/SNMP/Wifi/Bluetooth | ||
| PROTECTION | |||
| Protection | Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection | ||
| AMBIENT | |||
| Noise(dB) | ＜40dB(1 meter) | ||
| Working temperature | -20℃～+60℃ | ||
| Humidity | 0～95%(no condensation) | ||
| Altitude(m) | <3000 | ||
| DIMENSION | |||

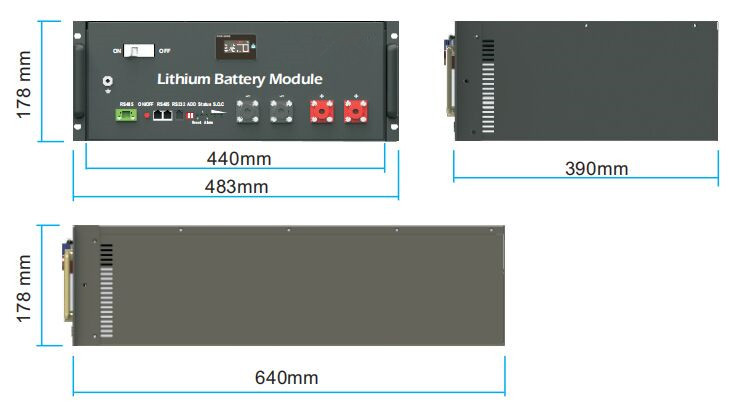

| L*W*H( size)mm | L405*W483*H178mm | L655*W483*H178mm | |
| L*W*H(package size)mm | L440*W518*H213mm | L690*W518*H213mm | |
| Net Weight(Kg): | Approx.35kg | Approx.72kg | |
| Gross Weight(Kg): | Approx.39kg | Approx.78kg | |
