Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE; ROHS
Model Number:
V600-V2000

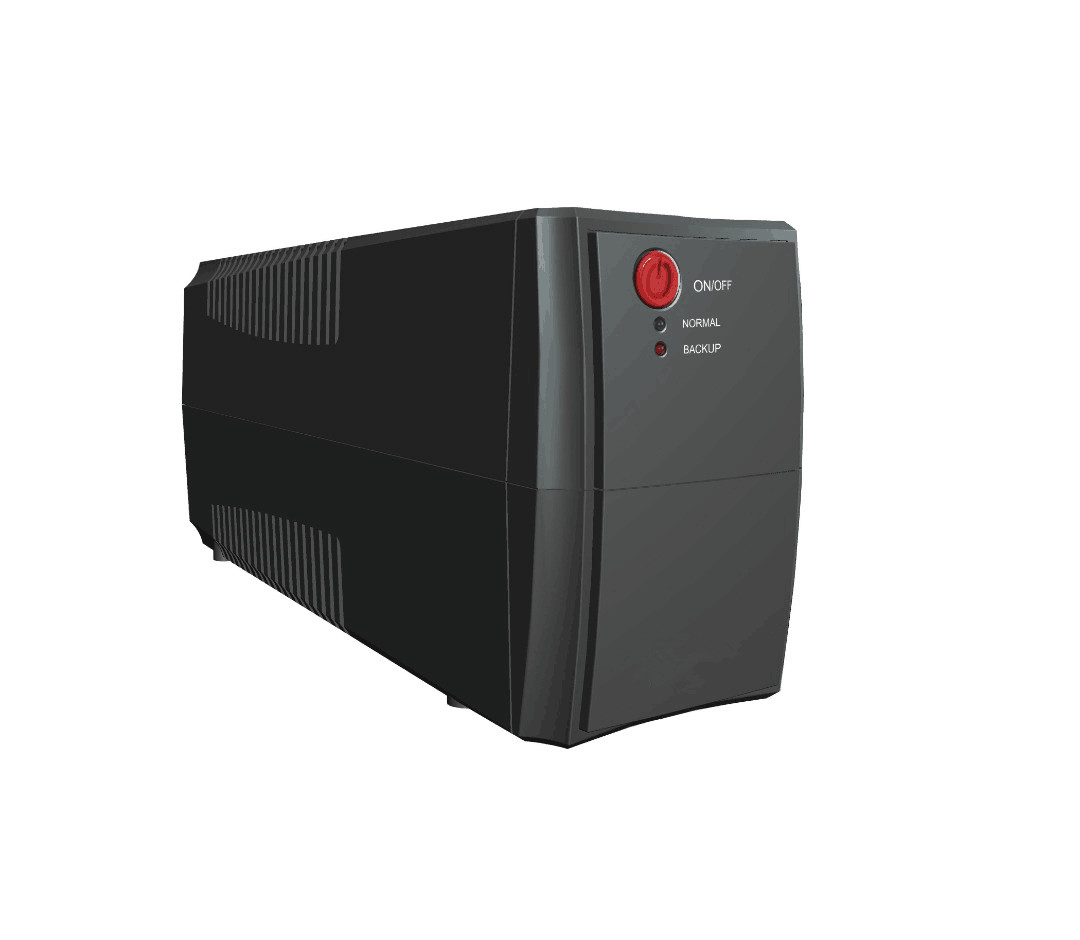

Line Interactive Offline 500VA 300W PWM UPS For Home Power Backup
Off Line Standby UPS For Home Power Backup
• Excellent microprocessor control guarantees high reliability
• Boost and buck AVR for voltage stabilization
• Auto restart while AC is recovering
• Simulated sine wave
• Off-mode charging
• Cold start function
• Generator compatible
PWM UPS (Pulse Width Modulation Uninterruptible Power Supply) is an uninterruptible power supply system with high efficiency and stability, which is mainly used to protect electronic equipment from working without interruption during power failure and power fluctuation. Its application fields mainly include the following aspects:
Communication industry: PWM UPS is widely used in the communication industry to protect the stable operation of communication equipment, such as switches, routers, relay stations, etc.
Financial industry: Computer equipment in the financial industry requires highly stable power protection. PWM UPS can effectively guarantee the stable operation of computers, such as computer equipment in banks, securities and other financial institutions.
Medical industry: In hospitals and other medical institutions, many medical devices require stable power protection. PWM UPS can ensure that these devices can work uninterrupted in case of sudden power failure or power fluctuations, such as electrocardiographs, ventilators, operating tables, etc.
Specification
MODEL | V-525 | V-625 | |
Capacity | 500VA/300W | 600VA/360W | |
INPUT | |||
Input Voltage | 110/120Vac or 220/230/240Vac | ||
Intput Voltage Range | 90~132Vac/175~265Vac | 85~150Vac/145~290Vac | |
Frequency Range | 45~65Hz | ||
OUTPUT | |||
Output Voltage | 110/120Vac or 220/230/240Vac | ||
Output Voltage Range | 90~132Vac/175~265Vac | 102-132Vac/200~255Vac | |
Output Frequency | 60±0.5Hz or 50±0.5Hz(Batt.Mode) | ||
Output Wave Form | PWM(Batt.Mode) | ||
Transfer Time | Typical(2-6ms),10ms max | ||
BATTETRY | |||
Qty.& Capacity of Battery | 12V/4AH*1pc | 12V/7AH*1pc | |
Charging Period | 4-6hours recover to 90% capacity | ||
PROTECTION | |||
Full Protection | Low Voltage &overload&short circuit protection | ||
PHYSICAL | |||
Net Weight(kg) | 4.4 | 5 | |
Unit Dimensions(mm) | 255*98*140 | 300*95*140 | |
ENVIRONMENT | |||
Environment of Performance | Tempreture 0℃-40℃,Humidity 20%-90% | ||
Noise level | ≤40dB(1m) | ||
MANAGEMENT | |||
LCD or LED,RJ45/11&USB | Optional |
