Place of Origin:
China
Brand Name:
Gtech
Certification:
CE/ROHS
Model Number:
PT
Description:

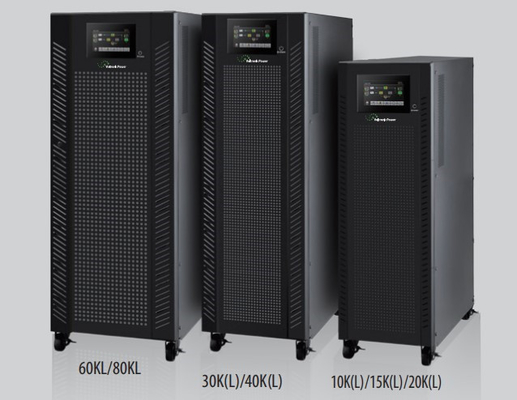

Gtech 3-phase UPS is the most efficient way to deliver power to the load levels typically higher than 10KW such as data centers or industrial applications. This online Double Conversion delivers the highest level of power quality and is typically used to protect critical loads, which allows the inverter to generate excellent output power, free of any voltage and frequency fluctuations on the main power supply.
Batteries are connected (lead acid or lithium batteries) to the system and provide the reliable power back-up when AC input fails with zero transfer time. When AC input power is on, the UPS rectifier resumes carrying the load and begins charging the batteries, then power supply is delivered by the batteries through the inverter. This topology optimizes UPS efficiency and this 3 phase UPS is widely used for data centers, computer rooms, telecommunications and transportation applications
What's Special:
• True double-conversion
• DSP technology guarantees high performance
• Output power factor 1 and active power factor correction
• 50Hz/60Hz frequency converter mode
• ECO energy saving mode and EPO(Emergency power off) function
• Generator compatible
• SNMP+USB+RS-232 multiple communications
• 3-stage extendable charging design for optimized battery performance
• Adjustable battery numbers for long-run model
• Maintenance bypass available
• Parallel operation available
• Optional isolation transformer(noise rejection mode)
• Power walk-in function
Specifications:
| MODEL | 10K (L)* | 15K(L) | 20K (L)* | 30K (L)* | 40K (L) | 60KL | 80KL | |||
| PHASE | 3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out | 3-phase in / 3-phase out | ||||||||
| CAPACITY | 10KVA /10KW | 15KVA /15KW | 20KVA /20KW | 30KVA /30KW | 40KV /40KW | 60KVA /60KW | 80KVA /80KW | |||
| PARALLEL CAPABILITY | up to 4 units in parallel | up to 6 units in parallel | ||||||||
| INPUT | ||||||||||
| Nominal Voltage | 3X400Vac (3Ph+N) /230Vac(1Ph+N) | 3 x 380/400/415 VAC (3Ph+N) | ||||||||
| Voltage Range | 110-300 VAC @ 50% load 176-276 VAC @ 100% load |
-30% ~ +20% | ||||||||
| Frequency Range | 46~54 Hz or 56~64Hz | 40~70 Hz | ||||||||
| Power Factor | ≧ 0.99 @ 100% Load | |||||||||
| Harmonic Distortion (THDi) | < 4% at full linear load | |||||||||
| OUTPUT | ||||||||||
| Output Voltage | 3X380/400/415Vac (3Ph+N) or 208/220/230/240 VAC (1Ph+N) | 3 x 360*/380/400/415 VAC (3Ph+N) | ||||||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | |||||||||
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | |||||||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | 50/60 Hz ± 1% | ||||||||
| Current Crest Ratio | 3:1 (max.) | |||||||||
| Harmonic Distortion | ≦ 2% THD (Linear Load) ; ≦ 5 % THD (Non-linear Load) | |||||||||
| Transfer Time |
AC Mode to Batt. Mode | Zero | ||||||||
| Inverter to Bypass | Zero | |||||||||
| Waveform (Batt. Mode) | Pure Sine wave | |||||||||
| Overload Capability |
AC Mode | 100-110% for 60 min, 110-125% for 10 min, 125%~150% 1min, >150% immediately | ||||||||
| Battery Mode | 100-110% for 60 min, 110-125% for 10 min, 125%~150% 1min, >150% immediately | |||||||||
| BYPASS | ||||||||||
| Nominal Voltage | 3 x 380/400/415 VAC (3Ph+N) | |||||||||
| Voltage Range | -30% ~ +20% (Adjustable) | |||||||||
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | |||||||||
| Overload Capability | > 130% 1 minute (default) ; continuously working until breaker protection (optional) | |||||||||
| EFFICIENCY | ||||||||||
| AC Mode | 95.5% | 96.0% | ||||||||
| ECO Mode | 98.5% | 99.0% | ||||||||
| Battery Mode | 94.5% | 96.0% | ||||||||
| BATTERY | ||||||||||
| Standard Model |
Battery Type | 12V Lead Acid | 12V Lead Acid | 12 V/7 Ah | 12 V/9 Ah | N/A | ||||
| Numbers | (10+10) PCS | (16+16) PCS | (16+16) pcs x 2 strings | |||||||
| Typical Recharge Time | 4 hours recover to 90% capacity | 9 hours recover to 90% capacity | ||||||||
| Charging Current (max.) | 2A (Adjustable) | 1A ~ 12A | 1A ~ 16 A (Adjustable) | |||||||
| Charging Voltage | +/-13.65V*N (N = 10) | +/-13.65V*N (N = 16~20) | +/-218 VDC ± 10% | |||||||
| Long-run Model |
Battery Type | Depending on the applications | ||||||||
| Numbers | 20PCS | 32PCS | +/-16 pcs ~ +/- 20 pcs (Adjustable) | |||||||
| Charging Current (max.) | 1A/2A/3A/4A/5A/6A/7A/8A/9A/10A/11A/12A (Adjustable)12A maximum | 1A ~ 12A (Adjustable) | 1A~16 A (Adjustable) | 2A~24 A (Adjustable) | 2A~32A(Adjustable) | |||||
| Charging Voltage | +/-136.5VDC±10% | +/-13.65V x N (N=16~20) | ||||||||
| INDICATORS | ||||||||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | |||||||||
| PHYSICAL | ||||||||||
| Standard Model |
Dimension,DxWxH (mm) | 630 x 250 x 826 | 815 x 300 x 1000 | N/A | ||||||
| Net Weight (kgs) | 103 | 139 | 225 | 250 | ||||||
| Long-run Model |
Dimension,DxWxH (mm) | 630 x 250 x 826 | 815 x 300 x 1000 | 790 x 360 x 1010 | ||||||
| Net Weight (kgs) | 36 | 43 | 60 | 67 | 108 | 113 | ||||
| ENVIRONMENT | ||||||||||
| Operation Temperature | 0-40°C | |||||||||
| Operation Humidity | < 95% and non-condensing | |||||||||
| Altitude** | 0 ~ 1500m at full load | |||||||||
| Noise Level | Less than 60 dB@1 Meter | Less than 65 dB @1 Meter | Less than 63 dB @1 Meter | Less than 65 dB @1 Meter | ||||||
| MANAGEMENT | ||||||||||
| Smart RS-232 / USB | Supports Windows® Family, Linux and MAC | |||||||||
| Optional SNMP | Power management from SNMP manager and web browser | |||||||||
