Place of Origin:
China
Brand Name:
G-Tech
Certification:
ISO, CE
Model Number:
PT Series Online UPS

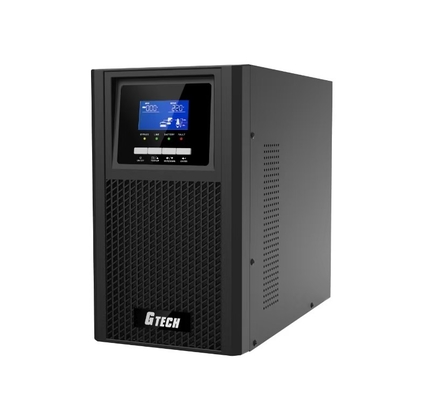

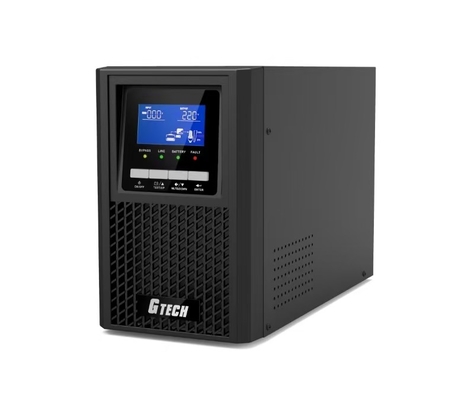

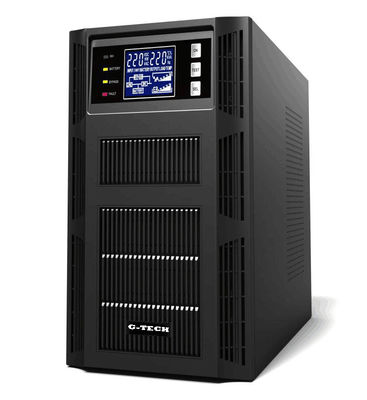

Uninterruptible Power Supply 2KVA 2KW Single Phase High Frequency Online UPS
Production Introduction:
This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds
of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.
UPS Specification:
| Model | PT-1KS | PT-1KL | PT-2KS | PT-2KL | PT-3KS | PT-3KL | ||
| Capacity | 1KVA/1000W | 2KVA/2000W | 3KVA/3000W | |||||
| Display | LCD | |||||||
| INPUT | ||||||||
| Input voltage range |
110~300VAC,110~176VAC,276~300VAC(power limited)
|
|||||||
| Input frequency range |
50/60Hz±6Hz,± 10Hz (setable)
|
|||||||
| OUTPUT | ||||||||
| Output voltage range | 208/220/230/240VAC | |||||||
| Output frequency | AC mode: same as AC ,Battery mode:50/60Hz±1% | |||||||
| Wave form | Pure Sinewave | |||||||
| Transfer time | 0ms | |||||||
| BATTERY | ||||||||
| QTY & capacity of battery | 2pc*12V7Ah | -------------- | 4pc*12V7Ah | ------------- | 6pc*12V7Ah | ---------- | ||
| Charging period | 4~6 hours recover to 90% capacity | |||||||
| PROTECTION & FUNCTION | ||||||||
| PROTECTION | 1. Battery low voltage protection 2. Overload protection 3. Short circuit protection |
|||||||
| MANAGEMENT | ||||||||
| RS232 & USB | Optional | |||||||
| PHYSICAL | ||||||||
| Unit dimension (mm) | 350*145*230 | 410*190*325 | 410*190*325 | |||||
| Master box dimension (mm) | 485*455*355 | 610*330*490 | ||||||
| Pcs in one master carton | 2 | 1 | 1 | |||||
| Gross weight (1pc, kg) | 21.5 | 11 | 22.2 | 12 | 25.7 | 13 | ||
| Net weight (1pc, kg) | 9.5 | 4.5 | 19 | 10 | 23.5 | 11 | ||
2KVA/2KW online UPS is a reliable power backup system designed to deliver clean and uninterrupted power to critical equipment.
Main Features:
1. Galvanic Isolation
Galvanic Isolation between in AC input and output in all operating mode, greatly reduce common mode noise interference, providing absolutely ZERO-volt between output Neutral and Protective Earth(PE).
2. Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protection for mission critical equipment from wide range power quality issues.
3. DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
4. Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
5. Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment
6. High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
7. Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
8. Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Applications:
IT Equipment: Servers, routers, and network systems.
Medical Devices: Lab and diagnostic equipment.
Industrial Automation: CNC machines and control systems.
Home and Office: High-end AV systems, PCs, and other electronics.
