G Tech UPS lithium battery solution online UPS with humanized design and elegant LCD display for easy monitoring and control
Product Details
| Application | IT Equipment, Servers, Routers, And Network Systems, Medical Devices, Etc. | Phase | Single Phase |
|---|---|---|---|
| Warranty | 3 Years | Protection | Low Voltage Protection |
| Rechargetime | 6-8 Hours | Battery Type | LiFePO4 Battery Pack |
Product Description
G Tech UPS lithium battery solution online UPS with humanized design and elegant LCD display for easy monitoring and control
Production Introduction:
This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds
of electric power environment. In addition, its design is humanized and elegant with LCD display.
UPS Specification:
| Model | 1K-Li | 1KS-Li | 2K-Li | 2KS-Li | 3K-Li | 3KS-Li | |||||||||||
| Capacity | VA/W | 1kVA/1000W | 2kVA/2kW | 3kVA/3kW | |||||||||||||
| Topology | Double Conversion Online UPS | ||||||||||||||||
| Phase | Single Phase Input Single Phase Output | ||||||||||||||||
| Mains Input | Wiring | L/N+PE | |||||||||||||||
| Rated Voltage | 208/220/230/240VAC | ||||||||||||||||
| Voltage Range | 90~300VAC | ||||||||||||||||
| Frequency Range | 40Hz-70Hz | ||||||||||||||||
| Input Power Factor | ≥0.99 | ||||||||||||||||
| AC Output | Wiring | L/N+PE | |||||||||||||||
| Output Voltage | 208/220/230/240VAC | ||||||||||||||||
| Voltage Regulation | ±1% | ||||||||||||||||
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) | ||||||||||||||||
| Waveform | Sine Wave | ||||||||||||||||
|
Distortion (THDV%) |
<2%(Linear Load) | ||||||||||||||||
| <8%(None-Linear Load) | |||||||||||||||||
| Over load capability |
100%~105% continuous. 60Sec.@105%~130% Rated Load 10Sec.@130%~150% Rated Load 0.3Sec.@>150%Rated Load |
||||||||||||||||
| Efficiency | Line Mode | 88% | 89% | 90% | |||||||||||||
| Battery Mode | 86% | 87% | 88% | ||||||||||||||
|
Battery & Charger |
Rated Battery Voltage | 48VDC (default for 15cell of LiFePO4 ) | |||||||||||||||
| Battery Capacity | 615WH | External Battery Depends | 922WH | External Battery Depends | 1229WH | External Battery Depends | |||||||||||
| Backup Time | >40mins @ Full Load | >30mins @ Full Load | >20mins @ Full Load | ||||||||||||||
| Charging Current | 4A/8A | ||||||||||||||||
| Charging Voltage | 52.8V(default for 15cell of LiFePO4 ) / Customerized according to battery request | ||||||||||||||||
|
Charger Behavior & Protection |
CC. CV. Floating. Turn-Off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
||||||||||||||||

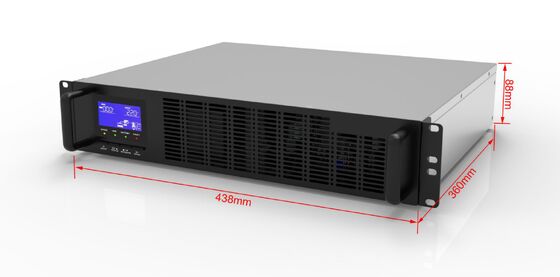

| Physical | Chassis Style | RACK / Tower (separated) | |||||||||||||||
| Rack Dimension |
1K: 438x88(2U)X400mm 1KS: 438x88(2U)X400mm |
2K: 438x88(2U)X500mm 2KS:438x88(2U)X400mm |
3K: 438x88(2U)X650mm 3KS:438x88(2U)X400mm |
||||||||||||||

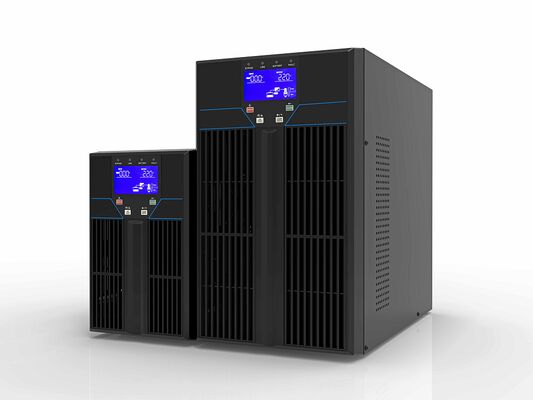

| Tower Dimension |
C1KS/C2KS: 145×220×390mm C3KS: 190×318×365mm C1K: 190×318×365mm C2K/C3K:190×318×415MM |
||||||||||||||||
| Weight(Tower) | 10.8kg | 5.0kg | 16.5kg | 5.5kg | 18.0kg | 7.9kg | |||||||||||
| Weight(Rack) | 12.5kg | 6.5kg | 21.6kg | 6.8kg | 24.5kg | 8.2kg | |||||||||||
| HMI | LED DISPLAY | Mains / battery status, Load level, battery level, Operation Mode | |||||||||||||||
| LCD DISPLAY with LED indicator | Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status | ||||||||||||||||
|
Standards COMMUNICATION |
1. RS232 PORT 2. Network Card: Support SNMP,TCP/IP Protocol , for remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. Dry Contact Interface for BMS control
|
||||||||||||||||
|
Operating Environment Endurance |
Temperature range | -10~50oC | |||||||||||||||
| Relative Humidity | 0-98%(Non-condensing) | ||||||||||||||||
| Acoustics Noise | <55dB @ 1 meters | ||||||||||||||||
Features:
High frequency on-line double conversion;
DSP (Digital signal processors) control;
Active input power factor correction 0.99;
Long battery lifecycle, more than 2000;
Generator compatible;
Cold start & Economic operation mode (ECO);
Wide input voltage range 90V~300V and frequency range 40~70Hz;
50Hz / 60Hz Frequency auto sensing;
Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output;
Li-ion battery provide up to 3x backup time, comparing with regular Lead-acid UPS product;
Dry contact interface for BMS dominant control;
Incorporated MODBUS (RS485) interface with BMS;
Li-ion Battery Charger : Constant current , constant voltage, floating, turn-off 4 state charger for Li-ion
battery, open to customize the logical behavior for customer- specified battery pack.
FAQ:
Q: What's your payment term?
A: We can accept T/T and L/C for standard order; West Union, Paypal and T/T for samples are also acceptable.
Q. Do you have MOQ of the battery order?
A: Generally we request no MOQ to support every of our clients, sample orders for testing are also welcome.
Q. How long will be the Lead time?
A: Detailed lead time depends on order quantity. Usually the lead time for samples: 7-10 days, for mass production order: 10~20 days.
Q. How to deliever the goods and how long does it takes to arrive?
A: The goods are generally shipped by Express (UPS/DHL/TNT/FEDEX etc). And we can also ship the battery by Air Cargo or by sea. It takes 3-5 days by Express and about 30 days by sea.
Q. How to proceed with an order?
A: Step 1, let us know your detailed requirements of the UPS;
Step 2, we will quote according to your detailed requirements;
Step 3, pls confirm the prices and samples;
Step 4, pls place a formal order including detailed QTY and product requirements;
Step 5, we provide the proforma invoice according to your order and you pay 30% deposit of the order then we will arrange the production;
Step 6, when the goods are ready, we will inform you to finish the balance payment of the order and we will arrange shipment of the goods when the payment is confirmed.
