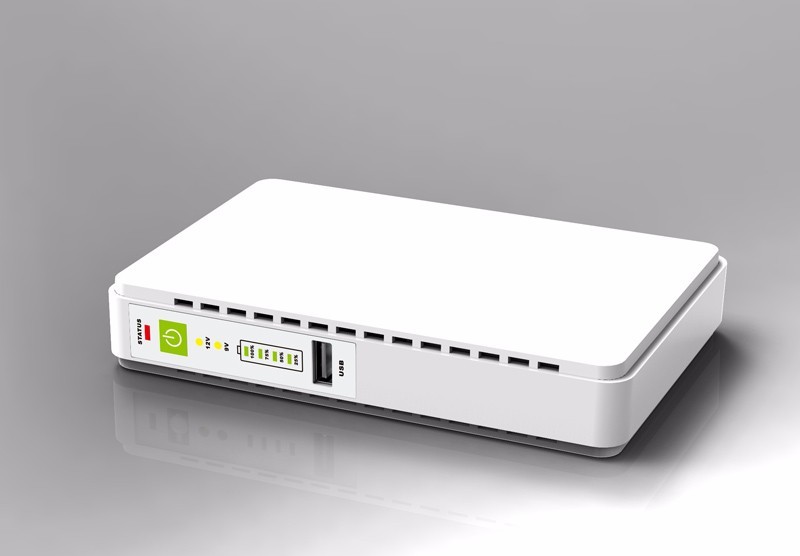

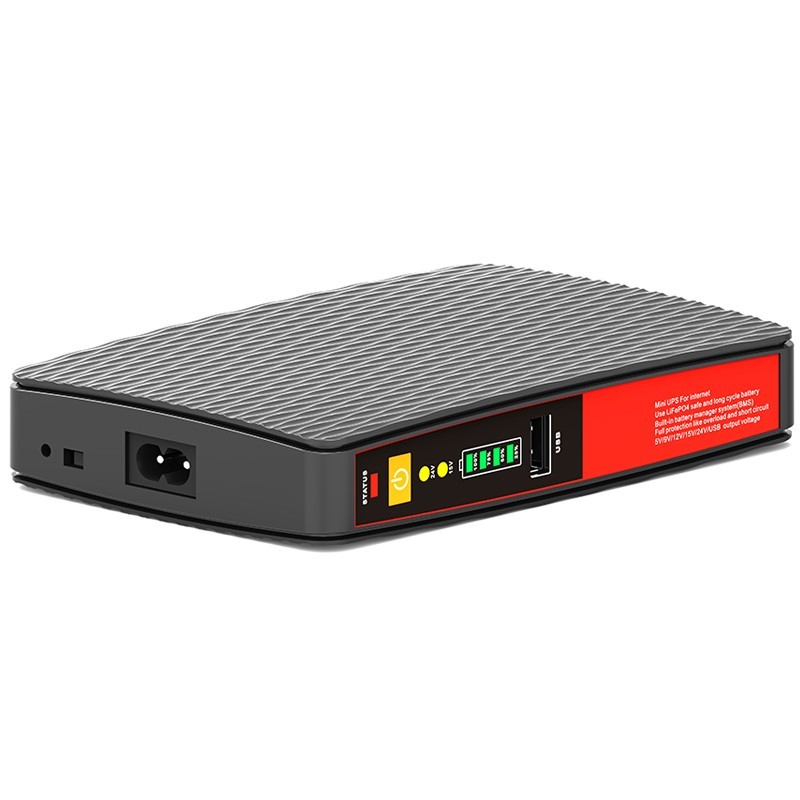

18W Portable Mini DC UPS With 8000mah LifeP04 Lithium Battery
| Place of Origin | China |
|---|---|
| Brand Name | G-tech |
| Certification | CE/RoHS/ISO |
| Model Number | ECO 418-2SP |
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Packaging Details | export deigned packing |
| Delivery Time | 15-20 working days |
| Payment Terms | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability | 100000 per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Voltage | 100-240Vac/50Hz ~60Hz | Transfer Time | <10 Ms |
|---|---|---|---|
| Noise Level | Less Than 40dB | Battery | 2000mAh * 4 LiFeP04 |
| Protection | Overvoltage, Overload, Short Circuit | Product Name | Portable Mini DC UPS With 8000mah LifeP04 Lithium Battery |
| Charging Period | Typical: 2~3 Hours | Output | 18W |
| Highlight | 18W 8000mah Mini DC UPS,8000mah Mini DC UPS,8000mah mini ups |
||
Product Description
Mini DC UPS with high quality li-ion battery can be used to uninterruptible power to net work equipment like modem, router, CCTV, but also can be used to charge smart phones, other digital devicesm, etc.
Portable Mini DC UPS with 8000mah LifeP04 Lithium battery
Features:
ECO plus 418-2SP series mini DC UPS is a 18W type with new design and upgrade with 8000mah lifeP04 lithium battery, can provide long backup time and long service life to your device.
This mini dc ups features with UPB port,5V, 9V, 12V DC output port and also with POE port, can be used for most device friendly.
| Fields of application |
Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
Mini DC UPS Specification:
| Model | ECO 418-2SP | |||
| Input voltage | 100-240Vac/50Hz ~60Hz | |||
| Output Voltage | 18W | |||
| Output Voltage (selectable) | USB interface | DC interface | POE interface | |
| 5Vdc | 9Vdc | 12Vdc | 15Vdc/24Vdc | |
| Output Polarity | Standard |  |
+4, 5pins, -7, 8pins | |
| Output power & current (in common) | 2.0A/10W | 1.0A/9W | 1.0A/12W | (0.8A/15V)0.5A/)12W or (24V) |
| QTY & Capacity of battery | 2000mAh * 4 LiFeP04 | |||
| Charging Period | Typical: 2~3 Hours | |||
| Physical | ||||
| Unit Dimension (mm) | 160 * 105 * 28 | |||
| Net Weight (kg) | 0.4 | |||
| Environment of performance | Temperature 0~40 degree, Humidity 20%~90% | |||
| Noise Level | Less than 40dB | |||
Product specifications are subject to change without notice.
| Performance Characteristics |
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
