Overload Protection Mini DC UPS 100-240Vac Input 5V 9V 12V 15V 24V 48V Output

Overload Protection Mini DC UPS 100-240Vac Input 5V 9V 12V 15V 24V 48V Output

dc power ups

mini ups 24v

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS/ISO

Model Number:

ECO series

Contact Us
Request A Quote
Product Details
Input Voltage:
100-240Vac
Transfer Time:
<10 Ms
Noise Level:
Less Than 40dB
Battery:
Lithium Battery, Li-ion Battery
Protection:
Overvoltage, Overload, Short Circuit
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiation
Packaging Details
export deigned packing
Delivery Time
15-20 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability
100000 per month
Product Description



With high capacity lithium batterycan be used to uninterruptible power to net work equipment like modem, router, CCTV, but also can be used to charge smart phones, other digital devicesm, etc.

ECO Series Mini DC UPS 100-240Vac Overload Protection High Capacity Lithium Battery UPS



Features:

1. ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection high capacity lithium battery UPS Long Backup to the loads

2. High compatibiliity, suitable for most digital products in the market.

3. Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set(ECO-412P).

4. Intelligent circuit design with over-charging, over-discharging and short circuit protections.

5. Built-in adapter allows wide AC voltage range(100-240Vac).



Specification:



Model

ECO
212 312 412 412P 1248P
Input Voltage 100-240Vac
Output

DC output Volatge

(optional )

5V/7.5V/9V/12V

5V/7.5V/9V/12V

5V/7.5V/9V/12V

9V/12V &

15V/24V (POE)





12V&48V(POE)

Voltage Select Choosing through the slide switch
Output Power(max) 12W 12W 12W&24W (total 36W) 12W&48W (total 60W)

Transfer

Time

0 ms
Battery
Type Lithium battery                                          Lead Acid battery

Qty &

Capacity

4400mAh 6600mAh         8800mAh 1.2V/2.3AH*1pc

Charging

Period

     Typical: 2-3 hours
Physical

Dimension

(mm)

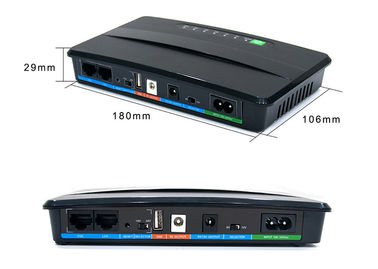

                     165*105*26 108*183*29 268*144*51
Environment
Performance Temperature 0℃~40℃ ; Humanity20%~90%
Noise level Less than 40dB

Product specifications are subject to change without notice.

Overload Protection Mini DC UPS 100-240Vac Input 5V 9V 12V 15V 24V 48V Output 0

Overload Protection Mini DC UPS 100-240Vac Input 5V 9V 12V 15V 24V 48V Output 1

Factory Profile:

G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.



The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.



OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

Overload Protection Mini DC UPS 100-240Vac Input 5V 9V 12V 15V 24V 48V Output 2Overload Protection Mini DC UPS 100-240Vac Input 5V 9V 12V 15V 24V 48V Output 3
