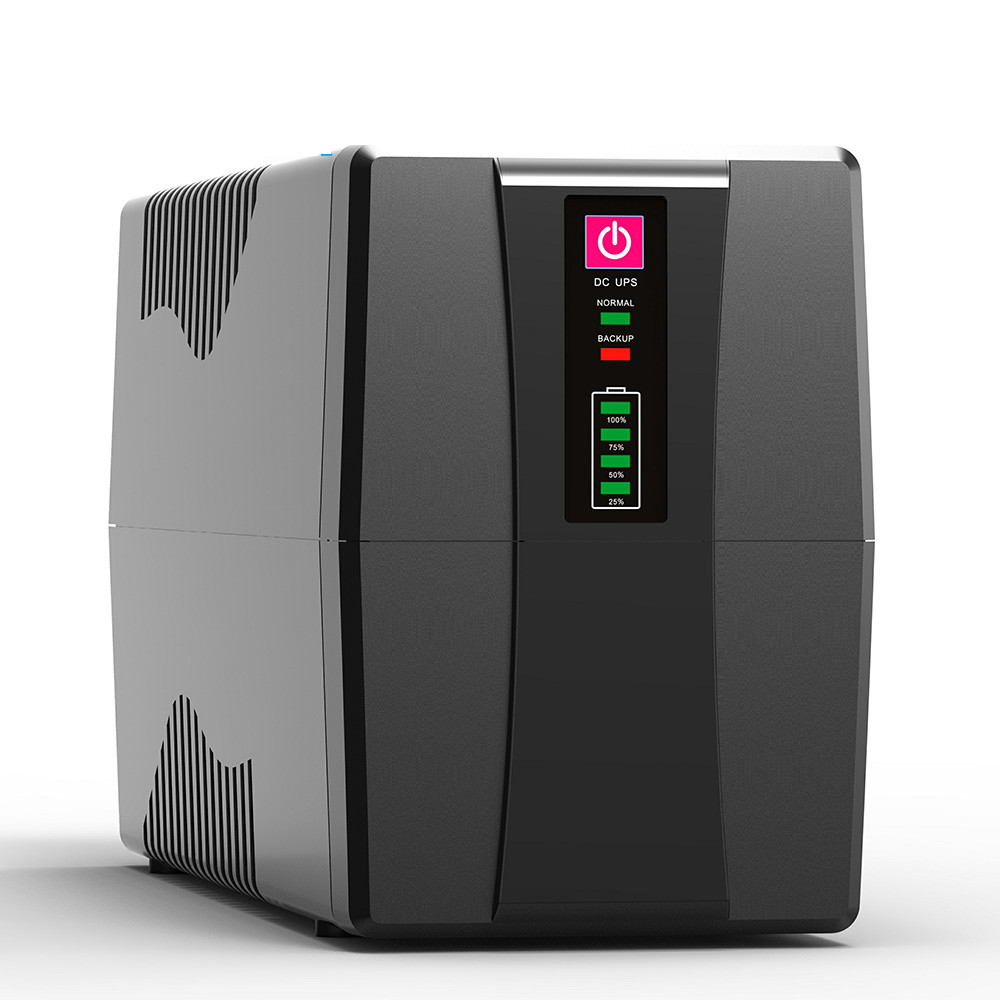

Product Description:
ECO Mini Uninterruptible Power Supply (DC UPS) is a reliable and cost-effective power system designed specifically for DC devices. This mini DC UPS is with battery back-up system, as uninterruptible power supply for CCTV, WIFI, POE CAM and most digital products in the market.
Because of the lead-acid battery, DC UPS would have a long backup time on the load. As for the service life, it can provide a longer service life for user with the battery management system.
We are a specialized manufacturer of DC UPS, for over 18 years, DCT-60 and DCT-120 with over 100 thousand yearly production.
Features:
- Product Name: Mini DC UPS
- Battery type: Lead-acid Battery
- Protection: Overload/Short Circuit/Over Temperature/Reverse Polarity
- Output power: 12W-60W
- Working Temperature: 0℃~+40℃
- Charging period: 2~3Hours
- Economic Mini Uninterruptible Power Station
- ECO Mini Uninterruptible Power System
- Economic Mini Uninterruptible Power Station
Technical Parameters:
| Model # |
DCT-60 |
DCT-120 |

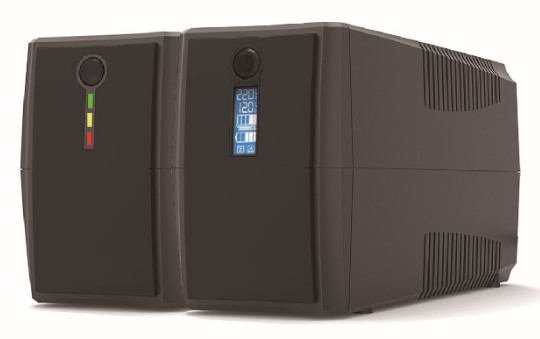

| Front panel |
 |
| INPUT |
| Voltage range |
100-240Vac |
| Input frequency |
35-70Hz |
| OUTPUT |
| Output power(Max.) |
60W(5A) |
120W(10.0A) |
| Output power¤t(in common) |
9Vdc(1A)+12Vdc*6(5A)+15/24Vdc POE(1A) |
| BATTERY |
| Battery type |
12V 7AH |
12V 9AH |
| PHYSICAL |
| Unit dimension (mm) |
300*95*140 |
| Net weight (1pc, kg) |
2.8 |
3 |
| ENVIRONMENT |
| Environment of performance |
Temperature 0℃~40℃, Humidity 20%~90% |
| Noise level |
Less than 40dB |
| *Product specifications are subject to change without further notice. |
Applications:
Mini DC UPS:Economic Mini Uninterruptible Power Module & ECO Mini Uninterruptible Power Supply
Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
Performance Characters:
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
