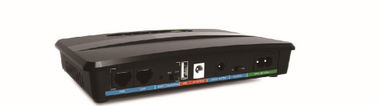

ECO Series Mini DC UPS 100-240Vac With Overload Overvoltage Protection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Plastic/Metal | Colour | Customized |
|---|---|---|---|
| Input Voltage | 100-240Vac | Transfer Time | 0 Ms |
| Noise Level | Less Than 40dB | Battery | Lithium Battery |
| Brand Name | G-tech | Protection | Overvoltage,overload |
| Highlight | dc power ups,mini ups 24v |
||
Product Description
ECO series , high capacity lithium battery , high compatibility , suitable for most digital products in the market
Specification:
|
Model |
ECO Plus | |||||||
| 212 | 415 | 415P | 430P | 430M | 430S | 860 | 1660 | |
| Input Voltage | 100-240Vac | |||||||
| Output | ||||||||
|
DC output Volatge (optional ) |
USB 1.5A 9/12V 1A |
5V+USB 2A 9V/12V 1A 12V 1A |
5V USB 2A 9V/12V 1A 15V/24V 0.5A (POE) |
5V USB 2A 9V/12V 2A 15V/24V 1A (POE) |
5V USB 2A 9V/12V 2A 12Vx4 2A |
5V USB 2A 9V/ 12Vx4 2A Solar input |
5V USBx2 2A 9V/ 12V 2A 15V/24V(POE) 1A 12Vx4 5A Solar input 2A |
|
| Voltage Select | Choosing through the slide switch | |||||||
| Output Power(max) | 12W | 15W | 30W | 60W | ||||
|
Transfer Time |
0 ms | |||||||
| Battery | ||||||||
| Type | Lithium battery | |||||||
|
Qty & Capacity |
6700mAh | 8800mAh | 2200mAhX8 | 2200mAhX16 | ||||
|
Charging Period |
1-2 hours | 2-3 hours | 4-5 hours | |||||
| Physical | ||||||||
|
Dimension (mm) |
141.5*84.5*35 | 180*106*29 | 258*152*46 | |||||
|
Net Weight(kg) |
0.3 | 0.4 | 0.94 | 1.28 | ||||
| Environment | ||||||||
| Performance | Temperature 0℃~40℃ ; Humanity20%~90% | |||||||
| Noise level | Less than 40dB | |||||||
Product specifications are subject to change without notice.
