Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
V-

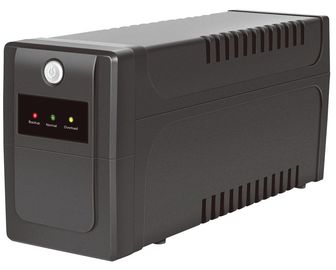

Offline Uninterrupted Power Supply UPS 1KVA Backup Power Inverter
This series of UPS is specifically designed for PC.It applies CPU integrated control technology and SMD (Surface Mount Devices)technology.which makes it perform satisfactorily and pleasing to the eye.It is an indispensable companion of PC,Router and POS machines.
| MODEL | V-525 | V-625 | |
| Capacity | 500VA/300W | 600VA/360W | |
| INPUT | |||
| Input Voltage | 110/120Vac or 220/230/240Vac | ||
| Intput Voltage Range | 90~132Vac/175~265Vac | 85~150Vac/145~290Vac | |
| Frequency Range | 45~65Hz | ||
| OUTPUT | |||
| Output Voltage | 110/120Vac or 220/230/240Vac | ||
| Output Voltage Range | 90~132Vac/175~265Vac | 102-132Vac/200~255Vac | |
| Output Frequency | 60±0.5Hz or 50±0.5Hz(Batt.Mode) | ||
| Output Wave Form | PWM(Batt.Mode) | ||
| Transfer Time | Typical(2-6ms),10ms max | ||
| BATTETRY | |||
| Qty.& Capacity of Battery | 12V/4AH*1pc | 12V/7AH*1pc | |
| Charging Period | 4-6hours recover to 90% capacity | ||
| PROTECTION | |||
| Full Protection | Low Voltage &overload&short circuit protection | ||
| PHYSICAL | |||
| Net Weight(kg) | 4.4 | 5 | |
| Unit Dimensions(mm) | 255*98*140 | 300*95*140 | |
| ENVIRONMENT | |||
| Environment of Performance | Tempreture 0℃-40℃,Humidity 20%-90% | ||
| Noise level | ≤40dB(1m) | ||
| MANAGEMENT | |||
| LCD or LED,RJ45/11&USB | Optional | ||
Feature
1. Auto re-starts when AC recovers.
2. Slience setup.
3. Automatic charging(offline charging)
4. Battery Low Voltage Protection
5. Overload & short circuit protection.
6. CPU controlled
7. Optional RJ45/11 &USB port
8. Wide input voltage range
Field of Application
Suitable for the PC,router,POS machine communication processor,industrial products which for the enterprises,goverments,scientific reserch,
traffic,national defense,information and education industries.
