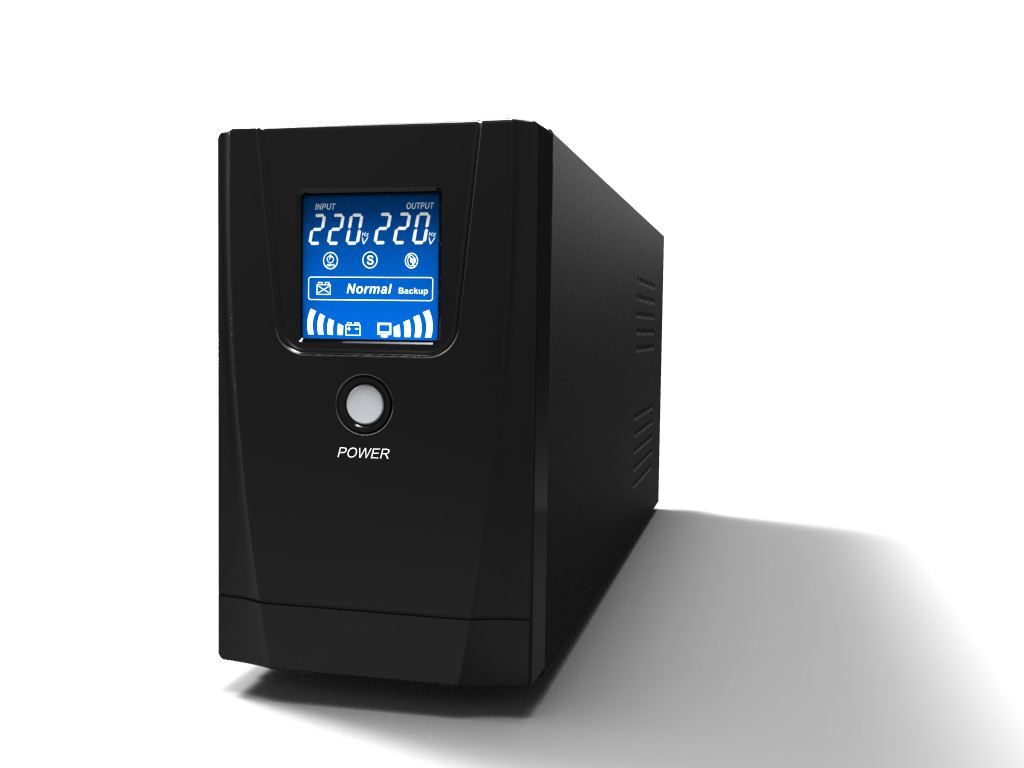

Single Phase 110V/220V PWM UPS Full Protection With Inbuilt Battery

Single Phase 110V/220V PWM UPS Full Protection With Inbuilt Battery

ups computer power supply

computer backup power supply

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE ROHS

Model Number:

V-

Contact Us
Request A Quote
Product Details
Place Of Origin::
Guangdong, China
Protection::
Overvoltage
Output Voltage::
110V/220V
Capacity::
60% Of Rated Power
Charge Period::
8 Hours To Be Full
Product Name::
Offline Ups
Display::
LED/LCD Optional
Phase::
Single Phase
Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Inbuilt Battery Compact Top 10 Home System Online 110v 220v 50hz 60hz Shenzhen Appliance Ups

• Excellent microprocessor control guarantees high reliability

• Boost and buck AVR for voltage stabilization

• Auto restart while AC is recovering

• Simulated sine wave

• Off-mode charging

• Cold start function

• Generator compatible



Specification



MODEL V-525 V-625
Capacity 500VA/300W 600VA/360W
INPUT
Input Voltage 110/120Vac or 220/230/240Vac
Intput Voltage Range 90~132Vac/175~265Vac 85~150Vac/145~290Vac
Frequency Range 45~65Hz
OUTPUT
Output Voltage 110/120Vac or 220/230/240Vac
Output Voltage Range 90~132Vac/175~265Vac 102-132Vac/200~255Vac
Output Frequency 60±0.5Hz or 50±0.5Hz(Batt.Mode)
Output Wave Form PWM(Batt.Mode)
Transfer Time Typical(2-6ms),10ms max
BATTETRY
Qty.& Capacity of Battery 12V/4AH*1pc 12V/7AH*1pc
Charging Period 4-6hours recover to 90% capacity
PROTECTION
Full Protection Low Voltage &overload&short circuit protection
PHYSICAL
Net Weight(kg) 4.4 5
Unit Dimensions(mm) 255*98*140 300*95*140
ENVIRONMENT
Environment of Performance Tempreture 0℃-40℃,Humidity 20%-90%
Noise level ≤40dB(1m)

MANAGEMENT

LCD or LED,RJ45/11&USB Optional





Offline Uninterrupted Power Supply UPS 1KVA Backup Power Inverter
