Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
MPS

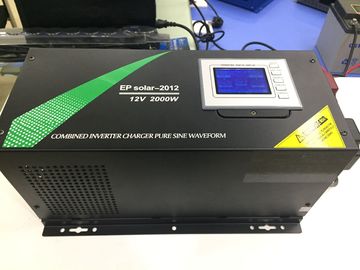

1000W 2KW 3KW 6KW Pure Sine Wave Inverter for Solar, Home use, with MPPT Solar controller, max charger current 60A, LCD
Specification:
| Model | 2012 | |||
| Real power | 2000W | |||
| AC MODE | ||||
| Input Voltage | 160~265 ± 5 Vac | |||
|
Input Frequency |
45-65Hz | |||
| Output Voltage | 160~265 ± 5 Vac | |||
| Efficiency | ≥96%(AC mode) | |||
| Inverter mode | ||||
|
No load current & power |
0.8A/9.6W | |||
| THD | <3% (linear load) | |||
| Output Voltage | 230Vac | |||
| Output Frequency | 50 ± 0.1Hz/60± 0.1Hz(Auto sensing) | |||
|
Output Wave form |
Pure sine wave | |||
| Tranfer time | < 10ms | |||
| Efficiency | ≥80% (battery mode) | |||
|
Overload Capability |
(100%<load<120%) ±10%:Auto shutdown in 2 mins (120%<load<140%) ±10%:Auto shutdown in 60 secs; (140%<load) ±10%:Auto shutdown in 20 secs |
|||
| Overcurrent Protection | System shuts down automatically within 20ms | |||
| Output short circuit protection | Yes | |||
| Battery | ||||
| DC voltage | 12V | |||
| Battery type | 8 types of battery | |||
| AC charging current | 5A/10A/20A/30A/45A(60A)Max | |||
| Physical | ||||
| Net weight(kg) | 23 | |||
| Dimention(mm) 526(L)*277(W)*215(H)mm | ||||
| Enviroment | Temperature 0℃~40℃,Humidity 20%~90% | |||
| Noisy level | ≤ 40dB(1m) | |||
| Altitude | ≤ 1000m(Altitude exceeds 1000m, full power cannot reach) | |||
Product specifications are subject to change without notice.
Factory Profile:
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
