Low Frequency 3 Phase Online Ups 40KVA-80KVA With Sealed Lead Acid Battery

Low Frequency 3 Phase Online Ups 40KVA-80KVA With Sealed Lead Acid Battery

online double conversion ups

3 phase online ups

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE, ROHS, ISO, UL

Model Number:

GP33-40~80KVA

Contact Us
Request A Quote
Product Details
Application:
Office, Computer Facilities, Security, Monitoring, Alarm,Telecommunications, Medical, Instrumentation, Financial
Product Name:
40KVA-80KVA Low Frequency Online UPS Three Phase Online Ups For Office / Computer / Facilities
Display:
LCD(Touchscreen)
Battery Type:
Sealed Lead Acid Maintenance Free
Frequency:
50/60hz
Power Factor:
≥0.9
Phase:
Three Phase
Transfer Time:
0 Ms
Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiation
Delivery Time
20-30 days
Supply Ability
200 pcs per month
Product Description

40KVA-80KVA Low Frequency Online Double Conversion UPS Power Supply System, Three-phases In/ Three-phases Out

  • Online Low-frequency UPS for Office / Computer / Facilities



Product Introduction
GP33 series is online double conversion UPS, with Isolated Gate Bipolar Transistors(IGBT) that performs excellent conversion of sinewave output from high frequency PWM inverter. The series is applicalbe to small and medium-sized data centers, network management center, computer rooms for enterprises, and able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic, distortion and frequency fluctuation, it guarantees to offerr safe and reliable power supply for any loads to users.
  •

Feature



1>  High-efficient DSP chip

2>  Outstanding electric property

3>  Good looking and excellent hardware

4>  N+1 parallel redundancy(compatible to battery share in the parallel mode)

5>  Frontal-board operation and maintenance

6>  Twin-channel line input

7>   Remote monitoring

8>   Intelligent management of battery charging and discharging

9>   Flexible battery arrrangement

10> Flexible arrangement, change due to the need

11> Built-in lightning protection module

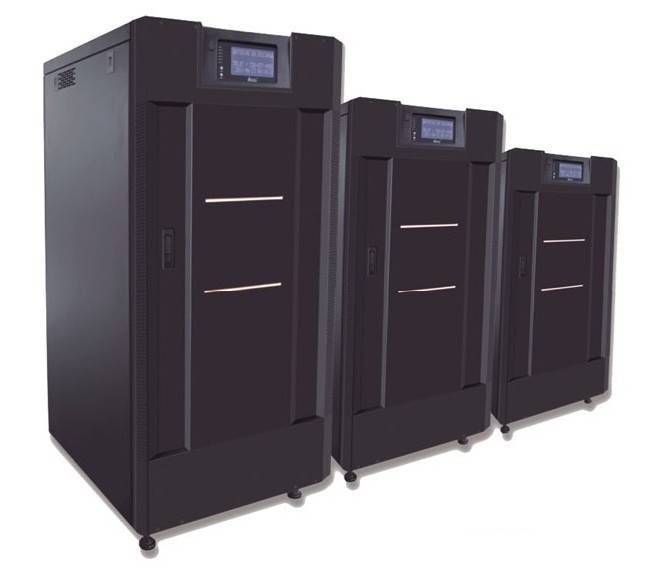

  • Low Frequency 3 Phase Online Ups 40KVA-80KVA With Sealed Lead Acid Battery 0

Specifications

MODEL GP33-40~80KVA
Transference 0 ms cutless
Technology True double-conversion online technology, conversion performed by IGBT
INPUT
Voltage 3*220/380 Vac ± 25%
Frequency 50Hz ± 15%
Conductors Three phases + N + E
OUTPUT
Voltage(selectable) 3*220/380 Vac ± 1%(More voltage can be selected)
Frequency 50Hz ± 1%
Waveform Pure sine wave generated by high frequency PWM inverter
Harmonic Distortion

<2% Linear load/<5% Nonlinear load

Crest Factor 3:1
Power Factor ≥0.9
Overload recuperation Self-transference to UPS
Voltage regulation Load balance:± 1%
Overload capacity 125% for 12 minutes / 150% for 1 minute
Conductors Three phrases + N + E
BATTERY
Type Maintenance-free sealed lead-acid battery
Quantity 32pcs(29-32pcs adjustable)
Voltage Nominal 384V, Float 435v(adjustable)
Typical recharge time 4-8 hours, 90%
Battery handly Autotest, Transfer point adjustable battery and alarm setting
Battery protection Fuse protection, battery switch, temperature compensation, regular inspection, software protection, over voltage tripping.
Rectification Software protection,input switch,over current protection,temperature protection
PROTECTION
Hardware protection Breaker for input,output,battery and bypass,Fast acting fuses in DC,fans,redundant power supplies,temperature sensors,on-off switch and audible alarms.
Bypass Static solid state,automatic and manual operation without interruption for maintenance. External Bypass(optional)
Emergency switch Remote and/or local EPO
SUPERVISORY CONTROL AND COMMUNICATION
Frontal panel Interactive LCD display(Touchscreen)
Alarms Audible and visual alarm for abnormal conditions
Communications RS232, SNMP-RJ45,GPRS module for mobile network remote monitoring
UPS(W*D*H)mm 664*865*1548
Battery case(W*D*H)mm 432*1550*897
UPS weight(kg) 437/500/600
Battery case weight(kg) 105
Temperature Temperature 0℃-40℃
Relative humidity 0-95%, non condensing
Noise <60db at 1.5m from surface of unit
Altitude 1000m(height rises every 100m, power decreases 1%, maximum height is 4000m)
Efficiency ECO mode > 98%, Inverter > 92%, AC-AC > 91%

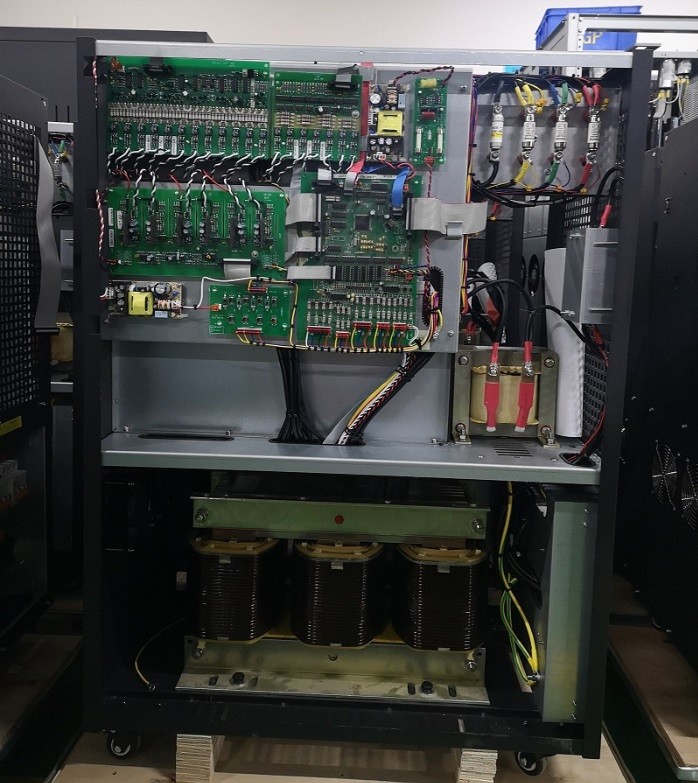

Low Frequency 3 Phase Online Ups 40KVA-80KVA With Sealed Lead Acid Battery 1
