Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE, ISO,SGS
Model Number:
Low Frequency Online UPS

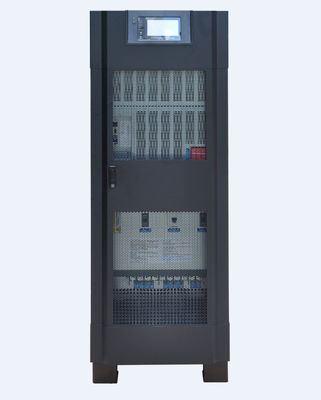

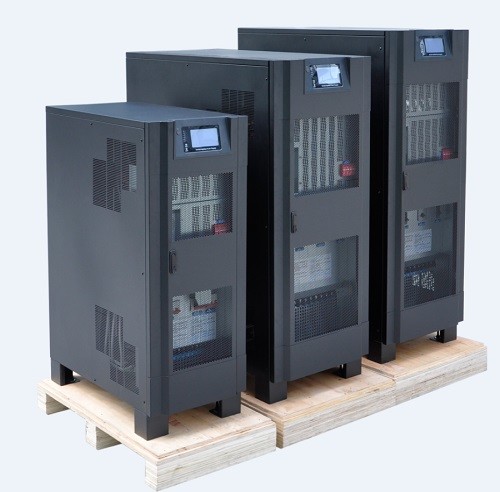

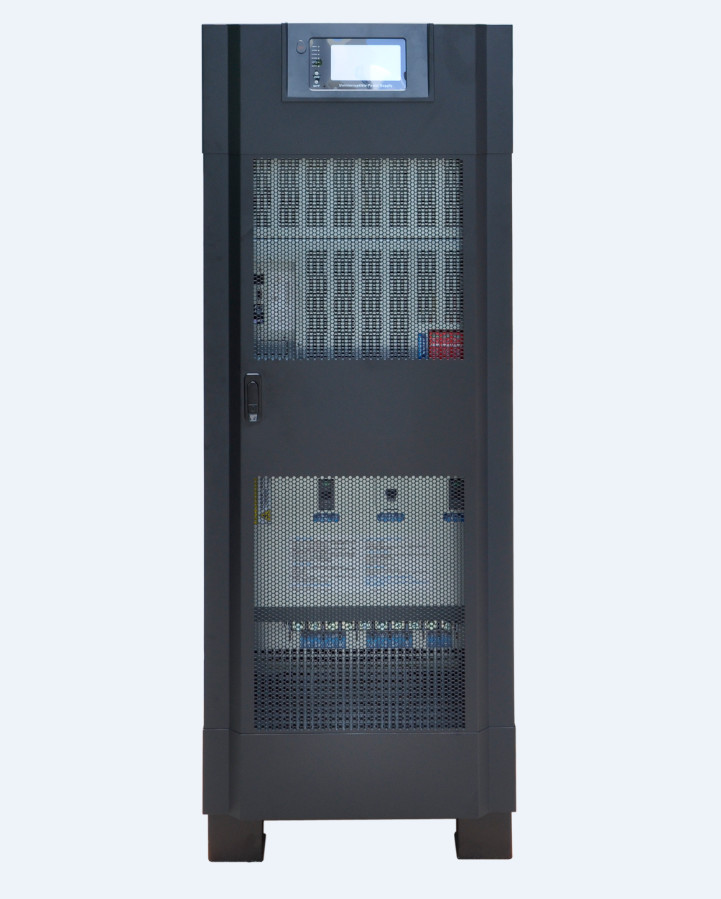

Quality Low FrequencyUPS with Pure Sine Wave OutputIts, it's advanced battery charging system enables the UPS to supply a long backup time while the charging time is rather short, and its temperature compensation system can help to prolong the service life of the battery. Also, its circuit is simple, which reduces the number of components and makes the machine more compact and more reliable.
This UPS is ture double-cpnversion online technology provides pure and safe power supply to all appliances, communication equipment and important loads connected to the internet, and the DSP technology responds quickly to different power supply problems, making sure its load will work uninterruptedly.
Quality Low FrequencyUPS with Pure Sine Wave OutputIts is compatible to all kinds of loads and widely used in the fields of energy sources, transportion, office, medical equipment, engine-room, data center, toll station and so on.
1. High-efficient DSP chip
2. Outstanding electric property
3. Good looking and excellent hardware
4. N+X parallel redundancy (compatible to battery share in the parallel mode)
5. Frontal-board operation and maintenance
6. Twin-channel line input
7. Remote monitoring
8. Intelligent management of battery charging and discharging
9. Flexible battery arrangement
10. Flexible arrangement, change due to the need.
Model # | GP33 series | ||||||||||||
Capacity | 10KVA | 15KVA | 20KVA | 30KVA | 40 KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA | ||
INPUT | |||||||||||||
voltage | (208/308/400/480Vac) ± 20% / 5 wires (3 lines + neutral + ground) | ||||||||||||
frequency | 50/60Hz ± 10% Auto sensing | ||||||||||||
power factor | 0.98 | ||||||||||||
filter | EMI, RFI | ||||||||||||
dual input | optional | ||||||||||||
OUTPUT | |||||||||||||
voltage | (208/308/400/480Vac) ± 20% / 5 wires (3 lines + neutral + ground) | ||||||||||||
frequency | 50/60Hz ± 1% Auto sensing | ||||||||||||
Efficiency | AC/AC>92% | ||||||||||||
transfer time | 0 ms | ||||||||||||
wave form | sine wave | ||||||||||||
power factor | 0.8 | ||||||||||||
voltage T.H.D. | <2% with linear load | ||||||||||||
crest factor | 3:1 | ||||||||||||
technology | true on-line double conversion controlled by microcontroller | ||||||||||||
overload recovery | automatically transfer to UPS mode | ||||||||||||
Isolation transformer | inverter mode (bypass mode is optional) | ||||||||||||
parallel connection | parallel connection function is ready (extra PCB is not reuired) | ||||||||||||
BATTERY | |||||||||||||
battery type | VRLA (valve regulated lead acid), not included | ||||||||||||
DC voltage | 384 Vdc | ||||||||||||
charging time | 4 hours up to 90% | ||||||||||||
battery detection | self-detect, transfer to battery mode adjustable | ||||||||||||
PROTECTION | |||||||||||||
lightning and transient protection | hot swappable lightning and transient surge suppressor (in:10Kamp, Up:1.5 Kv, I max: 20 Kamp.) | ||||||||||||
harware protection | input breaker, output breaker, battery breaker, bypass breaker; DC fuse, fan, redundant power supply; temperature sensor, EPO (Emergency Power Off), audible alarms etc. | ||||||||||||
software protection | discharging batteries, battery charger working mode, inverter working mode, emergency power off, manual shutdown, bypass SCR failure, bypass sequence failure, bypass over the limit, critical overload, batteries exhaustion, low or high output voltage, DC fuse open, 5V power supply failure, 13.5 power supply failure, inverter overvoltage, 200% overload on each line, transfer failure, inverter voltage out of range, over voltage betweenneutral and ground, UPS on bypass mode, bypass frequency out of range. | ||||||||||||
bypass | solid state | ||||||||||||
overload | 125% for 10min, 150% for 30sec, 1000% for 16 millisecond | ||||||||||||
EPO | EPO local and/or remote | ||||||||||||
Display | LCD, touch screen | ||||||||||||
LED diagram | included | ||||||||||||
communication | RS232 intelligent slot, modem, SNMP(RJ45) (SNMP adaptive software is supplied by the producer) | ||||||||||||
ENVIRONMENT | |||||||||||||
elevation | 1.700 m.o.s.l without derrating | ||||||||||||
temperature & noise | 0℃~40℃/<60dB @1.5m. | ||||||||||||
humidity | 0~95% non condensate | ||||||||||||
PHYSICAL | |||||||||||||
Unit dimension (mm) | L830*W402*H1050 | L664*W865*H1548 | L966*W890*H1748 | L1160*W1043*H1900 | |||||||||
Net weight (1pc, kg) | 152.5 | 167.5 | 193.5 | 222.5 | 362.55 | 434.05 | 534.05 | 670.05 | 746.05 | 1120 | 1320 |
Quality Low Frequency Uninterruptible Power Supply, With the use of communication interface and monitoring software, you can monitor this UPS on your computer, which simplifies the management of power supply. You can also choose to buy a SNMP card, which is compatible to all kinds of operating system, and supports TCP/IP, SNMP,HTTP protocol, so as to monitor the UPS through internet. Moreover, it will be easier to achieve central maagement even users are scattered in different places and it can also diagnose network and maintain the system remotely, realizing global managemnent in a very real sense.
G-Tech offers a custom Low Frequency Online Uninterrupted Power Unit (UPS) with a Pure Sine Wave output waveform, protection from overload, short circuit, and over temperature. It has an input voltage of 220V, an LCD display, and an efficiency of 0.9.
Choose G-Tech for a custom Low Frequency Online Uninterrupted Power Source (UPS) or Low Frequency Online Uninterrupted Power Source System (UPSS) that meets your specific needs.
