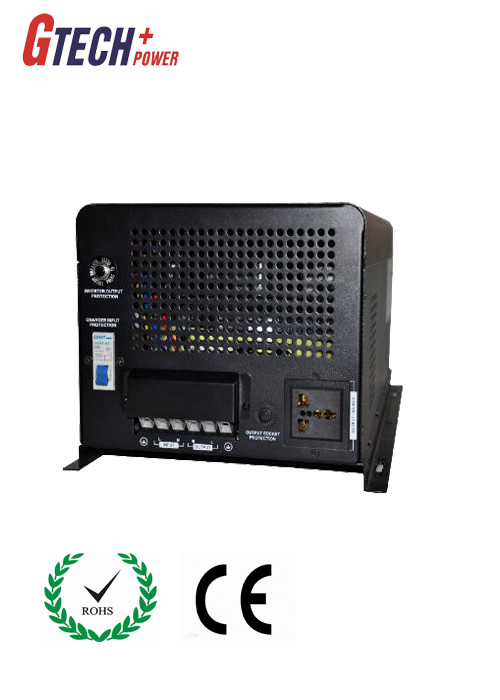

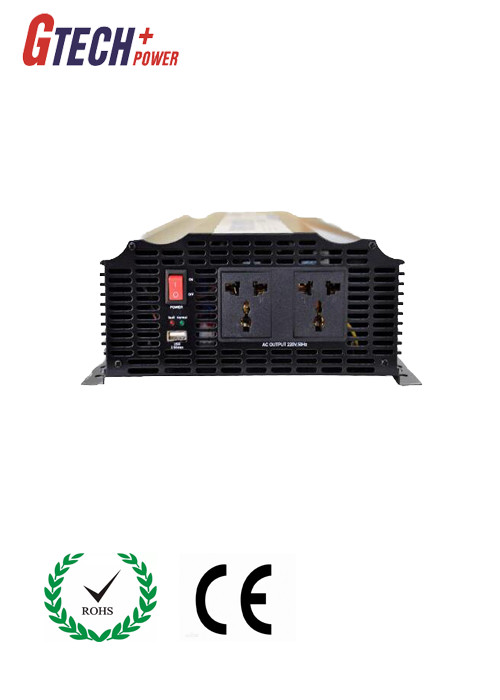

Low Frequency Electric Power Inverter MPS Series LCD Display With Solar Input
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal/ABS | Colour | Customized |
|---|---|---|---|
| Display | LCD | Efficiency | >=96%(AC Mode) |
| Protection | Overload And Short Circuit | Input Frequency | 45-65Hz |
| Noise Level | <=40dB(1m) | Wave | Pure Sine Wave |
| Application | Home | ||
| Highlight | pure sine wave inverter,pure sinewave inverters |
||
Product Description
MPS Series 1500W, type1524,Solar Power Off-grid Pure Sine Wave Home Inverter, AC/Solar Input
Specification:
|
Model
|
1524
|
| Real power | 1500W |
| AC MODE | |
| Input Voltage | 100~290 ± 5 Vac (INV.mode) |
| Input Voltage | 160~275± 5 Vac (UPS mode) |
|
Input Frequency |
45-65Hz |
| Output Voltage | 160~265 ± 5 Vac (INV.mode) |
| Output Voltage | 198~242 ± 5 Vac (UPS mode) |
| Efficiency | ≥96% (AC mode) |
| Inverter mode | |
| 0.7A/16.8W | |
| THD | <3% (linear load) |
| Output Voltage | 230Vac |
| Output Frequency | 50 ± 0.1Hz/60± 0.1Hz(Auto sensing) |
|
Output Wave form |
Pure sine wave |
| Tranfer time | < 10ms(typical) |
| Efficiency | ≥80% (battery mode) |
|
Overload Capability |
(100%<load<120%) ±10%:Auto shutdown in 2 mins (120%<load<140%) ±10%:Auto shutdown in 60 secs; (140%<load) ±10%:Auto shutdown in 20 secs |
| Overcurrent Protection | System shuts down automatically within 20ms |
| Short circuit protection | Yes |
| Battery | |
| DC voltage | DC24V |
| Battery type | 8 types of battery |
| AC charging Current | 5A/10A/20A/30A/45A(60A)Max |
| Solar charging current(MPPT) | 10A/20A/30A/40A/50A/60A |
| Enviroment | Temperature 0℃~40℃,Humidity 20%~90% |
| Noisy level | ≤ 40dB(1m) |
| Altitude | ≤ 1000m(Altitude exceeds 1000m, full power cannot reach) |
| NW.(kg) | 23.7 |
Product specifications are subject to change without notice.
