Cold Start Pure Sine Inverter AC / Solar Input Built - In PWM Controller Inside
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Colour | Customized | Material | Plastic |
|---|---|---|---|
| Application | Home | Input | AC/Soalr |
| Highlight | pure sine wave inverter,pure sinewave inverters |
||
Product Description

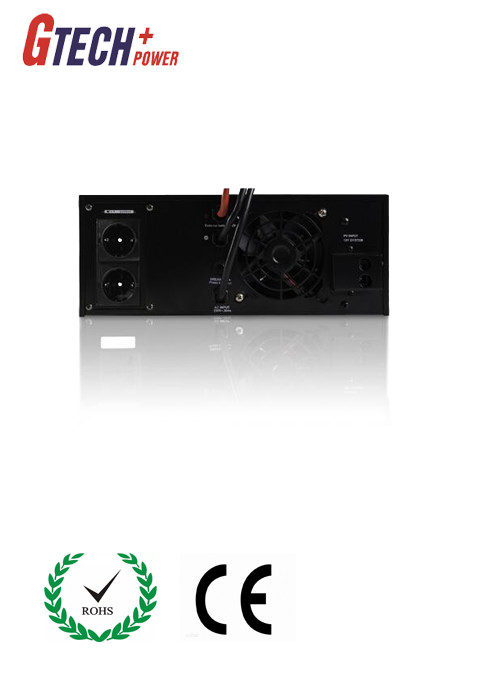

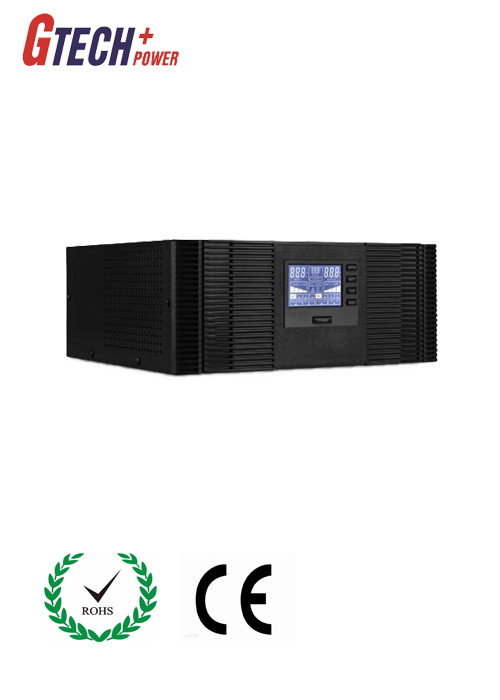

XLS Series 500W-4000W Pure Sine Wave Home Inverters, 4-Step AVR, AC/Solar Power Charging
XLS series Inverter. A device for converting a direct current into an alternating current with a sinusoidal shape. It is most often used for the operation of household devices (220 VAC) from a car battery (12V). Inverters of this series have a built-in charging function for car batteries from the city network. Also widely used instead of UPS, with plug-in external batteries. The maximum total capacity of the connected batteries is not limited.
Feature:
*Pure sine wave inverter
*Built-in PWM controller inside
*4-step AVR
*Selectable input voltage range(100V-290V or 145-290V)for home appliances and personal computers
*Selectable high power charging current of 10A/20A Max(Optional)
*Selectable battery types of gel, lead-acid and open lead-acid battery
*Configurable AC/Solar input priority via LCD setting
*Compatible to mains voltage or generator output
*Auto restart while AC is recovering
*Overload and short circuit protections
*Smart battery charger design for optimized battery performance
*Cold start
Specification:
|
Model(Solar)
|
XLS-600
|
XLS-800
|
XLS-1000
|
XLS-1200
|
XLS-2000
|
XLS-3000
|
XLS-4000
|
XLS-5000
|
||
| Capacity |
600VA / 500W |
800VA/ 640W |
1000VA/ 800VA |
1200VA/ 1000W |
2000VA/ 1600W |
3000VA/ 2400W |
4000VA/ 3200W |
5000VA/ 4000W |
||
| Power factor 0.8 | ||||||||||
| Input | ||||||||||
|
Voltage range (INV,mode) |
100-290Vac ± 5Vac | |||||||||
|
Voltage range (UPS,mode) |
145-275Vac ± 5Vac | |||||||||
| Frequency | 45-65Hz | |||||||||
| Output | ||||||||||
|
Voltage range (INV,mode) |
150-255Vac ± 5Vac | |||||||||
|
Voltage range (UPS,mode) |
203-238Vac ± 5Vac | |||||||||
| Frequency | 50±0.1Hz (Batt. mode) | |||||||||
| Wave form | Pure sine wave (Batt. mode) | |||||||||
| Transfer time | < 10ms | |||||||||
| Battery (12V/24V) | ||||||||||
|
Charging Current(AC) |
10A/20A Max. | |||||||||
|
Charging Current(solar) |
PWM 50A(Max.) | |||||||||
|
Type of battery (Optional) |
GEL/sealed lead acid/open lead acid | |||||||||
| Physical | ||||||||||
| Net weight(kg) | 7.9 | 10.1 | 11.1 | 12.5 | Updating | |||||
|
Dimension (mm) |
310*307*120 | |||||||||
| Environment | ||||||||||
|
Operating Enviroment |
Temperature 0 ºC~40ºC Humanity 20%~90% |
|||||||||
| Noise level | ≤40dB(1m) | |||||||||
| RJ45/11&USB | Optional | |||||||||
Product specifications are subject to change without notice.
