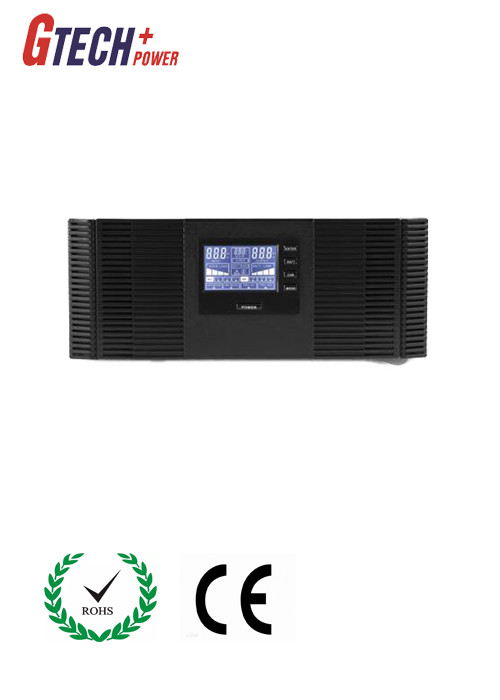

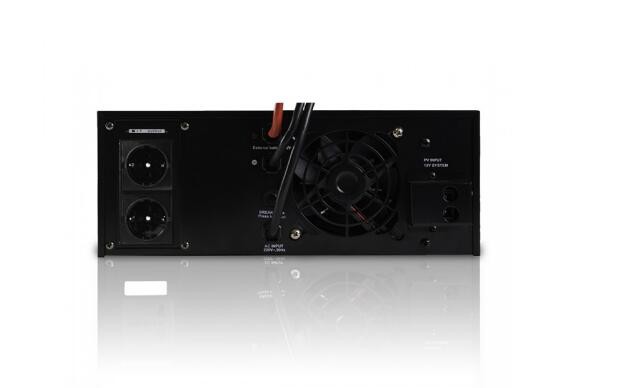

XLS Series Pure Sine Wave Hybird Inverter AC / Solar Power Input Home Application

XLS Series Pure Sine Wave Hybird Inverter AC / Solar Power Input Home Application

pure sine wave inverter home depot

pure sinewave inverters

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS/ISO

Model Number:

XLS

Contact Us
Request A Quote
Product Details
Colour:
Customized
Material:
Plastic
Application:
Home
Input:
AC/Soalr
Payment & Shipping Terms
Minimum Order Quantity
30PCS
Price
Negotiation
Packaging Details
Carton
Delivery Time
21-25 work days
Payment Terms
L/C, T/T
Supply Ability
100,000PCS
Product Description

XLS Series 500W-4000W Pure Sine Wave Home Inverters, 4-Step AVR, AC/Solar Power Charging



XLS series Inverter. A device for converting a direct current into an alternating current with a sinusoidal shape. It is most often used for the operation of household devices (220 VAC) from a car battery (12V). Inverters of this series have a built-in charging function for car batteries from the city network. Also widely used instead of UPS, with plug-in external batteries. The maximum total capacity of the connected batteries is not limited.


Feature:

*Pure sine wave inverter
*Built-in PWM controller inside
*4-step AVR
*Selectable input voltage range(100V-290V or 145-290V)for home appliances and personal computers
*Selectable high power charging current of 10A/20A Max(Optional)
*Selectable battery types of gel, lead-acid and open lead-acid battery
*Configurable AC/Solar input priority via LCD setting
*Compatible to mains voltage or generator output
*Auto restart while AC is recovering
*Overload and short circuit protections
*Smart battery charger design for optimized battery performance
*Cold start



Specification:

Model(Solar)



XLS-600



XLS-800



XLS-1000



XLS-1200



XLS-2000



XLS-3000



XLS-4000



XLS-5000



Capacity

600VA /

500W

800VA/

640W

1000VA/

800VA

1200VA/

1000W

2000VA/

1600W

3000VA/

2400W

4000VA/

3200W

5000VA/

4000W

Power factor                                             0.8
Input

Voltage range

(INV,mode)

100-290Vac ± 5Vac

Voltage range

(UPS,mode)

145-275Vac ± 5Vac
Frequency 45-65Hz
Output

Voltage range

(INV,mode)

150-255Vac ± 5Vac

Voltage range

(UPS,mode)

203-238Vac ± 5Vac
Frequency 50±0.1Hz (Batt. mode)
Wave form Pure sine wave (Batt. mode)
Transfer time < 10ms
Battery (12V/24V)

Charging

Current(AC)

10A/20A Max.

Charging

Current(solar)

PWM 50A(Max.)

Type

of battery

(Optional)

GEL/sealed lead acid/open lead acid
Physical
Net weight(kg) 7.9 10.1 11.1 12.5 Updating

Dimension

(mm)

310*307*120
Environment

Operating

Enviroment

Temperature 0 ºC~40ºC

Humanity 20%~90%

Noise level ≤40dB(1m)
RJ45/11&USB Optional

Product specifications are subject to change without notice.
