Place of Origin:
China
Brand Name:
GTECH OR OEM
Certification:
CE, ROHS
Model Number:
500VA~3000VA

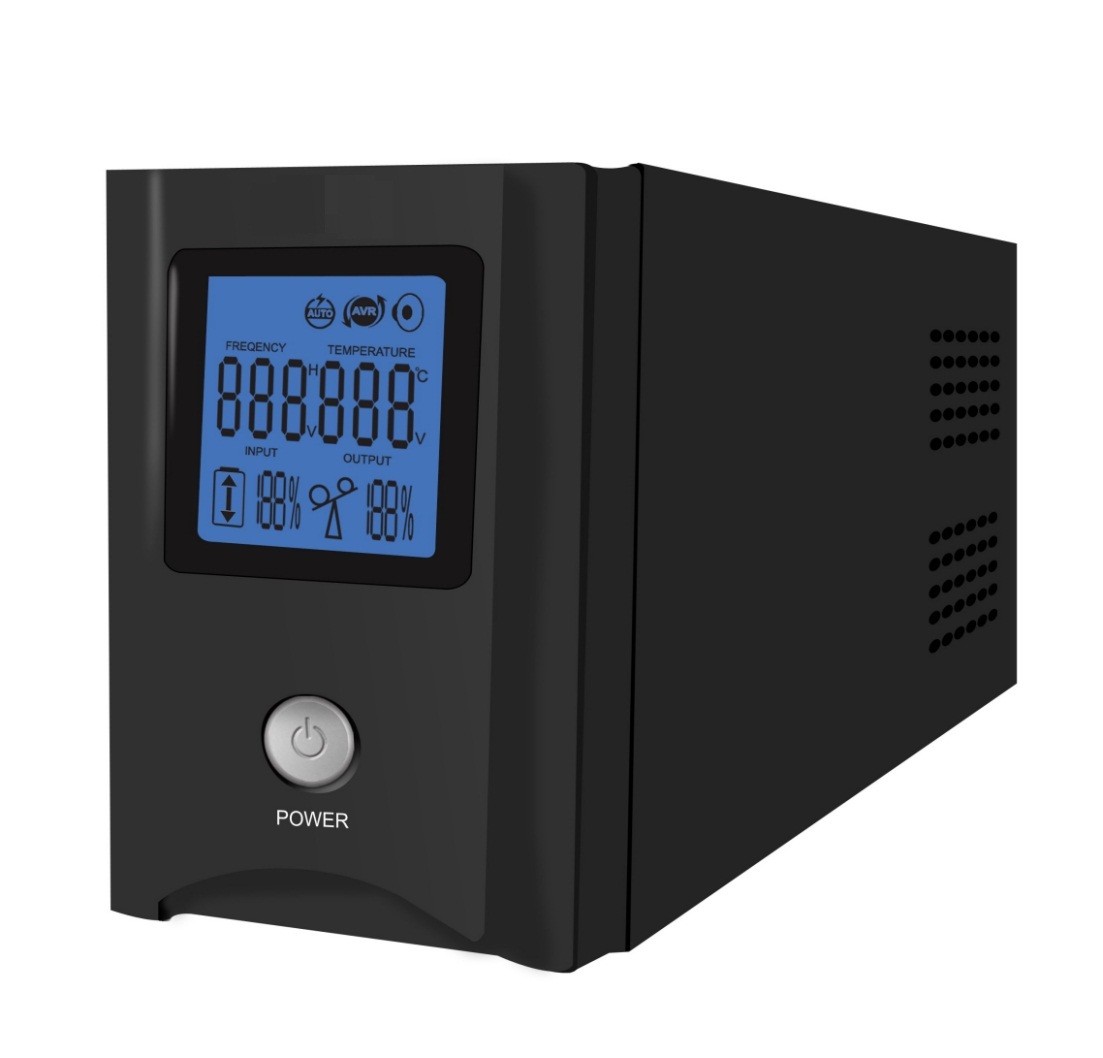

500VA 650VA 850VA 1000VA 1200VA 1500VA 2000VA 3000VA Modified Sine Wave Line Interactive UPS For PC with Wide input voltage range
Feature:
1. CPU controlled
2.Auto re-starts when AC recovers
3.Silence setup
4.Automatic charging (offline charging)
5.Battery low voltage protection
6.Overload & short circuit protection
7.Wide input voltage range
Application:
Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.
Specification:
| Model # | S-500 | S-600 | S-800 | S-1000 | V-1200 | V-1500 | ||
| Capacity | 500VA/300W | 600VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | ||
| AVR | No (can add) | 3 steps of AVR, CPU controlled | ||||||
| INPUT | ||||||||
| Input voltage range | 220V:175~265±5Vac | 220V:145~290Vac±5Vac | ||||||
| 110V: 90~132±5Vac | 110V: 85~150Vac±5Vac | |||||||
| Input frequency range | 50Hz / 60Hz (Auto sensing) | |||||||
| OUTPUT | ||||||||
| Output voltage range | 220V: 175~265±5Vac | 220V:200~255Vac | ||||||
| 110V: 90~132±5Vac | 110V: 102~132Vac | |||||||
| Output frequency (DC mode) | 50±0.5Hz / 60±0.5Hz | |||||||
| Wave form | PWM (DC Mode) | |||||||
| Transfer time | Typical 2~6ms, Max.10ms. | |||||||
| BATTERY | ||||||||
| QTY & capacity of battery | 1 pc*12V4.5Ah | 1 pc*12V7Ah | 1 pc*12V9Ah | 2 pcs*12V7Ah | 2 pcs*12V7Ah | 2 pcs*12V9Ah | ||
| Charging period | 4~6 hours recover to 90% capacity | |||||||
| PROTECTION & FUNCTION | ||||||||
| PROTECTION | 1. Battery low voltage protection 2. Overload protection 3. Short circuit protection |
|||||||
| FUNCTION | 1. Auto re-starts when AC recovers 2. Silence setup 3. Automatic charging (offline charging) |
|||||||
| MANAGEMENT | ||||||||
| RJ45/11 & USB | Refer to customers' requires. | |||||||
Factory Profile:
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
