Place of Origin:
China
Brand Name:
G-tech
Certification:
CE/RoHS/ISO
Model Number:
MPS Series
MP/MPS SERIES 1000W-6000W Solar Power Off-grid Pure Sine Wave Home Inverter, AC/Solar Input

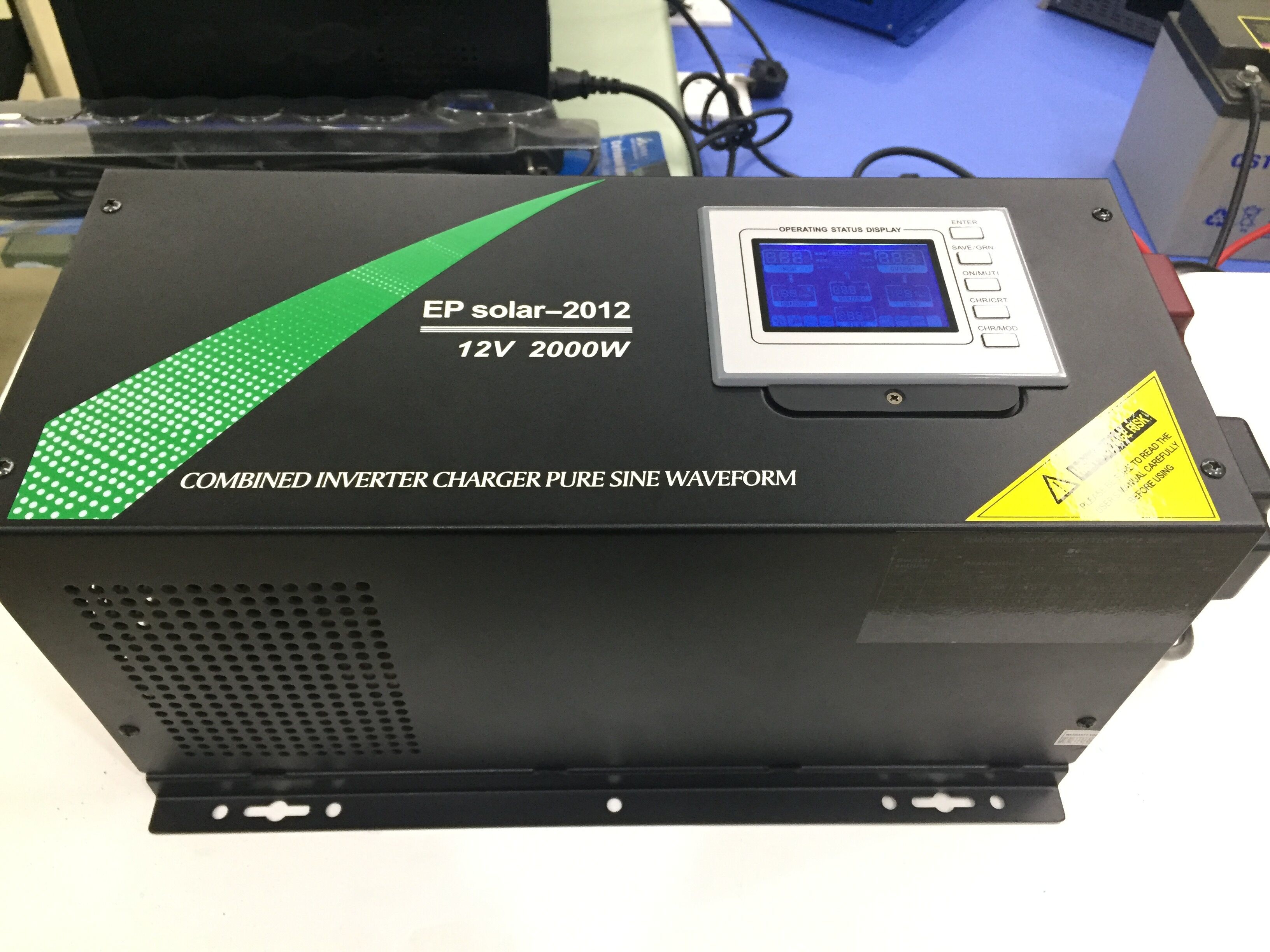

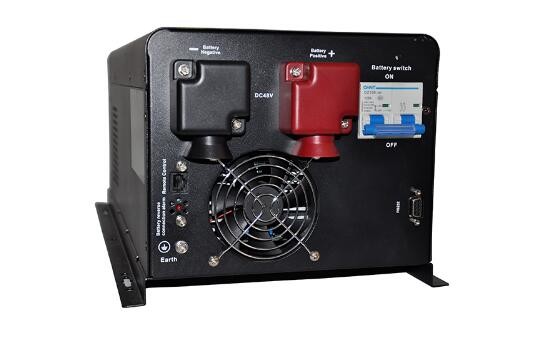

MPS Series 2000W, type2012, Solar Power Off-grid Pure Sine Wave Home Inverter, AC/Solar Input
2000W Pure Sine Wave Inverter With Short Circuit Protection, Solar Function, Solar power inverter, Home Soloar Power System
Specification:
|
Model |
MPS2012 |
| Real power | 2000W |
| AC MODE | |
| Input Voltage | 100~290 ± 5 Vac (INV.mode) |
| Input Voltage | 160~275± 5 Vac (UPS mode) |
|
Input Frequency |
45-65Hz |
| Output Voltage | 160~265 ± 5 Vac (INV.mode) |
| Output Voltage | 198~242 ± 5 Vac (UPS mode) |
| Efficiency | ≥96% (AC mode) |
| Inverter mode | |
| Capacity | 0.8A/19.2W |
| THD | <3% (linear load) |
| Output Voltage | 230Vac |
| Output Frequency | 50 ± 0.1Hz/60± 0.1Hz(Auto sensing) |
|
Output Wave form |
Pure sine wave |
| Tranfer time | < 10ms(typical) |
| Efficiency | ≥80% (battery mode) |
|
Overload Capability |
(100%<load<120%) ±10%:Auto shutdown in 2 mins (120%<load<140%) ±10%:Auto shutdown in 60 secs; (140%<load) ±10%:Auto shutdown in 20 secs |
| Overcurrent Protection | System shuts down automatically within 20ms |
| Short circuit protection | Yes |
| Battery | |
| DC voltage | DC12V |
| Battery type | 8 types of battery |
| AC charging Current | 5A/10A/20A/30A/45A(60A)Max |
| Solar charging current(MPPT) | 10A/20A/30A/40A/50A/60A |
| Enviroment | Temperature 0℃~40℃,Humidity 20%~90% |
| Noisy level | ≤ 40dB(1m) |
| Altitude | ≤ 1000m(Altitude exceeds 1000m, full power cannot reach) |
| NW.(kg) | 17.3 |
