Hybrid Solar Power System 600VA 5000VA Pure Wave Inverter

Hybrid Solar Power System 600VA 5000VA Pure Wave Inverter

5000VA pure wave inverter

Hybrid Solar pure wave inverter

600VA off grid solar inverter

Place of Origin:

China

Brand Name:

G-tech

Certification:

CE/RoHS/ISO

Model Number:

XL Series

Contact Us
Request A Quote
Product Details
Product Name:
Hybrid Solar Power System 600VA To 5000VA Pure Sine Wave Power Inverter
Application:
Home Appliances, Personal Computers
Input:
AC/Soalr
Protection:
Complete Protection Design
Type:
DC/AC Inverters
Output Waveform:
Prue Sine Wave
Output Frequency:
50Hz/60Hz
Warranty:
12 Months
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiation
Packaging Details
Carton
Delivery Time
21-25 work days
Payment Terms
L/C, T/T, Western Union
Supply Ability
10,000PCS
Product Description

Hybrid Solar Power System 600VA to 5000VA Pure Sine Wave Power Inverter

XLS Series 500W-4000W Pure Sine Wave Home Inverters, 4-Step AVR, AC/Solar Power Charging

Hybrid Solar Power System 600VA to 5000VA Pure Sine Wave Power Inverter

XLS series Inverter. A device for converting a direct current into an alternating current with a sinusoidal shape. It is most often used for the operation of household devices (220 VAC) from a car battery (12V). Inverters of this series have a built-in charging function for car batteries from the city network. Also widely used instead of UPS, with plug-in external batteries. The maximum total capacity of the connected batteries is not limited.

Feature:
*Pure sine wave inverter
*Built-in PWM controller inside
*4-step AVR
*Selectable input voltage range(100V-290V or 145-290V)for home appliances and personal computers
*Selectable high power charging current of 10A/20A Max(Optional)
*Selectable battery types of gel, lead-acid and open lead-acid battery

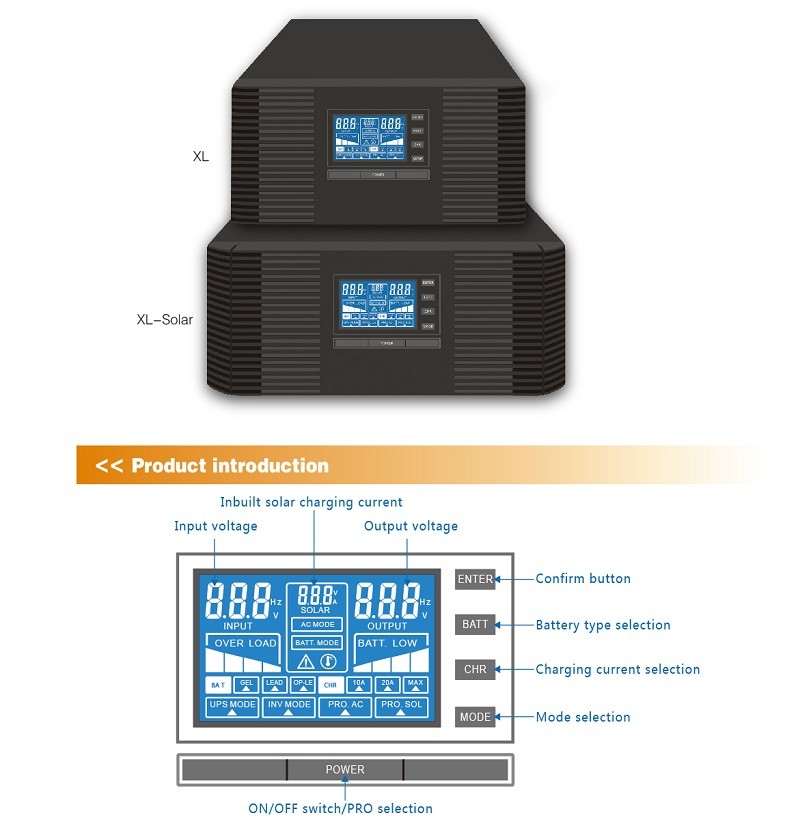

*Configurable AC/Solar input priority via LCD setting
*Compatible to mains voltage or generator output
*Auto restart while AC is recovering
*Overload and short circuit protections
*Smart battery charger design for optimized battery performance
*Cold start

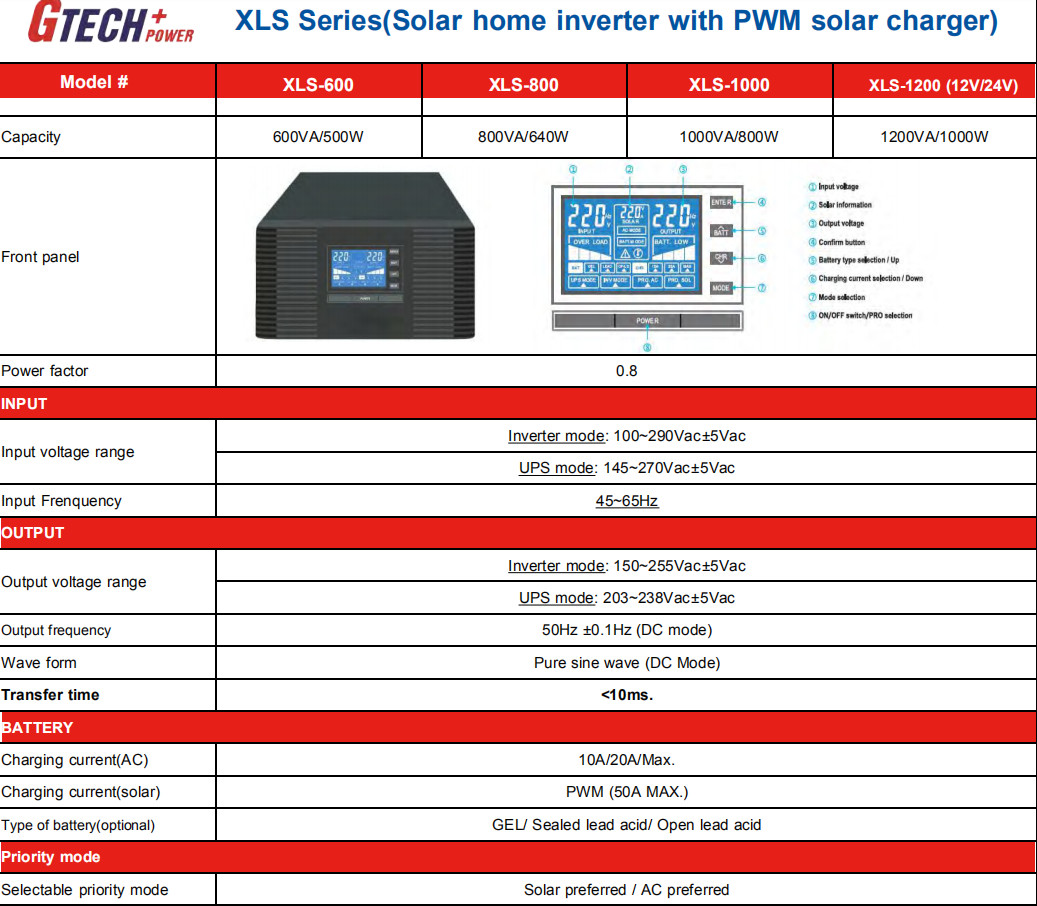

Specification:

Model(Solar)



XLS-600



XLS-800



XLS-1000



XLS-1200



XLS-2000



XLS-3000



XLS-4000



XLS-5000



Capacity

600VA /

500W

800VA/

640W

1000VA/

800VA

1200VA/

1000W

2000VA/

1600W

3000VA/

2400W

4000VA/

3200W

5000VA/

4000W

Power factor                                             0.8
Input

Voltage range

(INV,mode)

100-290Vac ± 5Vac

Voltage range

(UPS,mode)

145-275Vac ± 5Vac
Frequency 45-65Hz
Output

Voltage range

(INV,mode)

150-255Vac ± 5Vac

Voltage range

(UPS,mode)

203-238Vac ± 5Vac
Frequency 50±0.1Hz (Batt. mode)
Wave form Pure sine wave (Batt. mode)
Transfer time < 10ms
Battery (12V/24V)

Charging

Current(AC)

10A/20A Max.

Charging

Current(solar)

PWM 50A(Max.)

Type

of battery

(Optional)

GEL/sealed lead acid/open lead acid
Physical
Net weight(kg) 7.9 10.1 11.1 12.5 Updating

Dimension

(mm)

310*307*120
Environment

Operating

Enviroment

Temperature 0 ºC~40ºC

Humanity 20%~90%

Noise level ≤40dB(1m)
RJ45/11&USB Optional

Product specifications are subject to change without notice.
