Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE, ROHS, ISO, UL
Model Number:
GP33 Series

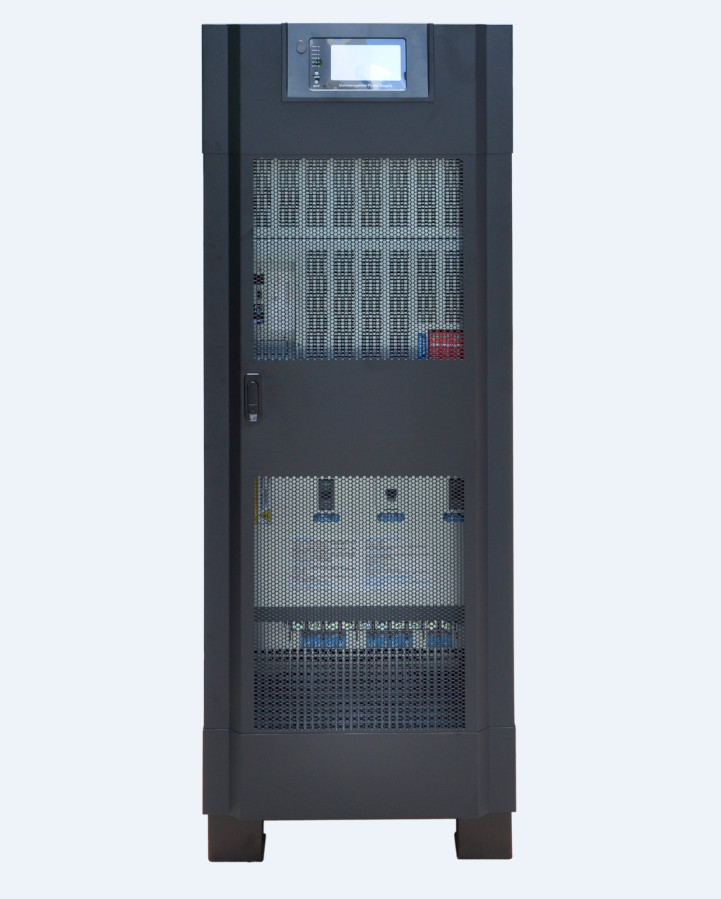

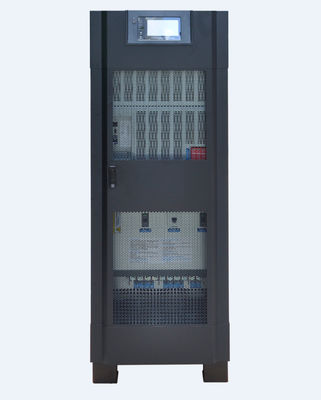

Three Phase Online UPS, 10KVA-300KVA IGBT DSP Double Conversion UPS, low frequency UPS, Uninterruptible Power Supply for data center, computer room, etc.
| Product Introduction |
| GP33 series is online double conversion UPS, with Isolated Gate Bipolar Transistors(IGBT) that performs excellent conversion of sinewave output from high frequency PWM inverter. The series is applicalbe to small and medium-sized data centers, network management center, computer rooms for enterprises, and able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic, distortion and frequency fluctuation, it guarantees to offerr safe and reliable power supply for any loads to users. |
Feature
1> High-efficient DSP chip
2> Outstanding electric property
3> Good looking and excellent hardware
4> N+1 parallel redundancy(compatible to battery share in the parallel mode)
5> Frontal-board operation and maintenance
6> Twin-channel line input
7> Remote monitoring
8> Intelligent management of battery charging and discharging
9> Flexible battery arrrangement
10> Flexible arrangement, change due to the need
11> Built-in lightning protection module
Specification

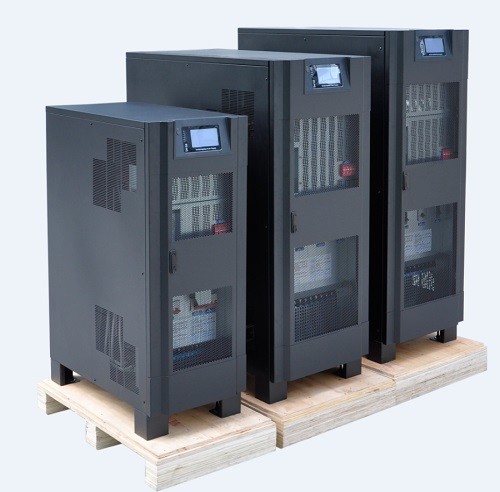

| MODEL | GP33-10-20KS | GP33-30-40KS | GP33-60-80KS | GP33-100-120KS | GP33-160-200KS | GP33-250-300KS |
| Capacity | 10/15/20Kva | 30/40Kva | 60/80Kva | 100/120Kva | 160/200Kva | 250/300Kva |
| UPS(L*W*D) | 402x660x880 | 412x813x1121 | 505x1060x1321 | 555x1060x1421 | 1043x1160x1748 | 1600x1182x1962 |
| Pack (L*W*D) | 505x800x1030 | 515x926x1270 | 603x1190x1486 | 653x1190x1586 | 1303x1180x2076 | 1760x1301x2168 |
| UPS weight (kg) | 153/168/194 | 223/256 | 382/434 | 535/580 | 1120/1320 | 1540/1745 |
| Temperature | 0℃~40℃ | |||||
| Humidity | 0~95% non condensate | |||||
| Noise | <60dB @1.5m from surface of unit | |||||
| Altitude | 1000m(height rises every 100m, power decreases 1%, maximum height is 4000m) | |||||
| Efficiency | Power saving mode>98%, Inverter>92%, AC-AC＞91% | |||||
| Transference | 0ms cutless | |||||
| Technology | True double-conversion online technology conversion performed by IGBT | |||||
| Input | ||||||
| Voltage | 3*220/380 vac ± 25% | |||||
| Frequency | 50Hz ± 15% | |||||
| Conductors | Three Phases + N + E | |||||
| Output | ||||||
| Voltage (selectable) | 3*220/380 vac ± 1% | |||||
| Frequency | 50Hz ± 0.1% | |||||
| Waveform | Pure sine wave generated by high frequency PWM inverter | |||||
| Harmonic Distortion | <2% Linear Load / <5% Nonlinear Load | |||||
| Crest Factor | 3:1 | |||||
| Power Factor | 0.8 or 0.9 | |||||
| Overload Recuperation | Automatic transfer to normal | |||||
| Voltage Regulation | Load balance: ± 1% | |||||
| Overload Capacity | 125% for 12 minutes/ 150% for 1 minute | |||||
| Conductors | Three Phases + N + E | |||||
| Battery | ||||||
| Type | Maintenance-free sealed lead-acid battery, 12V*32 batteries | |||||
| Full load autonomy | 3 to 15 minutes, extended-range capacity | |||||
| Typical recharge time | 4~8 hours, 90% | |||||
| Battery behavior | Autotest, Transfer Point Adjustable battery and alarm setting | |||||
| Battery protection | Fuse protection, battery switch, temperature compensation, regular inspection, software protection, overvoltage tripping. | |||||
| Rectification | Software protection, input switch, over current protection, temperature protection. | |||||
| Protection | ||||||
| Hardware protections | Breaker for input, output, battery and bypass. Fast acting fuses in DC, fans, redundant power supplies, temperature sensors, on-o switch and audible alarms. | |||||
| Bypass | Static solid state, automatic and manual operation without interruption for maintenance. External Bypass(optional) | |||||
| Emergency switch | Remote and/or local EPO | |||||
| Supervisory control and communication | ||||||
| Frontal panel | Interactive LCD display(Touchscreen) | |||||
| Alarms | Audible and visual alarm for abnormal conditions | |||||
| Communications | RS232, SNMP-RJ45, GPRS (RS232 & RJ45 standard, the other is optional) | |||||
